Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient
US$ 1 - 1
/ Set
1 Set(Min. Order)
- Shenzhen/Shanghai/Hongkong
- Credit Card
You May Like
-
2016 Upgrade Bga Rework Station With Automatic Mounting and Removing LED System
-
High Definition Monitor Hot Air Heater Independent With LCD Display Solder Bga Machine
-
IC Replacement Machine for Iphone and Laptop Chips Repair With High Performance
-
Hot Sale Used Mobile Phone Repair for BGA/VGA/QFN Reballing Station SV550
-
Repair Desktop/laptop Motherboard Bga Rework Station Automatic Soldering Machine
-
Shuttle Star SMT Pick and Place Machine RV-SV560A Automatic Bga Rework Station
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shuttle Star | |
| Model Number | SV560A | Voltage | 220V, 220V | |
| Current | 10A | Rated Capacity | 6kw | |
| Rated Duty Cycle | 100% | Dimensions | L746*W710*H820mm | |
| Weight | 90kg, 90kg | Usage | BGA Rework | |
| Certification | ISO9001:2008, ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Infrared bga rework station motherboard repair for iphone with high efficient
Main Features
1.Fully automatic optical alignment machine
2.Upper hor air heater head and mounting head 2 in 1
3.Large movable bottom IR bottom heating area
4.Touch screen operation interface
5.LCD display-HDMI 1070P optical alignment imaging
Product Description
Parameters
Applicable PCB Size:W20mm*D20mm ~ W550mm*D500mm
Applicable BGA Size: 1mmX1mm ~ 80mmX80mm
PCB Thickness:0.5~4mm
Max BGA Weight:80g
Upper heater(Hot Air):800W
Lower heater(Hot Air):1200W
Bottom Preheat IR heater:3600W
Temperature Control: K-type Thermocouple ,Close Cycle Controlled
Placement Precision:0.01mm
Min pitch of BGA Ball:0.15mm
Machine Dimension:L720mm*W705mm*H860mm
Machine Weight:70KG
Power supply: AC 220V 5.6KW

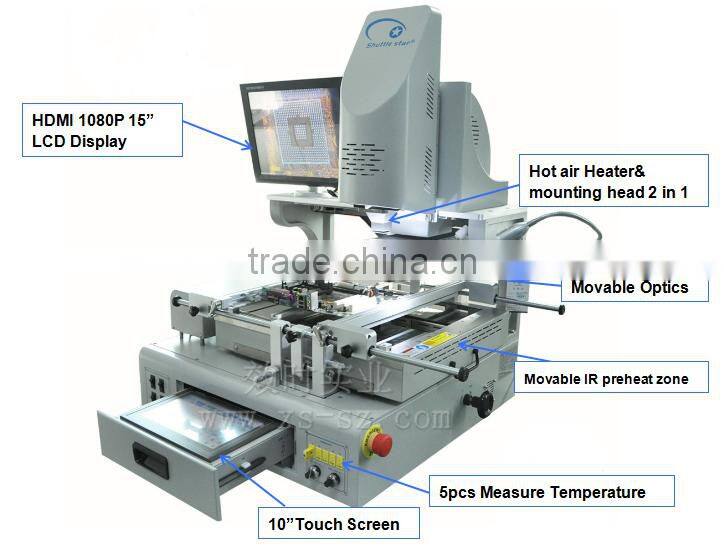

Structure Illustration
Three heaters heating independently

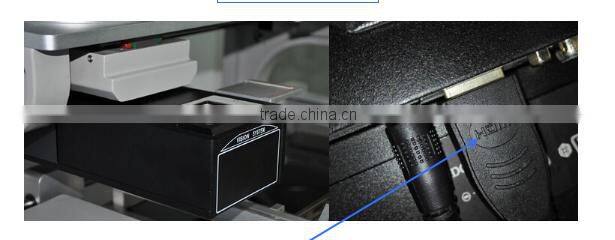

Movable Optics
HDMI Digital Imaging 1080P technology

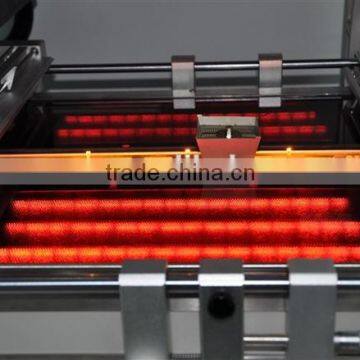

IR wave gilding heater plate with high temperature glass

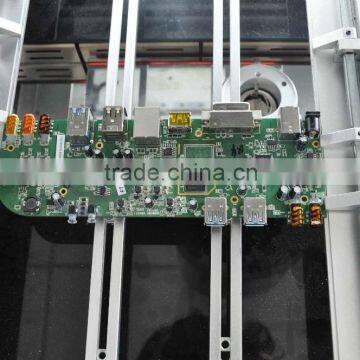

Flexible PCB jigs , easy to fix
Touch screeng digital display
More specifications
1. Hot air heater head and mounting head are designed 2 in 1, have both the auto soldering and mounting
function;
2. Three heaters( top/spot hot air heater, bottom IR heater) heating independently, with auto protection
function while heating abnormally ,time and temperature can be displayed digitally on touch screen;
3. Top heating system and cooling system are designed 2 in 1, temperature controlled accurately and evenly.
4. Bottom heater is IR wave gilding heater plate, with high temperature glass, temperature increasing and
decreasing rapidly; profile setting accurate to protect the PCB from deformation, easy to solder, energysaving
and environment friendly.
5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
6. Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration
detection device; with auto focus and software operation function,1.3 million pixel high-definition camera.
7. 15’’ high-definition LCD monitor.
8. Both top and spot hot-air heating head can move Z axis automatically, Optical vision system can move
along with X,Y axis automatically, install damping device ,easy operation.
9. Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table
flexibly, the max PCB size it can handle up to 550*500mm;
10. Embedded industrial computer, touch screen interface, PLC control, real-time temperature curve display,
able to display temperature curves and practical curves as the same time: can analyze the practically-
tested profile, and compare them with the history saved profiles;
11. Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
12. 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
unlimited in the industrial computer;
13. Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range ;
14. Big size splint, equipped with deformation-proof supporting device, suitable for the accurate rework of all
kinds of PCB;
15. This product has patents: ( heating apparatus ZL 2009 2 0262216.X utility model; 2. top heater
component t ZL 2009 2 0162612.5 utility model; 3.suction nozzle device ZL 2007 2 0127185.8 utility
model; 4. top heating apparatus ZL 200910238919.3 inventive patent.)
BGA reballing tools
Company Information
Company Information
Our Customers
Some customers from aborad came to see our showroom and factory
Our Services
Our service
1.Warranty : one year
2. Payment terms: Bank transfer, west union, T/T, Paypal,etc for you choose
3.24 hours online
4.Shipping by air or sea,international express ,DHL,UPS,Fedex,etc
Packaging & Shipping
Packaging
Thanks for your time!
Contact Us
- Shenzhen Shuttle Star Industrial Co., Ltd.
- Contact nameLilly Lee Chat Now
- Phone86-755-27513884
- Address10F.Beifang Junyi Industrial Park,Xingwei Crossing,Fuyong district,Bao An,Shenzhen, Shenzhen, Guangdong
