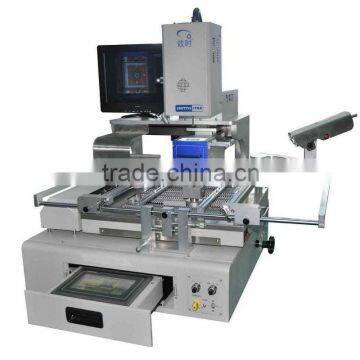

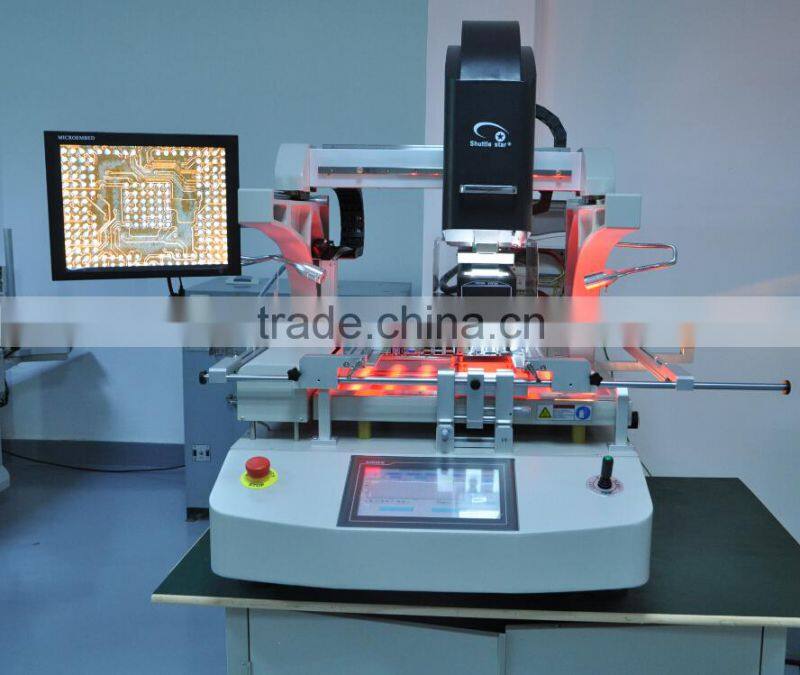

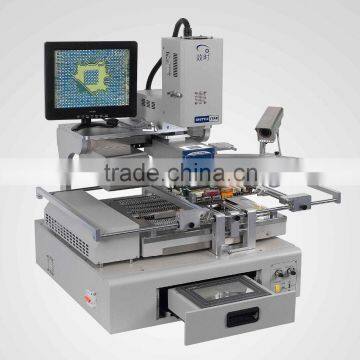

Shuttle Star RW-SV560A Semi-auto Welder Machine Bga Rework Station Dh-5830

Shuttle Star RW-SV560A semi-auto welder machine bga rework station dh-5830

1) Top hot air heater

2) Bottom hot air heater

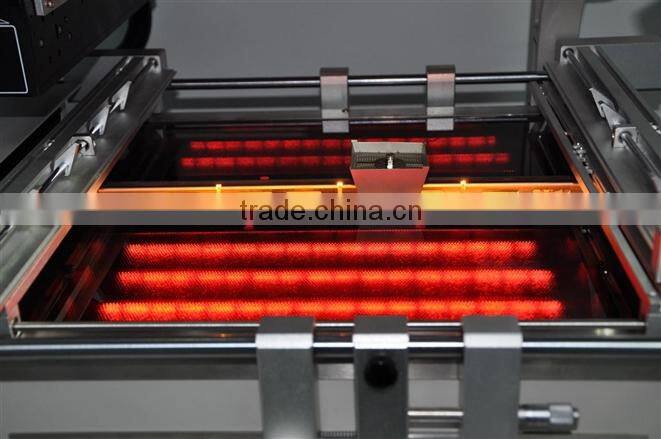

3) Bottom IR preheat - Prevent PCB board deforming ,and we use import IR wave gilding heater plate with high temperature glass,temperature increasing and decreasing rapidly ,it can protect PCB board from   deformation and ensure repair effect .

Auto function:

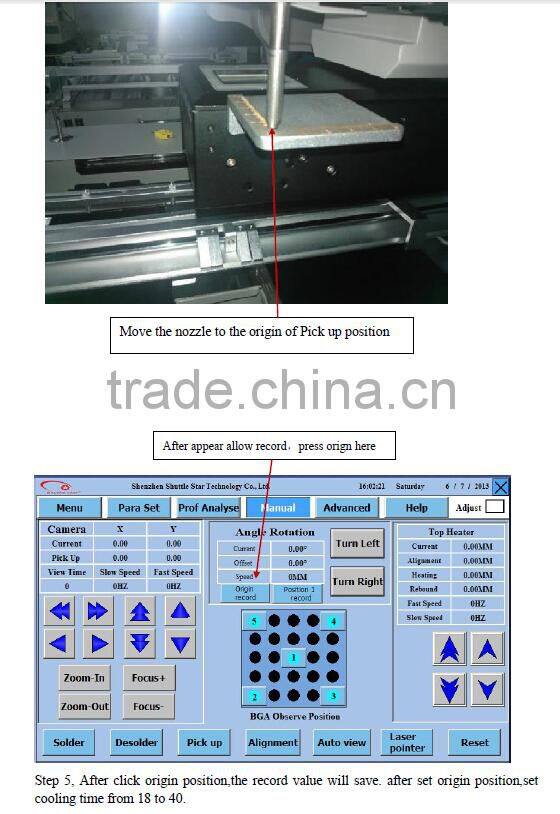

auto pick-up,auto soldering,auto desoldering and auto placement function - PLC control

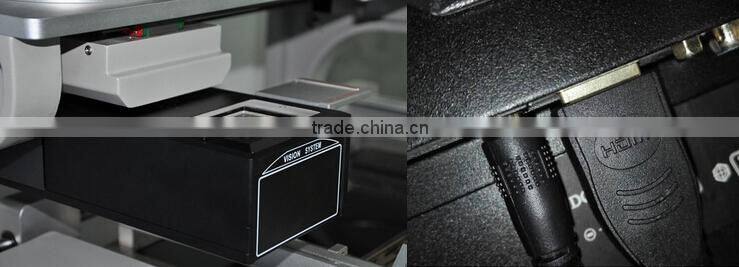

HD color optical camera system: -

1) Split vision

2) Zoom in/out and micro-adjust

3) Equipped with aberration
4) Detection device

5) With auto focus and software operation function

The other :

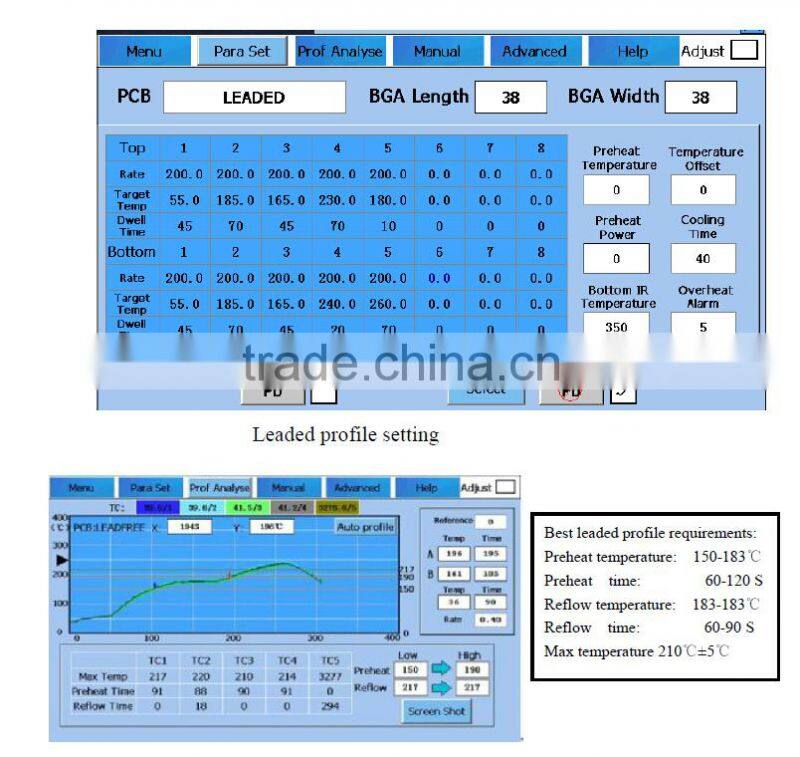

1) Embedded industrial computer, touch screen interface, real-time temperature curve display,able to display temperature curves and practical curves as the same time: can analyze the practically-tested
profile, and compare them with the history saved profiles;

2) Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;

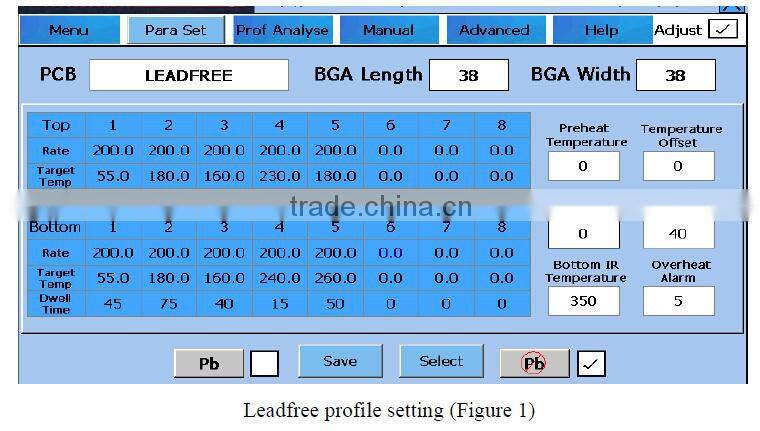

3) 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
unlimited in the industrial computer;

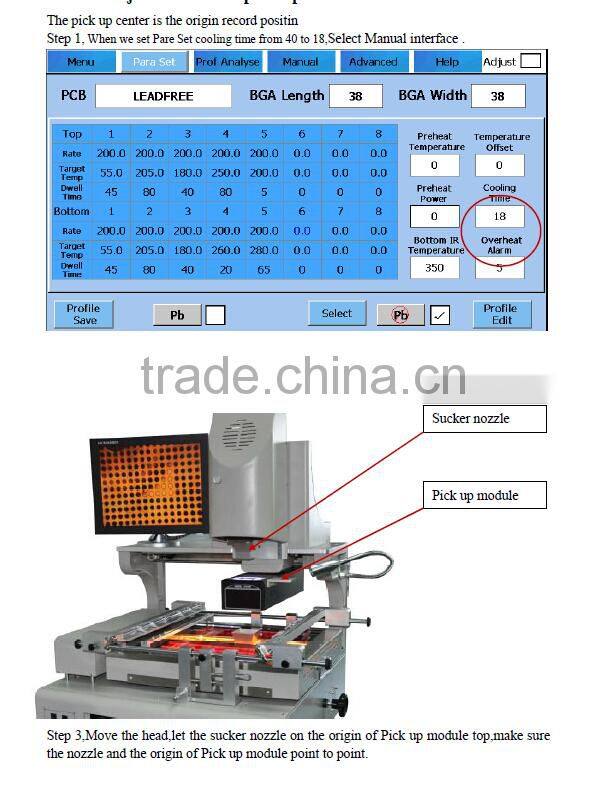

4) Suction nozzle can identify material and mounting height automatically, and can control the air
pressure within a small range ;

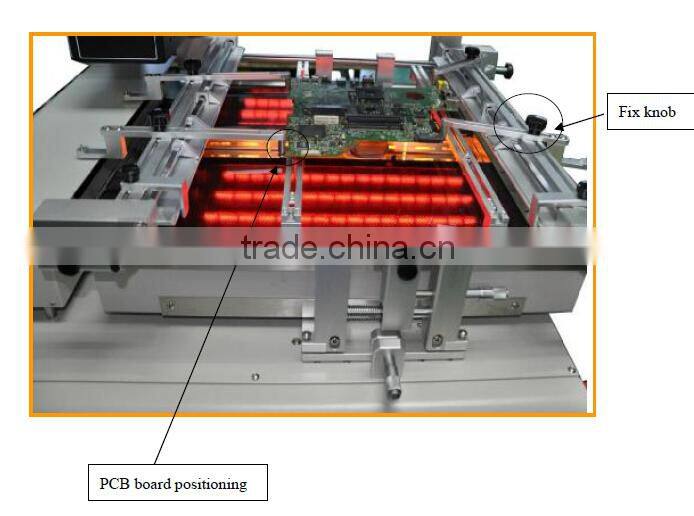

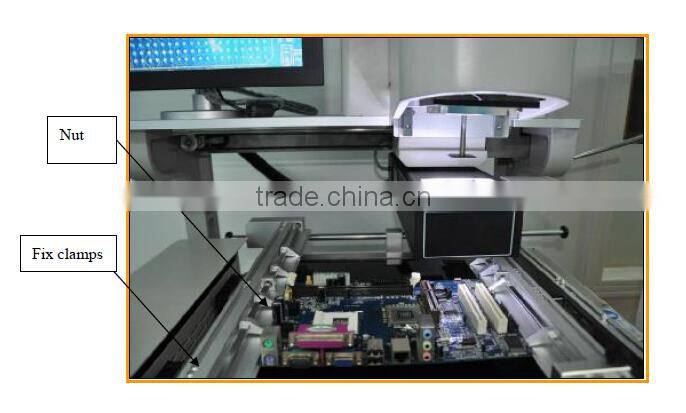

5)  Big size splint, equipped with deformation-proof supporting device, suitable for the accurate rework of all kinds of PCB;

This product has patents:

A. top heating apparatus ZL 2009 2 0262216.X utility model;

B. top heater component t ZL 2009 2 0162612.5 utility model;

C.suction nozzle device ZL 2007 2 0127185.8 utility model;

D.top heating apparatus ZL 200910238919.3 inventive patent.)

wooden box package

Free shipping in mainland

1. Shuttle Star built in 2000, we are the first factory to do China-made BGA rework station in mainland,

and most of our staff have more than 5 years experience in Shuttle star company ;

2. Our factory past ISO

3. We have lots of patents.

4. We offer good quality and good technology to the world.our price is not cheap,but our service is very cheaper .

5. Our customer and approved  certification
