mv medium voltage switchgear
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Aubo | |
| Model Number | AMVS |
Product Description
We Provide all Kind of Customiztion for Switchgear

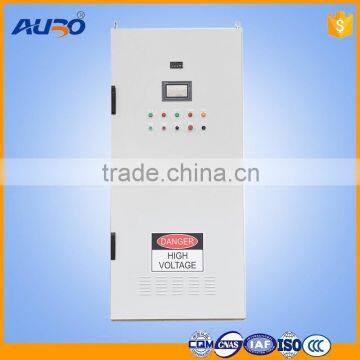

AMVS soft starter panel main features:
- Controlled by internal microcomputer and PLC
- With colored HMI touch screen, English or Chinese Text
-Solid state product backed by MV power electronic devices and modern control technology
-The constitution
AMVS is mainly composed of MV SCRs ( silicon controlled rectifier) , vacuum contactor, signal sampling circuit, trigger circuit, power driver circuit, main control board, optical fiber isolation signal cables, secondary relay control circuit, enclosure and other parts.
-How does it work?
The initial voltage of starting can be set flexibly according to the actual situation and demand of the equipment. The lowest set point is 15% of the supply voltage, the highest is 90%.Thus the motor has a larger starting torque and smaller starting current which reduces the requirement of power grid capacity required by equipment operation and saves the investment of related equipment. It reduce the impact stress to motor itself and to the machinery which can prolong the service life of motor and the machinery.
AMV-S Part Number & Rating (V06, V10 means 6kv, 10kv respectively) | |||||
| Type | Current(A) | (KW) | Type | Current(A) | (KW) |
| AMV -SV06-500 | 60 | 500 | AMV-SV10-0500 | 37 | 500 |
| AMV -SV06-560 | 67 | 560 | AMV-SV10-0560 | 41 | 560 |
| AMV -SV06-630 | 75 | 630 | AMV-SV10-0630 | 46 | 630 |
| AMV -SV06-710 | 84 | 710 | AMV-SV10-0710 | 51 | 710 |
| AMV -SV06-800 | 95 | 800 | AMV-SV10-0800 | 57 | 800 |
| AMV -SV06-900 | 106 | 900 | AMV-SV10-0900 | 64 | 900 |
| AMV -SV06-1000 | 118 | 1000 | AMV-SV10-1000 | 71 | 1000 |
| AMV -SV06-1120 | 132 | 1120 | AMV-SV10-1120 | 79 | 1120 |
| AMV -SV06-1250 | 146 | 1250 | AMV-SV10-1250 | 88 | 1250 |
| AMV -SV06-1400 | 164 | 1400 | AMV-SV10-1400 | 98 | 1400 |
| AMV -SV06-1600 | 185 | 1600 | AMV-SV10-1600 | 112 | 1600 |
| AMV -SV06-1800 | 220 | 1800 | AMV-SV10-1800 | 127 | 1800 |
| AMV -SV06-2000 | 229 | 2000 | AMV-SV10-2000 | 141 | 2000 |
| AMV -SV06-2240 | 251 | 2240 | AMV-SV10-2250 | 157 | 2250 |
| AMV -SV06-2500 | 281 | 2500 | AMV-SV10-2500 | 175 | 2500 |
| AMV -SV06-2800 | 324 | 2800 | AMV-SV10-2800 | 195 | 2800 |
| AMV -SV06-3150 | 363 | 3150 | AMV-SV10-3150 | 230 | 3150 |
| AMV -SV06-3550 | 428 | 3550 | AMV-SV10-3550 | 259 | 3550 |
| AMV -SV06-4000 | 482 | 4000 | AMV-SV10-4000 | 290 | 4000 |
| AMV -SV06-4500 | 542 | 4500 | AMV-SV10-4500 | 326 | 4500 |
| AMV -SV06-5000 | 602 | 5000 | AMV-SV10-5000 | 362 | 5000 |
| AMV -SV06-6000 | 723 | 6000 | AMV-SV10-5600 | 405 | 5600 |
| AMV -SV06-7000 | 844 | 7000 | AMV-SV10-6300 | 455 | 6300 |
| AMV -SV06-8000 | 964 | 8000 | AMV-SV10-7100 | 512 | 7100 |
Click Here to Cantact the Factory for More Information
BACK HOME
1, ≤22KW products use cartons
2, 30kw~132KW products use small wooden boxes
3, ≥160KW products use large wooden boxes
We have several transport options for customer to choose:
1, Transport by sea
2, Transport by truck
3, Transport by train
4, Transport by express service
5. Transport by air, (to be confirmed )
1,We can design the job for your specs or your project
2,We provide site commissioning on demand
1.Delivery term: FOB, CIF,EXW are available.
2.Payment term:30% down payment, 70% before dispatching
3.Production lead-time: 1-2 weeks
4.Shipping lead-time: 3-4 weeks
5.Logistics: competitive forwarder with good price, reliable partner of long time cooperation
