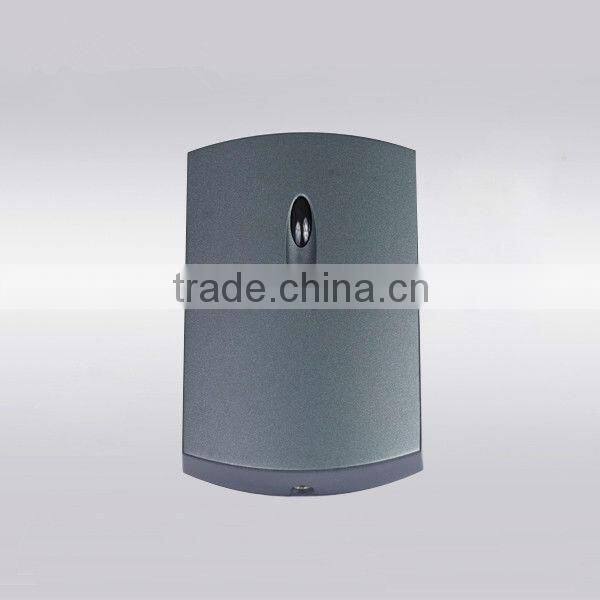

High Quality Card Reader for Access Control
- Ningbo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FStech id smart card reader | |
| Model Number | RD-03 id smart card reader |
Product Description
Card reader for access control Description
Card reader for access control , it is a device to work with networking access control system and single door access control system.
Our card reader has two types: ID card reader and M1 card reader. This is proximity card reader is Weigand 26 output.
Card reader for access control Specification
Proximity smart card reader:
1.Wiegand 26 output
2.Non-touch rfid card reader
3.Proximity IC card reader
4.High sensitivity
Card reader for access control Technicals
| Specification | ID WG 26 | ID WG 26 |
| Working Current | DC 12V | DC 12V |
| Working Voltage | 50mA / 30mA | 50mA / 30mA |
| Working Frequency | 125KHz ± 1 KHZ | 13.56MHz ± 5 KHz |
| Support Standard | / | SO14443A-2 |
| Card Reading Time | 120mS | 20mS |
| Support Card Operation | Read card series number | Read card series number |
| Communication Interface | WG 26 | WG 26 |
| Compatible Card | EM4001 & compatible card | M1 card & Ultralight |
| Card Reading Distance | 80~180mm | 40~80mm |
| Equipment Protection | power supply short circuit protection, wire anti high voltage, up to DC15V | power supply short circuit protection, wire anti high voltage, up to DC15V |
| Data Transfer Distance | > 70m | > 70m |
| Working Temperature | 0°c~60°c | 0°c~60°c |
| Storage Temperature | -20°c ~80°c | -20°c ~80°c |
| IP Rating | IP65 waterproof dustproof | IP65 waterproof dustproof |

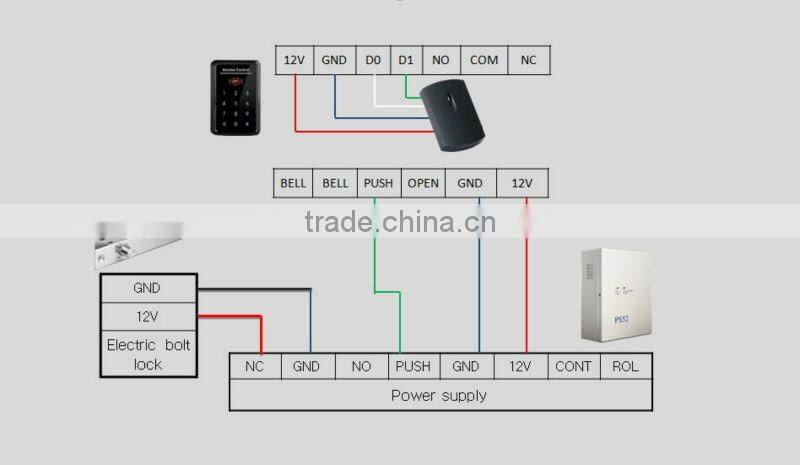

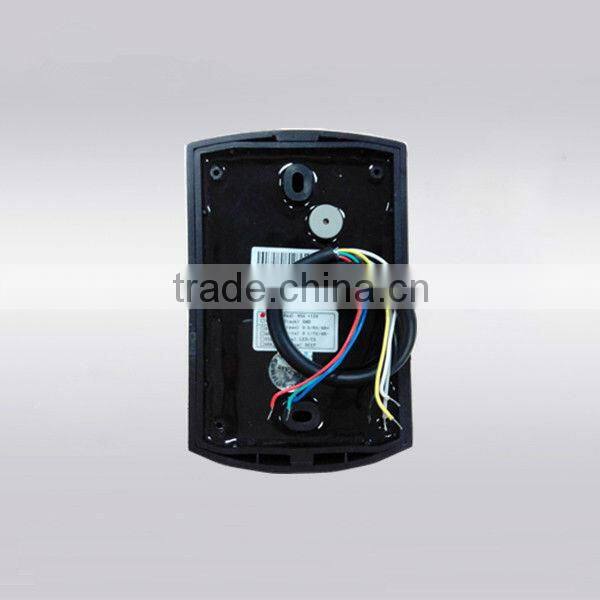

Card reader for access control Wiring
| Wire color | ID WG 26 | ID WG26 |
| Red Wire | VCC of power supply | VCC of power supply |
| Black Wire | GND of power supply | GND of power supply |
| Green Wire | DATA 0 WG data wire | DATA 0 WG data wire |
| White Wire | LED wire | LED wire |
| Yellow Wire | DATA 1 WG data wire | DATA 1 WG data wire |
| Blue Wire | Buzzer wire | Buzzer wire |
| Grey Wire | WG26 wire or GND wire | WG26 wire or GND wire |


Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union; For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX, TNT or EMS express. It usually takes 3-7 working days depending on the countries deliver to.
We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product quality.
