Product Details
| Brand Name | YUKAI | Place of Origin | China | |
| Model Number | YND-E02A |
Product Description

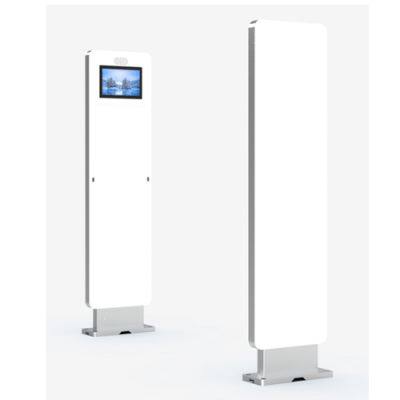

YND-E02A High-Performance UHF Channel Gate
The YND-E02A is a high-performance UHF channel gate designed with an advanced reading/writing engine, fully supporting electronic tags compliant with the EPCglobal C1 Gen2 ISO 18000-6C standard. It is widely applicable in logistics, access control, apparel, retail, warehousing, anti-counterfeiting, smart manufacturing, and other RFID systems.
Product Image
(Image placeholder)
Product Features
· High Recognition Rate: Exceptional multi-tag reading capability with ultra-low miss/error rates.
· Unique Antenna Design: Narrow horizontal beam coverage ensures accurate detection with no blind spots.
· Multi-Function Alarm: Built-in alarm light and buzzer with sensitive triggering for reliable security alerts.
· Customizable: Stylish appearance with customizable panel patterns/content.
· Durability: Infrared-triggered reading significantly extends device lifespan.
· Data Communication: Integrates with backend systems to provide diverse statistical insights.
Product Specifications
Physical Parameters
Model | YND-E02A |
Material | Panel: Engineering plastic; Body: Aluminum alloy |
Appearance | Default: Beige + Silver-gray |
Dimensions | 371mm (L) × 57mm (W) × 1505mm (H) |
LED Light Bar | Default: Dual-color (red/green); Optional: RGB |
Infrared Sensors | 2 pairs |
Installation | Tool-free, includes stainless steel cable duct |
Performance Parameters
Operating Frequency | 865–868MHz / 902–928MHz (adjustable per region) |
Output Power | Software-adjustable (±1dB step, max 33dBm) |
Tag Buffer Capacity | 10,000 tags (@96-bit EPC) |
Operating Modes | Master-Slave / Standalone / Trigger Mode |
RSSI Detection | Supported |
Power Consumption | 5W–24W |
Screen | 10.1-inch capacitive touch (1280×800 resolution) |
OS | Android 11 |
CPU | RK3568 |
Storage | 4GB RAM + 16GB ROM |
Network Protocols | TCP/IP, DHCP, SSH, FTP, Telnet, UDP |
Power Supply | Adapter: AC 100–240V/50–60Hz → DC 12V/5A; DC 12–24V/5A |
Communication Protocols | RS-232, TCP/IP, Wi-Fi |
Hardware Interface | RJ45 |
Development Languages | C#, Java, Android |
Reader Modes | Master-Slave / Standalone / Trigger Mode |
Environmental Parameters
Operating Temperature | -10°C to +50°C |
Operating Voltage | AC 220V ±10% |
