Door Lock Energy Saving Switch With Room No. Indentification Functionrfid Energy Saver Switch
- NingBo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FStech | |
| Model Number | ESA-R |
Product Description

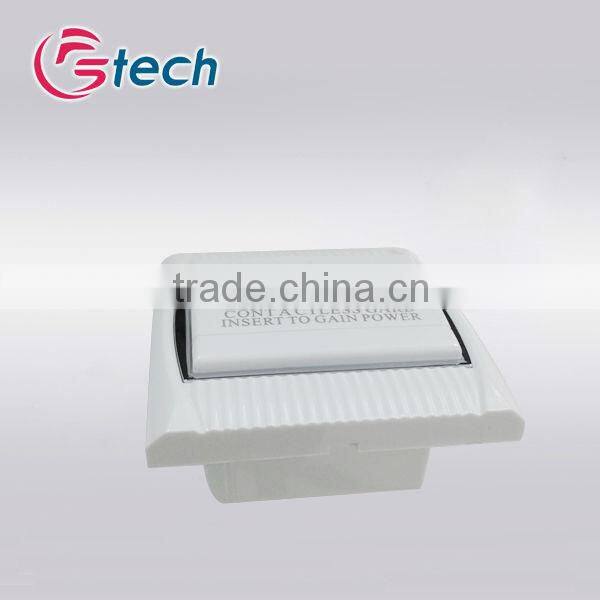

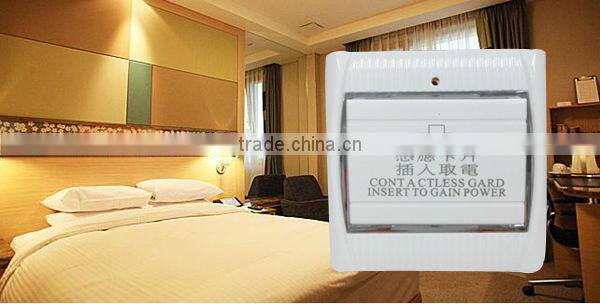

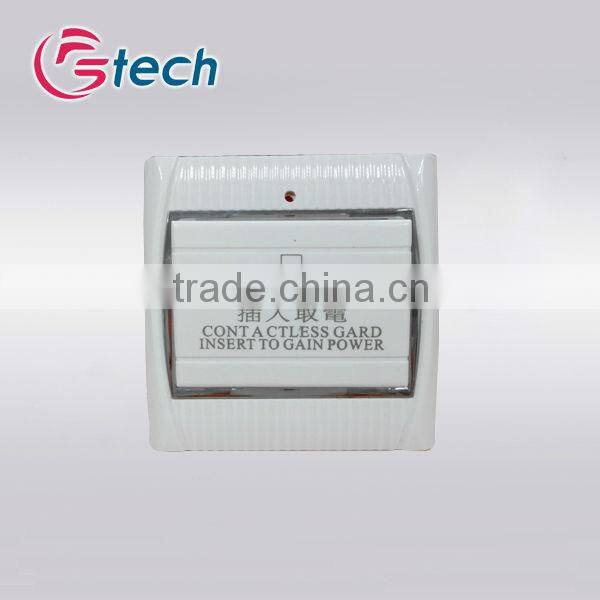

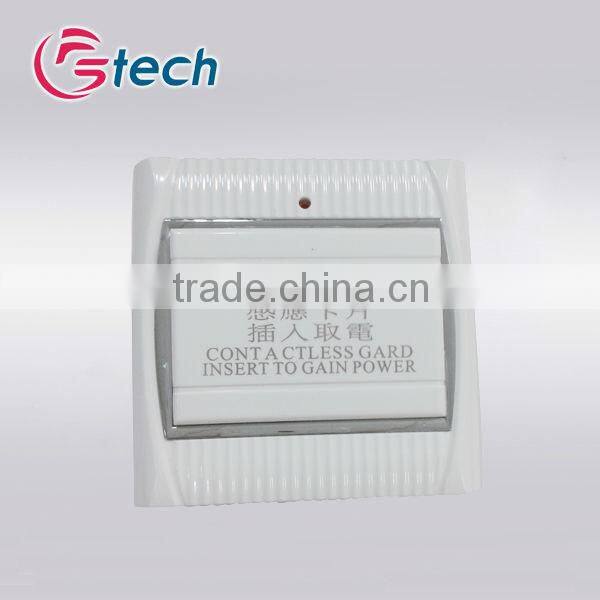

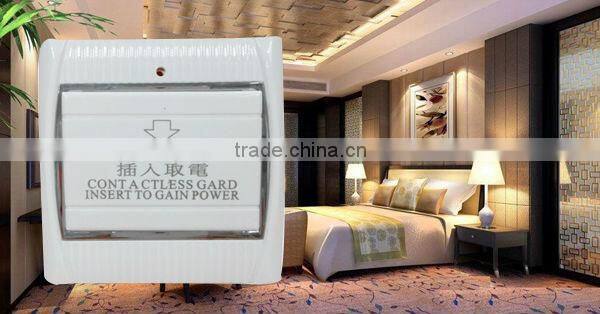

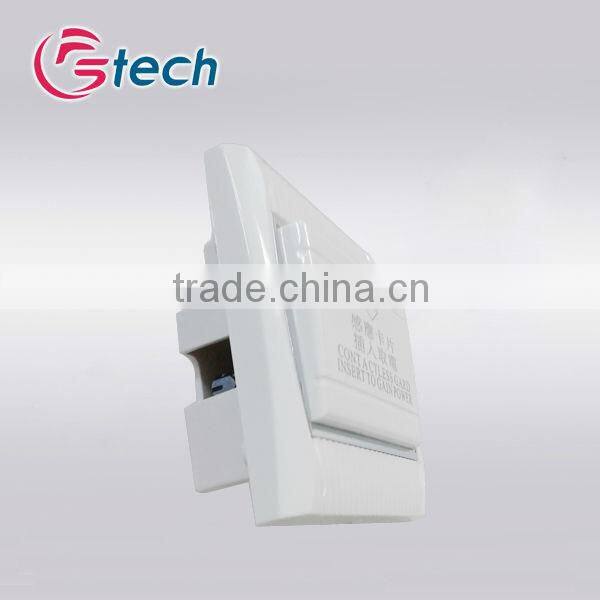

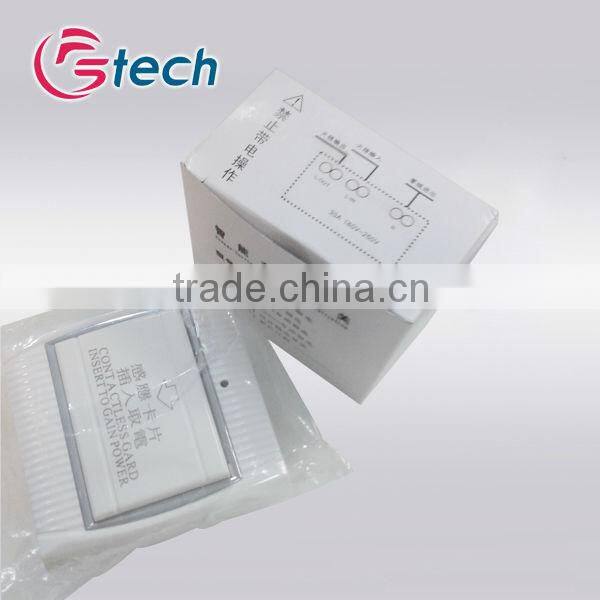

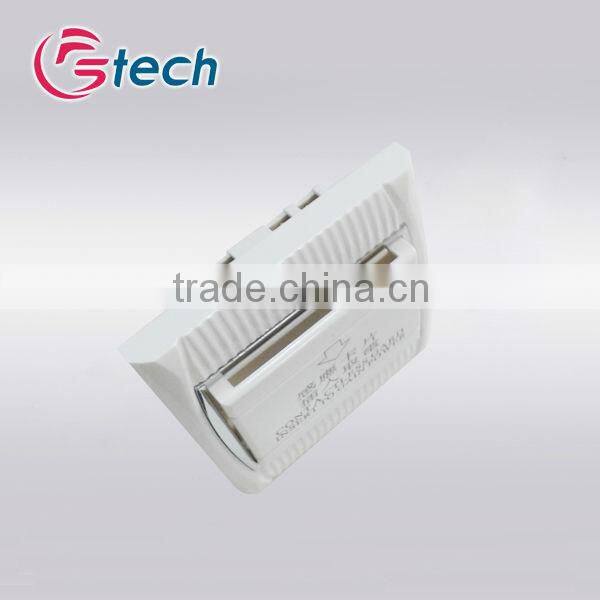

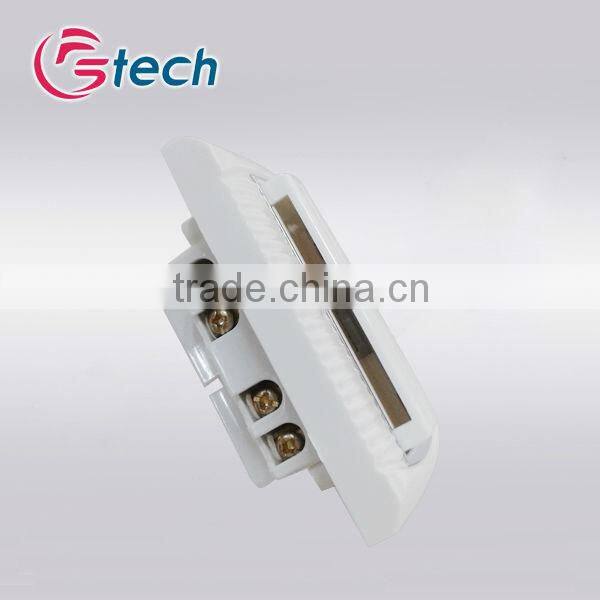

Hotel power card switch description:
Intelligent insert card for power energy saving switch adopts general card for power, it is energy
saving .Intelligent insert card for power energy saving switch is installed on the wall beside the
door of guestroom. When people come, insert the card for power, it will instantly connect the
main power, all the appliances (light,air-condition,television,etc.) of the room can work. When
people leave, take away the card, energy saving switch will be Automatic Power Off within 15
delay seconds. It is energy saving and safe. if you need power again, just reinsert the card.
Hotel power card switch advantages & features:
1. PC panel, magnificent appearance
2.LED indicator keep pace with modern hotel and convenient to customer for night operation
3.When people leave ,taking out the card, the main power will be automatic off in 15 seconds,
it is convenient and safe
4.Easy to install, no-disturbing mode, top safety
5.long service life

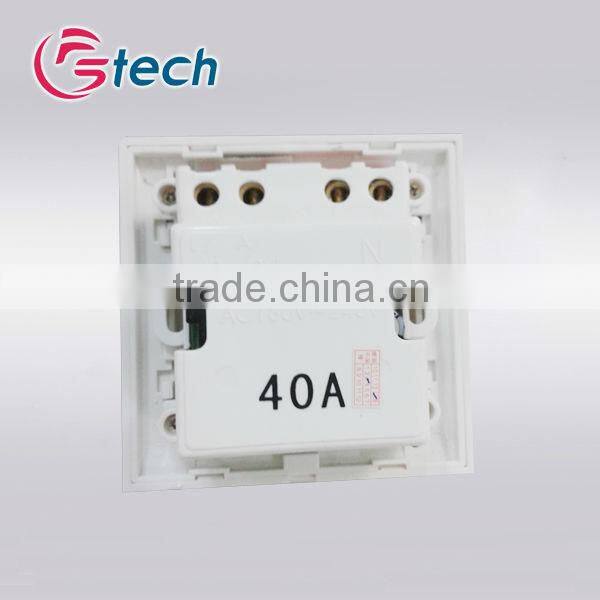

Hotel power card switch technical parameters :
Type | ESA-R |
Voltage range | 180-240V |
current range | 40A |
Size | 86*86 mm |
Warranty | One year |
Shell material | PC |
Card Type | TEMIC / M1 Card |
Facial color | White |
Mechanical Life | 100,000 times |
Delay | 15S |
|
|

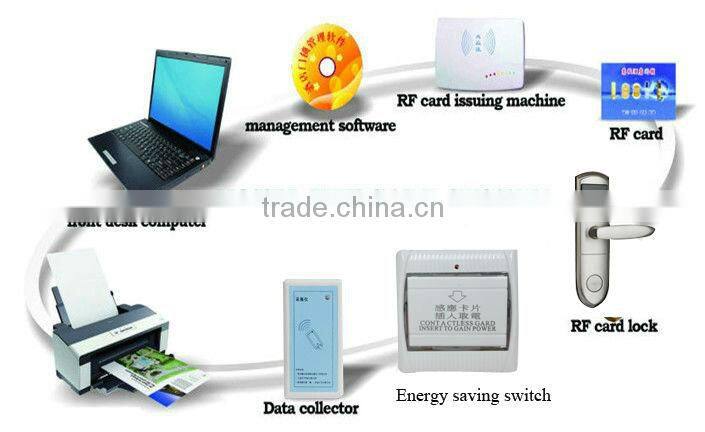

Hotel power card switch system composition:
Normally this system is composed of the bellowing parts:
1.Energy Saving Switch (qty = guest room)---To get the power
2.Card Encoder (1pcs/hotel) ---For issuing all kinds of cards
3. Lock (qty = guest room)---For open the door
4.Cards -----For open the lock
5.Data collector (1pcs/hotel, optional by customers)---For getting the time and times of the
entrance information from the lock
6.Self developed software (1 disk, free of charge)---For setting the program the whole system.
Hotel power card switch details:

Symptom | Possible cause | Solutions |
No power after inserting the card | 1.Cut of main switch or creepage protection switch | Turn on the main switch or creepage switch if still trip please check equipment if there is creepage |
2.Incorrect wiring or poor contact | Read user manual carefully, and ensure that input wire and output wire are tightly fixed on terminal blocks | |
3.The heterogeneous card or wrong card is inserted | Ensure the card is correct | |
No power cut after taking out the card | 1.Over current damage the relay | Tag power switch please return it to the agent or the manufacturer if it’s not resolved |
2.Blocks of contamination in card jack | Clean the switch card jack | |
No power output of card switch | 1.Magnetic card has been in the slot | Take out card and insert again |

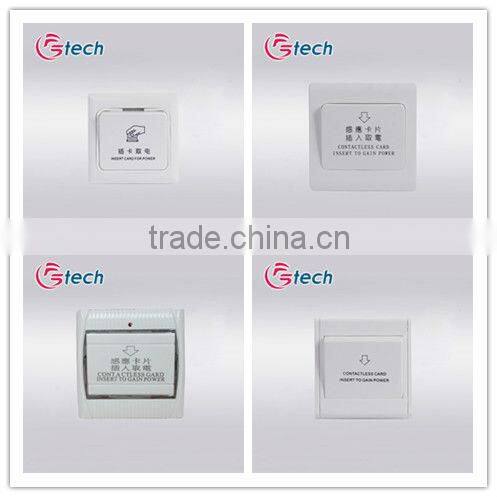

Hotel power card switch series:
Customer and us:
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union.
For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working
days depending on the countries deliver to. We can also arrange other shipment way per
your requirement and instruction, such as sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product
quality.
