Home > Products > Accessories > Access Control EM Card Reader Work With Power Supply Door Access Card Reader

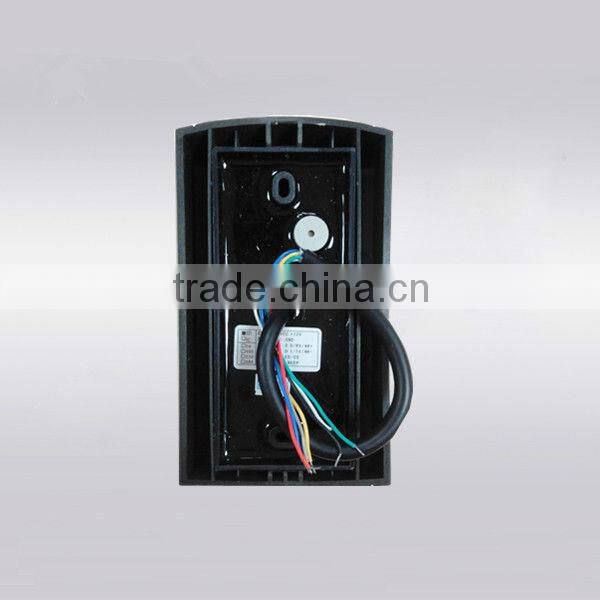

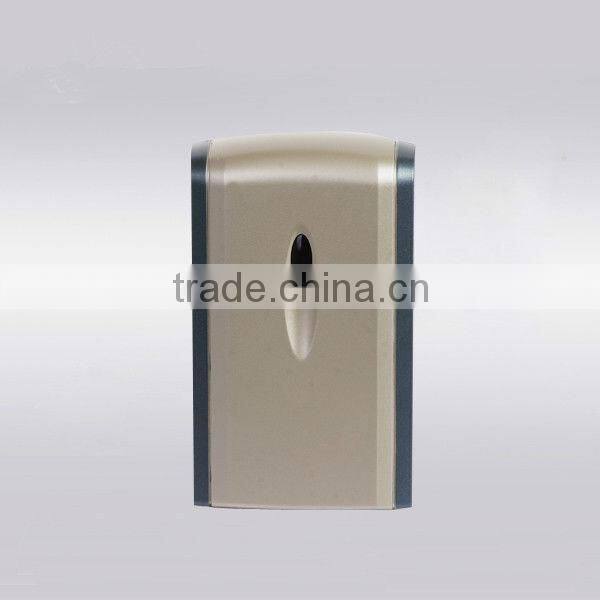

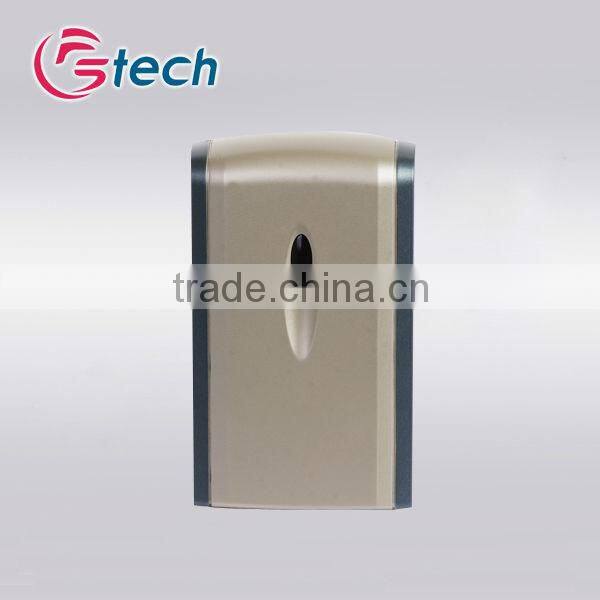

Access Control EM Card Reader Work With Power Supply Door Access Card Reader

FOB Price

US$ 7.78 - 13.98 / Piece

100 Pieces(Min. Order)

Port Ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	FStech
Model Number	RD-05

Product Description

Smart Card Reader Description

Smart card reader, it is a device to work with networking access control system and single door access control system.

Our card reader has two types: ID card reader and M1 card reader. This is proximity card reader is Weigand 26 output.

Smart Card Reader Specification

Proximity smart card reader:
1.Wiegand 26 output
2.Non-touch rfid card reader
3.Proximity IC card reader
4.High sensitivity

Smart Card Reader Technicals

Specification	ID WG 26	ID WG 26
Working Current	DC 12V	DC 12V
Working Voltage	50mA / 30mA	50mA / 30mA
Working Frequency	125KHz ± 1 KHZ	13.56MHz ± 5 KHz
Support Standard	/	SO14443A-2
Card Reading Time	120mS	20mS
Support Card Operation	Read card series number	Read card series number
Communication Interface	WG 26	WG 26
Compatible Card	EM4001 & compatible card	M1 card & Ultralight
Card Reading Distance	80~180mm	40~80mm
Equipment Protection	power supply short circuit protection, wire anti high voltage, up to DC15V	power supply short circuit protection, wire anti high voltage, up to DC15V
Data Transfer Distance	> 70m	> 70m
Working Temperature	0°c~60°c	0°c~60°c
Storage Temperature	-20°c ~80°c	-20°c ~80°c
IP Rating	IP65 waterproof dustproof	IP65 waterproof dustproof

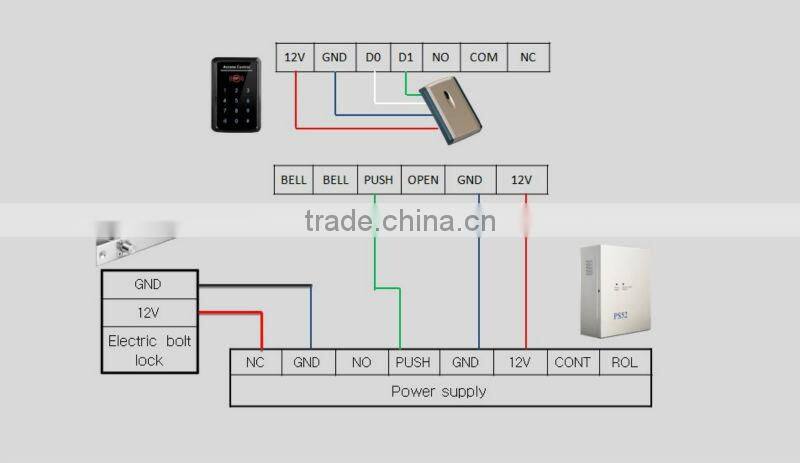

Smart Card Reader Wiring

Wire color	ID WG 26	ID WG26
Red Wire	VCC of power supply	VCC of power supply
Black Wire	GND of power supply	GND of power supply
Green Wire	DATA 0 WG data wire	DATA 0 WG data wire
White Wire	LED wire	LED wire
Yellow Wire	DATA 1 WG data wire	DATA 1 WG data wire
Blue Wire	Buzzer wire	Buzzer wire
Grey Wire	WG26 wire or GND wire	WG26 wire or GND wire

Payment:

If the total amount is less than 500USD, we prefer to accept Paypal or Western Union; For big amount we accept bank transfer.

Shipment:

Normally we will use UPS, DHL, FEDEX, TNT or EMS express. It usually takes 3-7 working days depending on the countries deliver to. We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.

Warranty:

Warranty for one year, maintenance forever, change within 3 months because of product quality.
