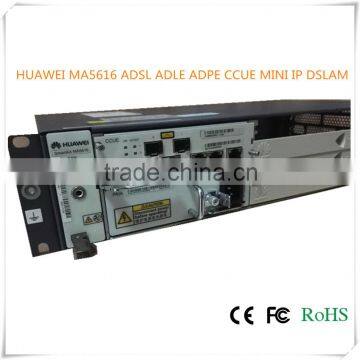

            HUAWEI MA5616 ADLE ADPE UP2A GE1A ADSL VDSL2 IP DSLAM

     SmartAX MA5616

 The SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+, VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.

  Position of the MA5616 on the network

DSL: digital subscriber line                                         FE: fast Ethernet
GE: gigabit Ethernet                                                   IMS: IP multimedia subsystem
LAN: local area network                                             NGN: next generation network
OLT: optical line terminal                                           POTS: plain old telephone service

 Device Appearance

 The MA5616 chassis is 2 U (88.9 mm) high and consists of six board slots and a fan tray. Two mounting ears are equipped for fixing the device in a 19-inch cabinet or rack.

    Figure 2-1 Appearance and structure of the MA5616 (AC-powered, configured with CCUB control board)

Figure 2-2 Appearance and structure of the MA5616 (AC-powered, configured with CCUC control board)

Figure 2-3 Appearance and structure of the MA5616 (AC-powered, configured with CCUDG control board)

Features:

Specifications:

Products Picure:

Shipping information:

   We have many International Express partn ers  and according to clients requirement to choice best way service our costumers
