HUAWEI MA5612/MA5612A EIUC 8-port Ethernet access board GPON EPON ONT

HUAWEI MA5612/MA5612A EIUC 8-port Ethernet access board GPON EPON ONT

Product Positioning:

    The MA5612 is the multi-service optical network unit (ONU) launched by Huawei Technologies Co., Ltd. (hereinafter referred to as Huawei).
    The SmartAX MA5612 Multi-service Access Module (hereinafter referred to as the MA5612) is mainly applied in fiber to the building (FTTB) and fiber to the curb (FTTC) scenarios. In addition, the MA5612 can meet certain requirements of private line access.

   MA5612 applies to FTTB(C) Network, Enterprise Private Line Access Network, Base Station Private Line Access Network and Network Application of the Clock and Time Synchronization.

shows the FTTB(C) networking diagram for the MA5612:

Networking of the TDM PBX service 1:

Networking of the TDM PBX service 2:

Networking of the enterprise router service:

Product Features:

    Various Services
      The MA5612 supports data, multicast, and voice services, and comprehensive quality of service (QoS) guarantee functions.
      1.Flexible configuration specifications: The MA5612 supports upstream transmission through gigabit Ethernet (GE) port, gigabit-capable passive optical network (GPON) port,10G gigabit-capable passive optical network (10G GPON) port based on application scenarios and network construction modes. Carriers can flexibly select a configuration according to user density, obtaining maximal return on investment.
      2.High-performance multicast services.
      3.Voice over IP (VoIP) services.
      4.Comprehensive QoS Functions.

    IPv6
     Compared with IPv4, IPv6 features simplified packet header format, sufficient IP addresses,hierarchical IP address structure, flexible extension header, and enhanced neighbor discovery mechanism.
     1.IPv6 address management and allocation.
     2.IPv6 route.
     3.IPv6 QoS and security.
     4.IPv6 Layer 2 transparent transmission.
     5.IPv6 multicast.

   Highly Accurate Clock/Time Synchronization Capability
     The MA5612 supports multiple clock synchronization modes and the Network Time Protocol (NTP) to provide highly accurate clock and time synchronization function.
     1.Multiple clock sources can be used as the clock input of the MA5612. This effectively ensures highly accurate clock synchronization between the communications device and thecommunications network.
     2.The MA5612 implements time synchronization through the NTP protocol.
     3.The clock/time output supported by the MA5612.

   Highly Effective Manageability and Maintainability
     The MA5612 supports various maintenance and management functions, such as free of onsite software commissioning, remote acceptance, remote upgrade and patch installation, and remote fault location.
     1.One-site deployment and plug-and-play: Offline deployment and plug-and-play are supported when the device transmits services upstream through a passive optical network (PON) port. The MA5612 can automatically obtain the configuration data from the NMS and report its online status to the NMS. (The configuration data automatically takes effect.)
     2.Remote batch upgrade: The MA5612 supports automatic batch upgrade. If the upgrading fails, automatic rollback is supported to restore the original version and data, ensuring the system security. An upgrade package combining both the device software and the patch file is provided for upgrade.
     3.Zero touch routine maintenance: accurate fault location, remote troubleshooting;comprehensive information collection, self-check and diagnosis of the device.
      4.Network performance monitoring.

    Carrier-Class Reliability Design

      1.Complies with carrier-class reliability specifications.
      2.Passes the electrostatic discharge (ESD) test.
      3.Provides surge protection and anti-interference functions.
      4.Supports power supply using batteries when the AC power supply is cut off in the AC +battery power configuration mode; disables broadband services whereas provides narrowband services when the broadband service disabling feature is enabled.
      5.Uses an anticorrosion design and fewer lines routed across the surface of a board to achieve a proper heat dissipation effect (producing a temperature difference to prevent condensation).

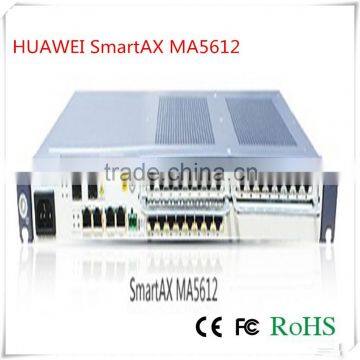

Appearance and Structure of the MA5612:

Configuration 1: AC + backup power + POTS port:

Configuration 2: DC + POTS port:

Configuration 3: AC + backup power without POTS port:

Configuration 4: DC without POTS port;

Configuration 5: AC + backup power + POTS port + RF port:

Configuration 6: AC + POTS port + 10G GPON upstream transmission:

 Indicators on the MA5612:

specifications of the boards in the MA5612:

   The E81A board is an E1 interface board used for accessing E1 signals. It provides eight E1 ports and is hot swappable.
   The E81A board provides eight channels of E1 access services, and its data is directly transmitted from the source synchronous SMII (S3MII) interface of the logic module to the control board for processing.

 EIUC-8-Port Ethernet Broadband Service Board:

    The EIUC board is an Ethernet broadband service board that provides the Ethernet access services. The board provides eight Ethernet (FE) ports and it is hot swappable.
    The EIUC board does not converge services. The service data is directly transmitted by the physical sublayer & physical layer (PHY) chip to the control board through the data channel for processing.

External connections of the EIUC board:

Principles of the EIUC board:

Product Pictures:
