HUAWEI Smartax MA5600 MA5603 64-channel VDSL ADSL2+ service board ADEE ADEF ADGE IP DSLAM

HUAWEI IP DSLAM MA5600 MA5603 64-channel ADSL2+ service board ADEE ADEF ADGE

Product Orientation :

     With the growing requirements for telecom services, the access network (AN) must provide integrated services with large capacity, high rate, and high quality (including data, video, voice,and multimedia). To meet these requirements, Huawei has launched the SmartAX MA5600 Multi-service Access Module.

   the MA5600 has the following orientations:
   As an IP digital subscriber line access multiplexer (DSLAM), it supports non-blocking
gigabit Ethernet (GE) switching fabric to suit the high rate requirements of the broadband telecom network.
   As a multi-service access module, it provides integrated service access to address the diversified service requirements of telecom subscribers.
   As a next generation network (NGN) solution, it provides ensured quality of service (QoS) to be ready for evolving to the next generation network.

    Sample network of the MA5600

    Abundant Port Types

    The MA5600 provides various network ports, service ports, and maintenance ports to meet different networking requirements.

 Cabinet Overview

   provides the types and the appearance of the commonly used MA5600 cabinets.

 Service Shelf Specifications

   Outline of the MA5600 service shelf

   The service shelf is front accessible. It is 19 inches wide and 10 U (1 U = 44.45 mm) high,
containing a 1 U fan tray. The dimensions are 436 mm x 420 mm x 441.8 mm (W x D xH).
   The service shelf provides 16 slots. The slots are numbered from 0.
   The services in the MA5600 service shelf are transmitted upstream through the control
board. The control board and the service board communicate and exchange data through
the backplane.

  Boards

       Control board of the MA5600

  Service boards of the MA5600

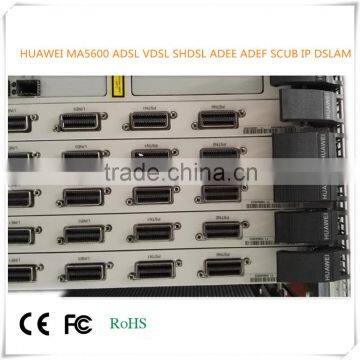

   Products pictures:
