Home > Products > glazed tile roll forming machine > 1100 Automatic Hydrulic Cutting Roof Glazed Tile Roll Forming Machine, Roofing Tile Making Machinery
1100 Automatic Hydrulic Cutting Roof Glazed Tile Roll Forming Machine, Roofing Tile Making Machinery
- tianjin xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Glazed steel tile roll forming machine,machine for manufacturing ceramic tiles
-
Most Popular Hydraulic Automatic Color Steel Metal Tile Sheet Roof Steel Glazed Roll Forming Machine
-
High speed Full Automatic Step Tile Roll Forming Machine/glazed tile roll forming machine/roof tile roll forming machine
-
Hot sale ZT950 glazed roof tile roll forming construction machine tile machine
-
hot sale sheet Glazed roof making machine for building material
-
PPGI Steel Sheet Making Machine/Galvanised Corrugated Roof Tile Cold Rolling Forming Line
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | DIXIN | Model Number | glazed tile forming machine | |
| Power(W) | 4+4KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 6800*1500*1500 | Weight | 4.5T | |
| Certification | CE ISO BV | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1100 Automatic Hydrulic Cutting Roof Glazed Tile Roll Forming Machine, Roofing Tile Making Machinery

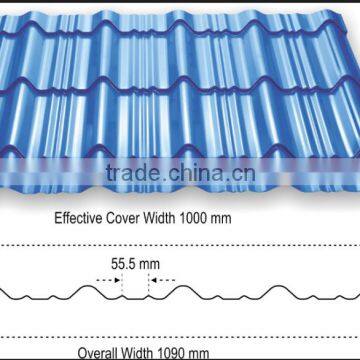

The glazed tile forming machine are beautiful and durable. With advantages of saving space and easy operation. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
Technical data for glazed tile forming machine
| Model number | Professional manufacture glazed tile forming machine |
| Rolled material | 0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | mm |
| Feeding width | mm |
| Forming steps | 13 |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 70mm |
| Main frame | 300H steel |
| Main motor power | 3 kw |
| Pump power | 3 kw |
| Medium plate thickness | 14mm |
| Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
More pictures of glazed tile forming machine
More details of glazed tile forming machine
rollers for glazed tile forming machine
Chain for glazed tile forming machine
cutting for glazed tile forming machine
Processing flow of glazed tile forming machine
Advantages of glazed tile forming machine
Company information for glazed tile forming machine
what's your package of glazed tile forming machine
Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
