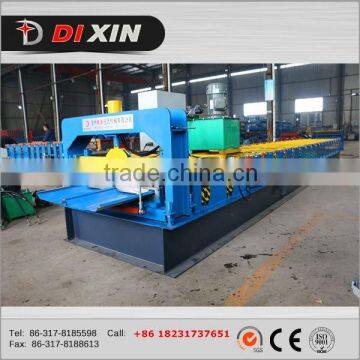

Standing Seam Tapered Bemo Roofing Sheet Roll Forming Machine

1.Panel Profile:

We also can design and produce orther size self lock standing seam roofing tile ,welcome to send us your specification or drawing ,we will give you satisfied solution.

Machine components:

De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box --------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set

Techincal description:

Decoiler
Coil inner diameter:500-600mm

Max coil width:1000-1250mm

Carrying capacity:5000kg


Forming Device
Shaft material:high grade No.45 steel after treatment

Roller diameter:70mm

Roller Material:45# steel polished and coated with chrome HRC55-60°

Roller steps:14groups

Chains transport:1inch chains transmission

Forming Speed:10-12m/min

Main motor power:380V 3PHASE 50HZ

Power:4kw

Mid-plate thickness:16mm

Frame.300 “H”steel

Plating hard chrome,then forming.


Cutting Device
Hydraulic shearing

Hydraulic power:3kw

Blade material,Cr12 steel with quenched treated 60-62°C

Cutting system,Adopt hydraulic drive,automatic cutting after forming,no distorting and wasting,high level safety factor.
Controlling System
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron

Length Error: ±2mm
Output table
It is simple and used to load finished product.

Length:6m
