cangzhou dixin Glazed Tile Roll Forming Machine
- xingang tianjin
- Credit Card
You May Like
-
DX joint-hidden roll forming machine/Building raw materials
-
DIXIN 760 joint-hidden roll forming machine for CE/ISO9001 certification
-
DIXIN 760 joint-hidden roll forming machine/roof & wall panel making machine
-
Novel design of DX 760 joint-hidden roof panel roll forming machine
-
DX 760 joint-hidden roll forming machine FOB TIANJIN
-
DX Galvanized steel/Aluminum plate 760 joint-hidden roll forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze | Use | Roof | |
| Production Capacity | 10-12m/min | Place of Origin | Hebei, China | |
| Brand Name | dixin | Model Number | 1100-220-28 | |
| Power(W) | 5kw | Voltage | 380V | |
| Dimension(L*W*H) | 6.5*1.3*1m (L*W*H) | Weight | 3 TON | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
cangzhou dixin Glazed Tile Roll Forming Machine1 CE

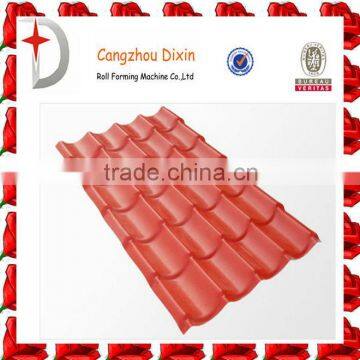

2 no scratch smooth glazed tile
3 direct factory
Product Description:
Technical parameters:
| duct name: cangzhou dixin Glazed Tile Roll Forming Machine |
| 2.model: 1100-220-28 |
| 3.size: 6.5*1.3*1m (L*W*H) |
| 4. material spec: colored steel sheet, galvanized steel sheet, aluminium sheet |
| 5. thickness of coil sheet: 0.3-0.8mm |
| 6. roller material: high grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05mm |
| 7. shaft material: high grade NO.45 carbon wrought steel |
| 8. cutting blade: Cr12 mould steel with quenched treatment |
| 9. diameter of shaft: 70-90mm |
| 10. thickness of medium plate: 14-20mm |
| 11. main frame: 300H/U steel |
| 12. number of forming steps: 15 rows |
| 13. productivity: 10-12m/min |
| 14. main motor power: 5kw |
| 15. hydraulic station power: 5kw |
| 16. hydraulic pressure: 10-12MPa |
| 17. controlling system: PLC computer control |
| 18. Voltage: 380V 3Phase 60Hz or at buyer’s requirement |
Main parts of roll forming machine
| 1 uncoiler and its base |
| 2 coil sheet guiding equipment |
| 3 roll forming system |
| 4 hydraulic pressing equipment |
| 5 post cutting equipment |
| 6 hydraulic station |
| 7 controlling system |
| 8 supporter table |
Production line
Product Picture
1.main frame: 300H/U steel
2.shaft material: high grade NO.45 carbon wrought steel
3.roller material: high grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05mm
ntrolling system: PLC computer control,brand movement
5.main motor power: 4kw,11kw,famous brand in China
Maintenance
| 1 feed lubricant |
| 2 power lines properly connected |
| 3 change the gear oil and hydraulic oil |
4.Packaging&Shipping
our roof panel roll forming machine is wrapped in a waterproof package,Shipping by sea,truck and train,all is ok.
Service
1 one year warranty and lifelong technical support (During warranty you will have to pay for part of fee including visa,tickets and othes) |
2 on-site training. Training period willbe for no more than one week with the customer paying for the visa return ticket, food, accommodations and a daily wage of USD 50. |
OUR COMPANY
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers’ trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need.
8.Our Certification
exhibition and custemor visit
