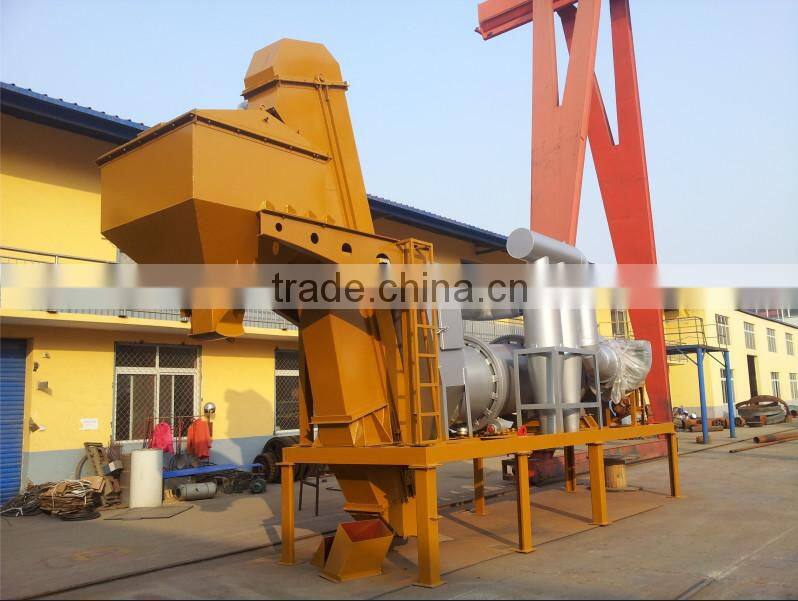

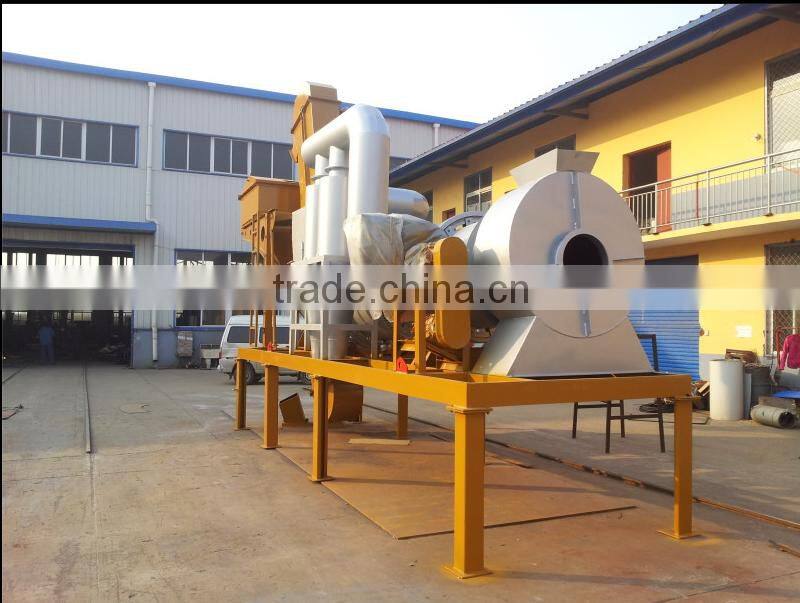

DHB20 Small Mobile Asphalt Mixing Plant 20t/h

Company Introduction :

China-dbgroup  is a new and developing company for the asphalt mixing plant . our mianly products is : 1. mobile asphalt mixing plant ,2. stationary asphalt mixing plant 3. bitumen melting machine 4. paving machine

our products have been exported to Philippines, Indian , Australia, Canada  ,American and other countries .

                   DHB20 Small Mobile Asphalt Mixing  Plant 20t/h

Introduction :

DHB20 small mobile asphalt mixing plant is one of countinuous type drum mix plant , the main parts is the mixing and heating drum . the driving type is the chain , so the chain structure is very importmant for it .

the standred dust collector for the DHB20 small mobile asphalt mixing plant is cyclone dust collector .

Details Information :

1)Cold aggregate supply system:

Bin cubage: 4m3

The bin width:2.6m ;

Loading height: 2.27m;

Ring belt width:500mm;

2)Titled belt feeding conveyer

Belt width: 400mm

Motor power: 3 kW

3)Drying drum assembly

Drum diameter: 1m

Drum length: 4.5m

Motor power: 5.5kW

Driving type: chains+ gear

5)Oil burning system

Rated oil consumption:130kg/h;

Drawing fan power:3kw;

Oil pump power:1.5kw

6)Asphalt supply system

 Asphalt tank volume: 10m3;

Drawing fan motor power: 4kw

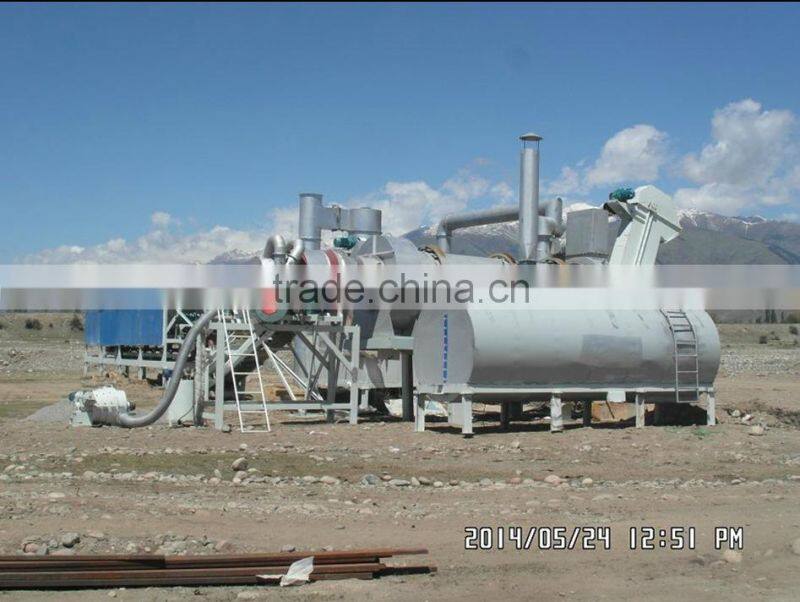

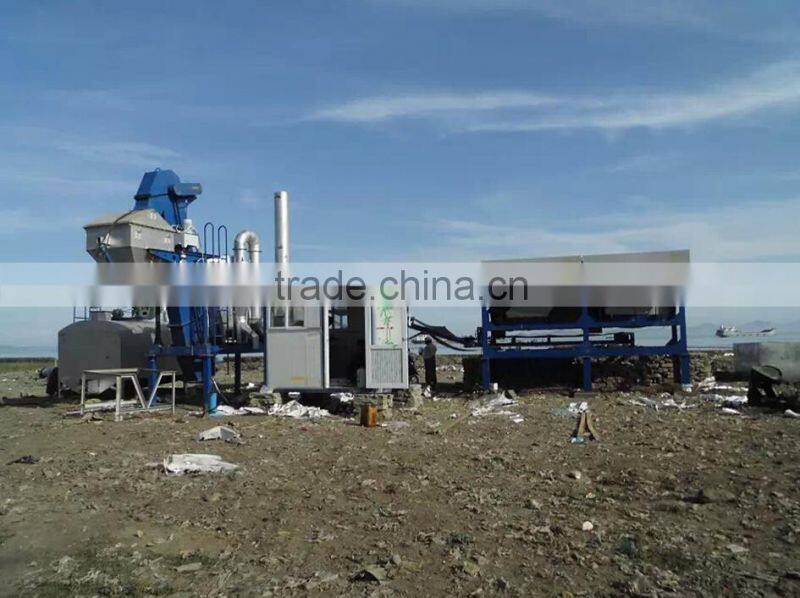

Project over the world :
