Home > Products > Mobile Asphalt Plant > Small Mobile Asphalt Hot Mix Plant 20-60t/h
Small Mobile Asphalt Hot Mix Plant 20-60t/h
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Double Birds | Model Number | DHB60 | |
| Voltage | 380v | Power(W) | 90kw | |
| Dimension(L*W*H) | 38*25m | Weight | 40t | |
| Certification | CE | Warranty | 15 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

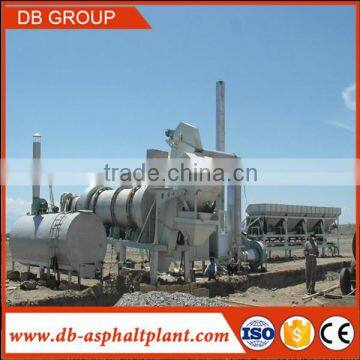

Small Mobile Asphalt Hot Mix Plant 20-60t/h
ZHEGNZHOU DOUBLE BIRDS MACHINERY CO.,LTD (CHINA DB GROUP) is one of top manufacture of asphalt mixing plant in china , our products have been exported to many countries over the world . please see the follows project as sample:
Small Mobile Asphalt Hot Mix Plant 20-60t/h
Main Technical Parameters :
Type | Continuous Hot Mix asphalt plant |
Capacity | 20 TPH (Standard Working Condition) |
Drying & Mixing Drum | Φ1000*4500mm |
Fuel Consumption | diesel consumption: 6.5-7.5 kg /ton |
Weighing Precision | hot aggregate: ±0.5%; bitumen: ±0.3% |
Hot Asphalt Temperature | 130℃-165℃(adjustable) |
Air Emissions | ≤100mg/Nm³ |
Working Noise | ≤70db(A) |
Operation | Full Auto/Manual Operation |
Installation Power | 55kw |
Electrical Design | 220V/380V-50Hz(adjustable) |
Plant Covering Area | Length:15.6m, width:15m, max. height point: 6m |
Standard Supply:
Standard supply for one set of plant consists of Cold Aggregate Feeder Bins, Single Deck Vibratory Screen, Slinger Conveyor, Drying cum Mixing Drum fitted with Automatic Burner & Multi cone Primary Dust Collector, Hot mix Load Out Conveyor with Gob Hopper & Power Pack, Asphalt Tank with Pumping Unit, Piping & Automatic Burner, Mineral Filler Unit, Wet type Secondary Dust Collector, Electronic Control Panel and Control Cabin.
