Product Details
| Brand Name | MSD, MSD | Model Number | FGS701 | |
| Type | Insulation Paper | Material | Composite Polymer | |
| Application | High Temperature | Tensile Strength | MD:139.50N/25mm,CD:60.20N/25mm |
Product Description
1. Description & Keyword of aluminum foil insulation material :
We are Foil scirm kraft Factory.Aluminum foil laminated to fiberglass materials with ISO certificated and sgs approved flame retardant materials vendor of SAINT-GOBAIN. Our FGS701 is one kind of aluminum foil insulaton materials.
Related Items: aluminum foil scrim kraft, aluminum-foil-scrim facing, aluminium foil insulation facing, aluminum foil scrim kraft facing, aluminium composite facing,aluminum foil compound materials, aluminum composite materials, foil scrim kraft facing, foil-scrim-kraft facing, foil scrim kraft insulation, FSK facing, FSK facing tape, Foil/Scrim/Kraft insulation tape, heat-sealing foil facing, glasswool facing, insulation facing, laminated foil-scrim-kraft, laminated facing, vapor retarder facing,vapor barrier facing, glass wool, rock wool, mineral wool, polypropylene-scrim-kraft facing, WPSK Facing, FGR Facing
2. Structure & Benefits of aluminum foil insulation material :
Both out layer is aluminium foil have the founction of thermal insulation , waterproofing, vapor barrier etc.
Midle layer is fiberglass including flam retardant and not flam retardant. Increas the sthength
Choose inorganic raw materials, FGS701 will not influent by moisture and microbiology.
Product Structure | Description | ||
Alu. Foil | 7µm | ||
Adhesive | PE | ||
Fiberglass Fabric | 95g/m² | ||
Adhesive | PE | ||
Alu. Foil | 7µm | ||
| |||
Physical Property | Value | Test Method | |
Basic Weight | 225 g/m² | Scale | |
Tensile Strength MD | 832 N/25mm | GB/T 7689.5-2001 | |
Tensile Strength CD | 267.9 N/25mm | GB/T 7689.5-2001 | |
Burst Strength | 705.5N | GB/T 454-2002 | |
Reflectivity | 95% | - | |
Temperature Resistance | -26°C to 66°C not delaminating | - | |
3. Application of aluminum foil insulation material :

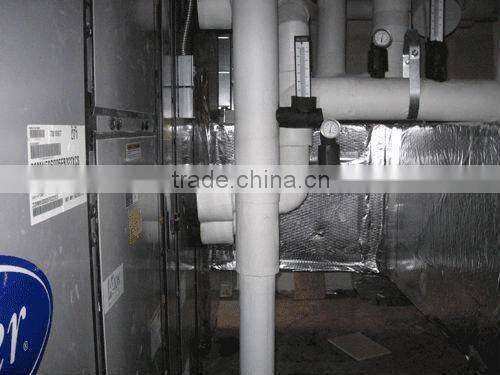

[1]. Pack the air-conditioning outlet

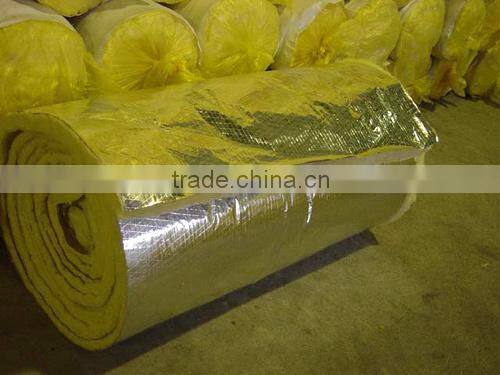

[2]. Could be cut to wrap around the glass wool in different sizes for inserting between the main body and the inner body of the subway wagons, for insulating against temperature and sound .
[3] for housetop or floor heat insulation or auto engine or construction heat insulation
4.Size of aluminum foil insulation material
[1]. Roll width: 30mm-1200mm
[2]. Roll Length: no less than 50m (Special seizes available upon request)
[3] . Core I.D.: 3"(76mm+/-1)
5. R&D
We are studying fire/flame retardant adhesive for improve quality of our products to bring you a safer environment and protect your life.
6. Similar products guide
FG701: single layer of 7micron aluminum foil was applied to FG701
FG701T: self adhesive tape, easy to install, because of the application of pressure sensitive adhesive, two types we supply: one could endure temperature from -10degree centigrade to 60DC, another one could standing from -10DC to 100DC.
If you have any questions about aluminum foil insulation material Please feel free contact me by Skype: Kayla.pan3
