Home > Products > Fiberglass Cloth composite > alu pet films reflective insulation
alu pet films reflective insulation
- 20000 Square Meter / Square Meters per Month
- Lianyungang
- T/T Credit Card
You May Like
-
Reflective fiberglass film
-
aluminum reflective insulation white polypropylene film
-
Metallized PET FILM LAMINATED WITH SCRIM POLYPROPYLENE BUILDING MATERIALS
-
fiberglass film-Heat Insulation materials
-
aluminum reflective insulation film materials
-
Double Side Insulation Aluminum Film Fireproof Fiberglass Cloth
Product Details
| Place of Origin | Jiangsu, China | Brand Name | MSD | |
| Model Number | PSK4512 | Type | Insulation Film | |
| Material | PET | Application | High Temperature | |
| Tensile Strength | MD:92.50N/25mm;CD:80.30N/25mm |
Product Description
1.Specifications of Alu pet films:

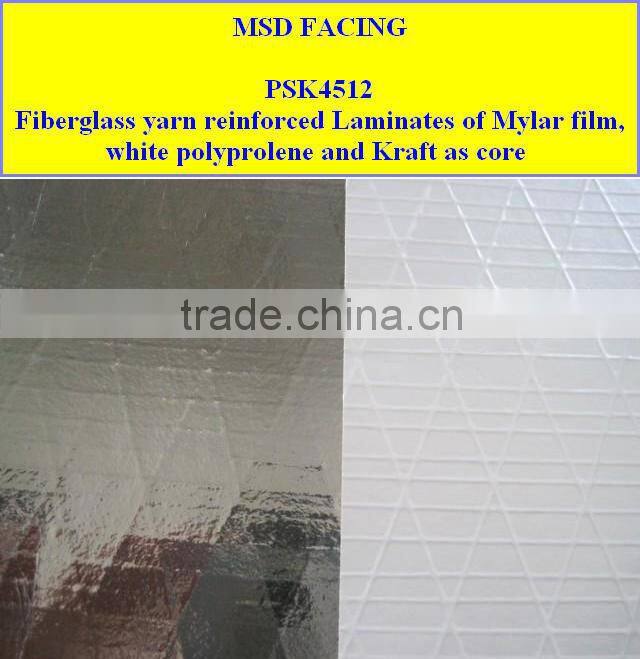

PSK4512 is one of Alu pet films namely Aluminum film(PTE) laminations reinforced by fiberglass yarn as scrim
Our Alu pet films with ISO certificated and sgs approved flame retardant materials vendor of SAINT-GOBAIN
2. Structure of Alu pet films:
Mylar film laminated to kraft paper polyethlene as adhesive reinforced by scrim built from by fiberglass yarn, liner by krft paper, then coated to matte polypropyl through polyethlene.
PSK4512
Product Structure | Description |
VMPET | 12µm |
Adhesive | PE |
Natural Kraft Paper | 55g |
Fiberglass | 16*12Threads/10cm*10cm |
Adhesive | PE |
White PP | 30µm |
Physical Property | Value | Test Method |
Basic Weight | 142.5 g/m² | Scale |
Tensile Strength MD | 180.2 N/25mm | GB/T 7689.5-2001 |
Tensile Strength CD | 137.8 N/25mm | GB/T 7689.5-2001 |
Burst Strength | 327.7N | GB/T 454-2002 |
Reflectivity of Metallic Face | 95% | - |
Temperature Resistance | -26°C to 66°C not delaminating | - |
PRODUCT | STRUCTURE | WEIGHT |
PSK4511 | BOPP / Scrim / Adhesive / Film | 60g |
PSK4512 | BOPP / Scrim / Adhesive / Kraft / Adhesive / Film | 142g |
PSK4513 | Film / Scrim / Adhesive / Kraft / Adhesive / Film | 50g |
Application
1.Packaging & Decorative Grade Film:
Face-Stock for self-adhesive, Gift-Wrapping, Glitter Powder, Metallic Yarn, Food-Packing, Laminated Paper/Paper board, Holographic Embossing.
2 Reflective film
For reflect the sunshine and make the best use of sunshine
3.Optical Grade Film :
Reflector in Liquid Crystal Display, LCD`s backlight unit, Light-Shielding.
Features:
1) High strength
2) Good printability
3) Good barrier performance
4) Low oxygen permeability
If you have questions about PET aluminum reflective insulation film or
other interested products please feel free contact me by Skype
SKYPE: Kayla.pan3
