2014 hot sale metal / stainless steel / carbon steel laser cutting machine for sale XJG-150300JH

Wooden Case Package

Specifications

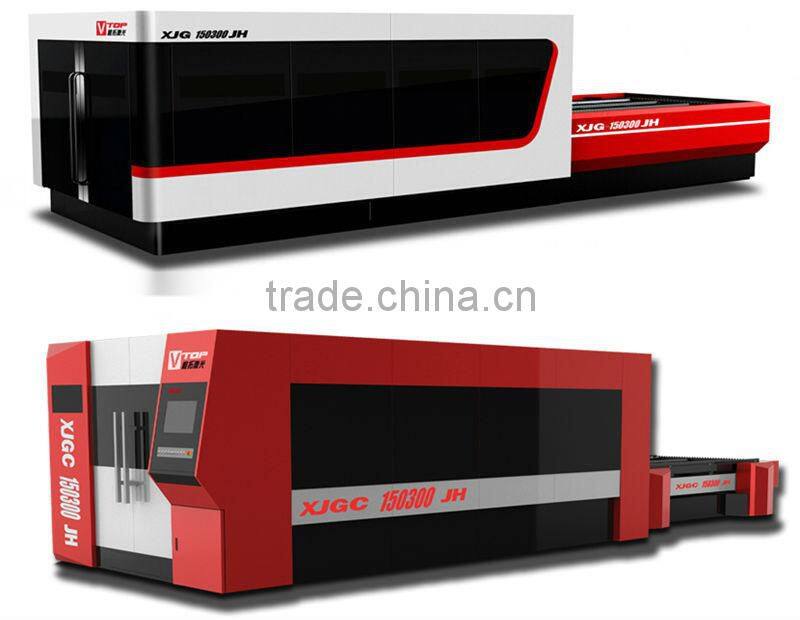

2014 hot sale metal / stainless steel / carbon steel laser cutting machine for sale XJG-150300JH

Laser Cutting Machine integrates optical, mechanical and electrical in one, adopting laser technology, computer control technology and high-performance CNC laser power system to cut metal sheet at high speed, high accurate, high efficiently cutting. Its products have smooth edge, small kerf width and little heat effect.

• Fiber Laser Cutting Stainless Steel 3mm:              http://youtu.be/KvlYx0PUals
• Fiber Laser Cutting Mild Steel 5mm:                      http://youtu.be/84WacnsaQtg
• Fiber Laser Cutting Carbon Steel 8mm:                 http://youtu.be/FNsodKgSU40
• Fiber Laser Cutting Steel Sheet 10mm:                 http://youtu.be/PUqribHpLMQ
• Fiber Laser Cutting Aluminum 2mm:                      http://youtu.be/nc7jAsTp06Q
• Fiber Laser Cutting Brass 1mm:                             http://youtu.be/JDjvydBVqt0
• Fiber Laser Cutting Metal Pipe:                              http://youtu.be/bopRkqAD6QM
• 2000W Fiber Laser Cutting Machine:                    http://youtu.be/NA-O2Pfz3Ew
• 1000W Fiber Laser Cutting Machine:                    http://youtu.be/pTS88Tc77yI
• 500W Fiber Laser Cutting Machine:                      http://youtu.be/_cfJX9hpj1w
• CNC Metal Laser Cutting Machine:                         http://youtu.be/PlF_oXvbu4s
• 800W YAG Laser Cutting Machine:                       http://youtu.be/0WQUfeRtF_I
• YAG Laser Cutting Metal Sheet and Tube:              http://youtu.be/1DzK5JBSEik

A variety of functions and better performance on the NEW fiber laser cutting machine!

• The Highest Stability
• Laser Power 500W 1KW 2KW 3KW
• Working Area 1.5X3m 2X4m 2X6m
• Pallet Changer (two working tables)
• Cutting High Reflective Metal Materials (Coherent 1KW)
• The Fastest Return on Investment

Fiber Laser Cutting Advantages

(1) Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.

(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

Laser Cutting Machine Features
1. Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
2. Fiber laser power 500W, 1000W, 2000W, 3000W. Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.
3. Enclosure design conforms to CE standard for reliable and safe processing. Pallet changer is convenient for material uploading and unloading and further improving working efficiency.
4. Aiming at high speed cutting, strengthened welded machine body after 2 times of aging process, ensuring long-term accuracy and stability of performance.
5. Dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of metals. Easy operation and low cost.
6. Automatic nesting software (including material management and optimized processing technology) and providing with database of process parameters for easy operation and simple management.
7. Optimized optical lens, specially designed nozzle and sensor technology realize more stable and smooth cutting. Optional collocation of 2000mmX4000mm, 2000mmX6000mm working table.

Fiber Laser Cutting Machine Technical Parameters

Fiber Laser Cutting Machine Collocation

Fiber Laser Metal Cutting Machine for Stainless Steel and Carbon Steel, Live-Action

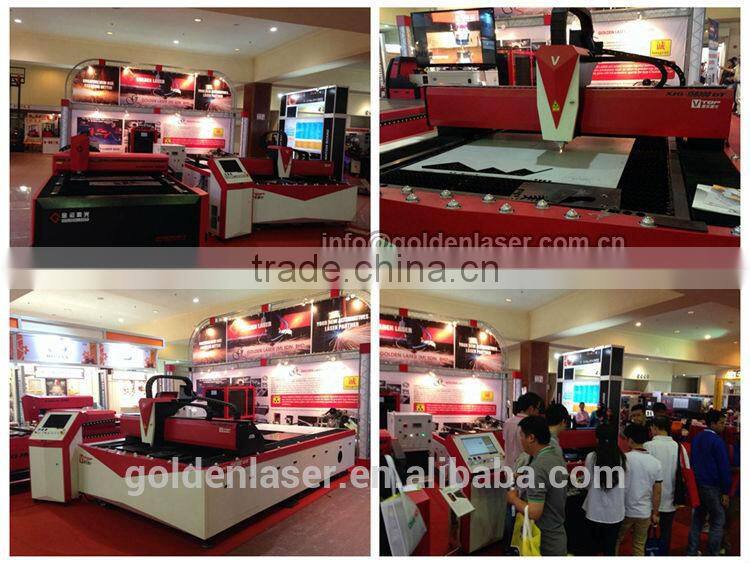

Fiber Metal Laser Cutting Machine Exhibition

<< Fiber Laser Cutting for Metal Applicable Industries
Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

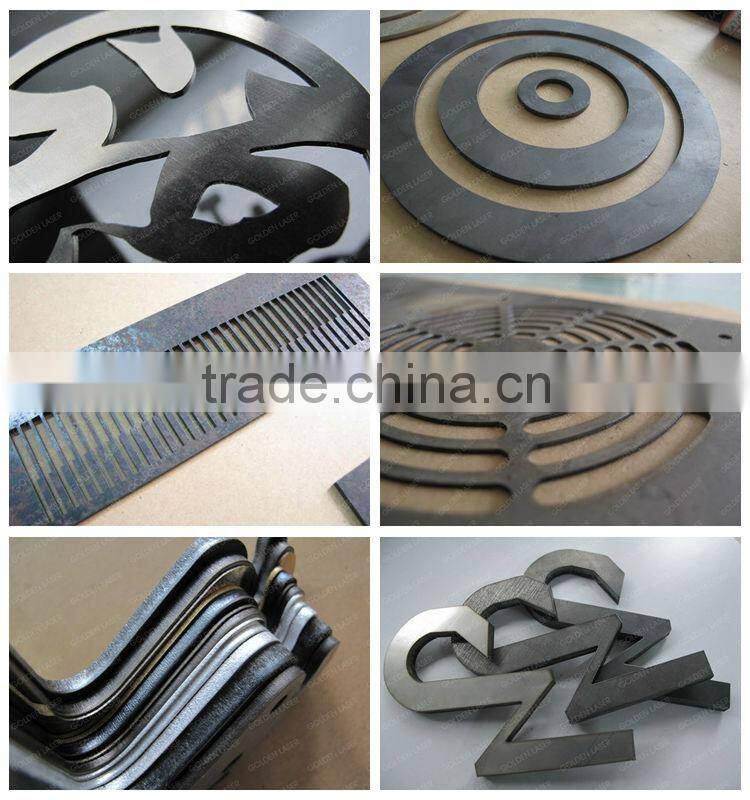

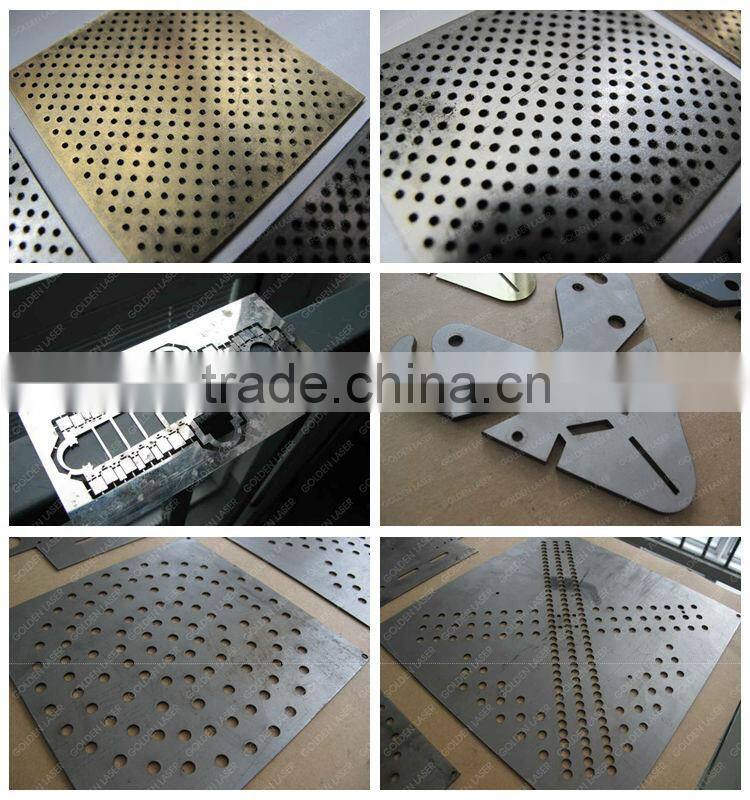

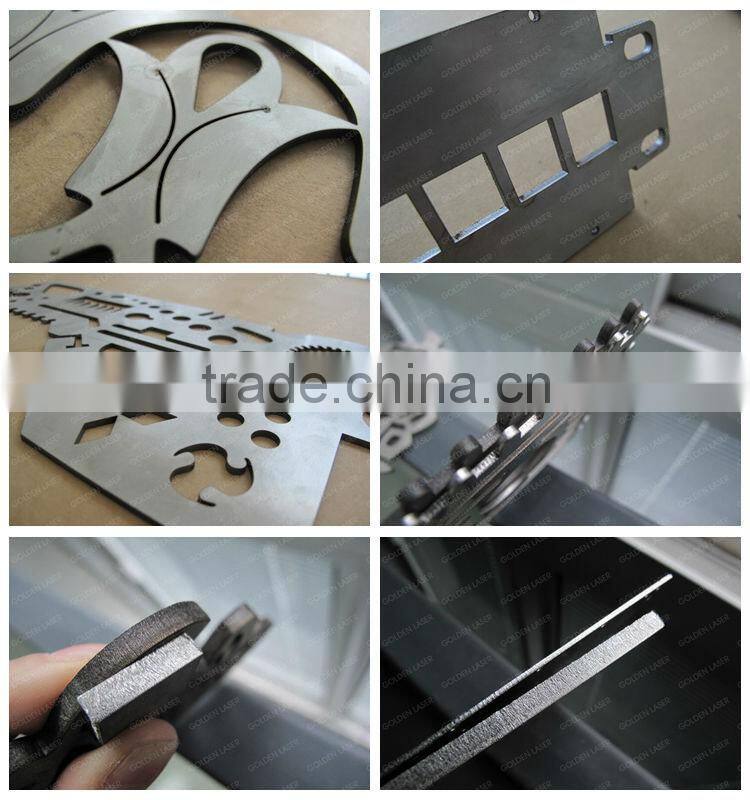

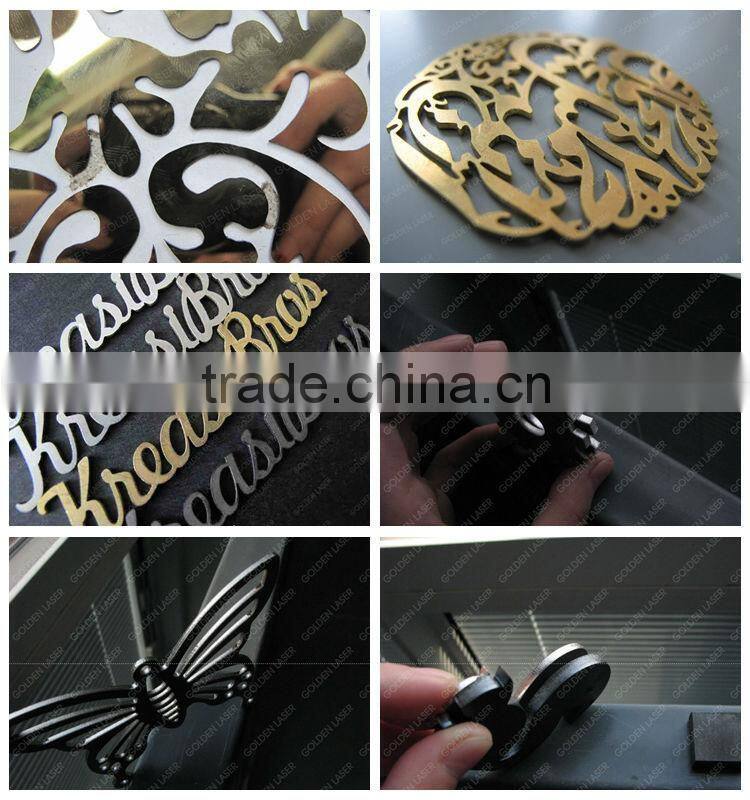

<< Fiber Laser Cutting Machine for Metal Applicable Materials
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.
