1500mm*3000mm fiber laser cutting metal machine

Wooden Case Package

Specifications

fiber laser cutting metal machine

The application of laser cutting technology is a great processing for metal cutting industry. Laser with high accuracy, fast speed, small heat affected area, low use-cost, less maintenance cost, wide material adaptability and other outstanding advantages, is recognized as an alternative to traditional metal cutting. Compared to CNC punching machine, laser cutting machine no need mold and can cut complex graphics easily, no need secondary processing and higher cutting quality.

 Why Golden Laser

• Laser innovative application service platform
• Leading laser solution provider
• More than 12 years experience in laser industry
• Laser-World of Photonics Exhibitor since 2005
• Strict quality control and exclusive after-sales service team
• Providing customized laser machines, seeking users & distributors globally

 How our laser machine work?

© Fiber Laser Cutting Machine, video demo: http://youtu.be/NA-O2Pfz3Ew

© 500W Fiber Laser Cutting Machine, video demo: http://youtu.be/f7h9NfaBjbE

© 1000W Fiber Laser Cutting Machine, video demo: http://youtu.be/fRYbrSPK4uI

© 2000W Fiber Laser Cutting Machine, video demo: http://youtu.be/57K2Th1V0ys

© YAG Laser Cutting Machine, video demo: http://youtu.be/0WQUfeRtF_I

© CNC Laser Cut Stainless Steel. Carbon Steel, Aluminum, video demo: http://youtu.be/PlF_oXvbu4s

 Fiber Laser Cutting Advantages:

(1) The fiber laser cutting series are metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.

(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

 Fiber Laser Cutting Machine - High efficiency & High quality cutting system - Fast and precision metal cutting solution - Fiber laser 500W/1000W/2000W/3000W

Fiber laser source is the most advanced laser source for metal cutting, there are a lot of unique advantages, such as free maintenance, lowest power consumption and longest working lifespan and the most important is highest accuracy and efficiency during processing the metal materials. For the laser source, we import from the most famous company IPG to ensure our machines good quality.

• Fiber laser generator, transmitted by fiber cable, no need reflecting mirrors.
• Long life time (100,000 hours) of the laser module. IPG laser source 300W, 500W, 1000W,2000W,3000W for choice
• Fiber laser suitable for fast speed and precision cutting stainless steel and mild steel. Cutting speed is much faster than YAG laser.
• Cutting capacity: 500W Fiber laser can cut max.6mm mild steel; 2000W fiber laser can cut max.16mm mild steel.
• Small heat affected zones for narrow cutting “kerf”, have the ability to cut most complex design and sharp corner.
• Auto focus system to change focus length automatically while process uneven materials
• Nesting Software provides efficiency and saving materials
• Minimized burrs and roughness
• Lowest maintenance cost and lowest energy-consumption
• Easy operation

     XJG-150300 JH Fiber Laser Cutting Machine

XJG-150300 JH Fiber Laser Cutting Machine Main Features

1. The double ball screw closed-loop system and imported open CNC system enable high processing accuracy and high working efficiency during high speed cutting.

2. Standard collocation of 2000W fiber laser generator and optional 500W~3000W fiber laser generator low operation and maintenance cost, realizing investment long-term returns and maximum profits.

3. Enclosure design conforms to CE standard for reliable and safe processing. Pallet changer working table is convenient for material uploading and unloading and further promotes working efficiency.

4. Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process, ensuring long-term accuracy and stability of performance.

5. Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.

6. Standard collocation of automatic nesting software (including material management and optimized processing technology) and providing with database of process parameters for easy operation and simple management.

7. Optimized optical lens, specially designed nozzle and sensor technology realize more smooth and more stable cutting. Optional collocation of 2000mm×4000mm, 2000mm×6000mm working table.

 *Note: As products are constantly updated, please contact us for latest specifications.

Fiber Laser Cutting Machine Application Field

Suitable for cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, iron sheet, inox sheet and other metal sheet, metal plate, etc.

Applicable to sheet metals, electrical cabinet, kitchenware, hardware, metal enclosure, advertising, lighting lamps, decoration, gifts, medical instruments, automotive parts and other metal cutting fields.

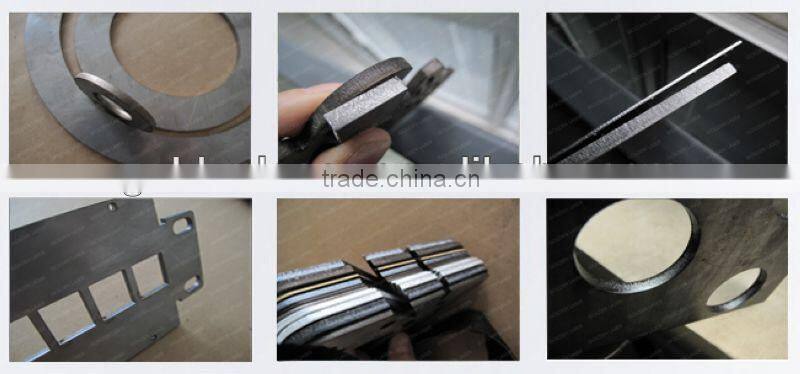

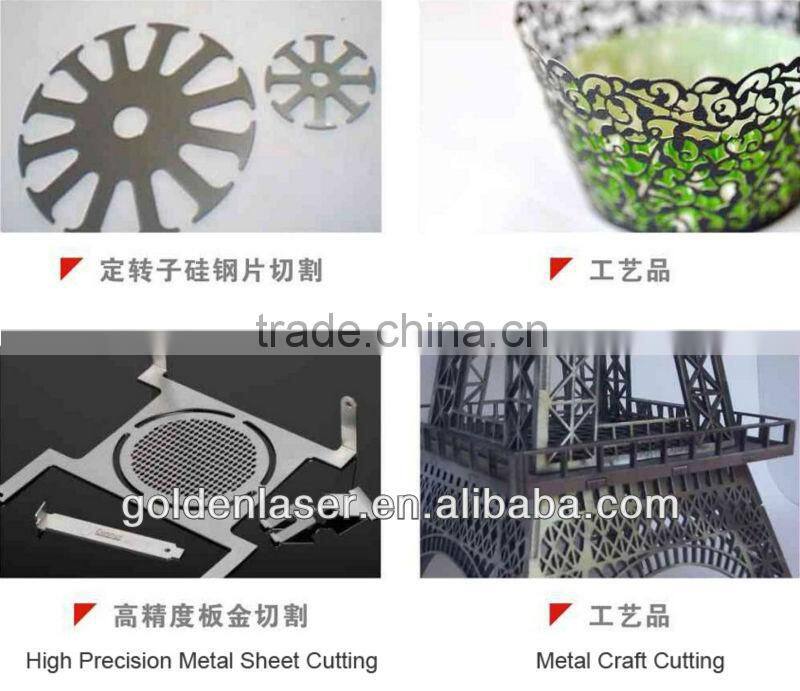

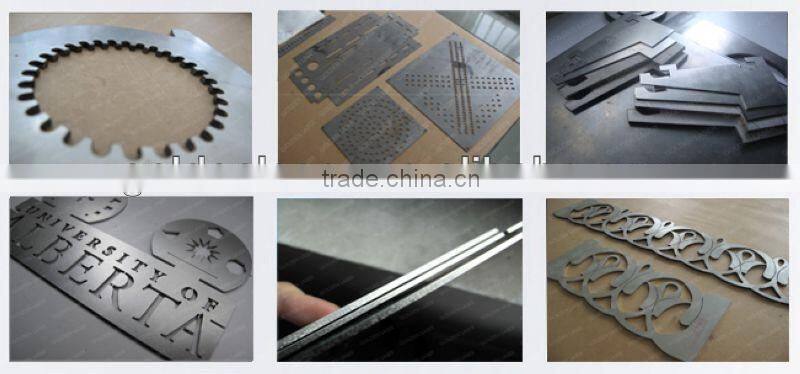

 Laser Cutting Metal Samples Display

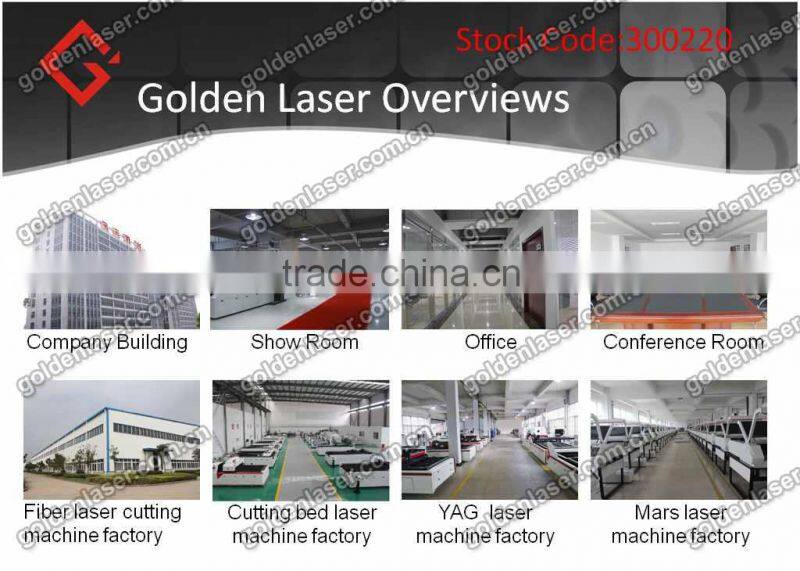

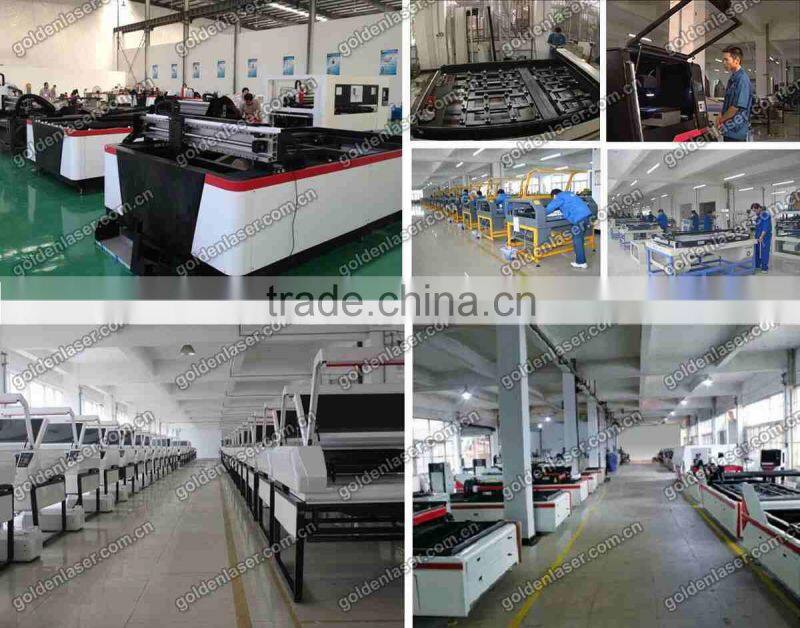

Golden Laser Overviews

Golden Laser offers different type (Co2, YAG, Fiber) of laser machines and provides a comprehensive range of laser cutting, laser engraving, laser marking and laser welding systems. Whether you need a cost-effective machine or a more sophisticated laser solution, from the economical models to the large format automated laser processing systems, even customized laser systems, Golden Laser has the laser solutions that satisfy your requirements.

Golden Laser Exhibitions Worldwide

Welcome to contact Golden Laser by leaving a message below for more information. Your kindly reply of following questions will help us to recommend the most suitable machine for you as soon as possible.
