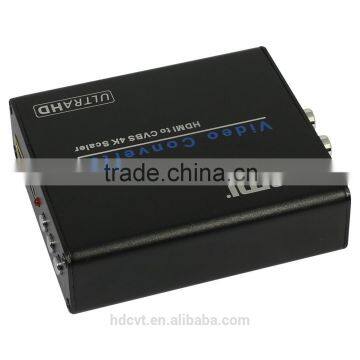

HDMI to CVBS 4K Scaler , HD Video Converter

Introduction

The 4Kx2K HDMI to AV converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal to normal CVBS (standard-definition 480i, 576i,) and analog audio output.So that can play on CRT TV, VHS VCR, DVD recorders, etc.

Features

1. 1.   No need to install drivers, portable, flexible, plug and play.
2. 2.   High quality scaling technology for input resolutions .
3. 3.   Support NTSC and PAL two standard TV formats output.
4. 4.   Compatible with HDMI1.4
5. 5.   Support HDMI input resolution up to 4Kx2k@30Hz.

Specification

Input ports: 1xHDM, 1 x Min- USB

Output ports: 1xRCA (Yellow, White, Red)

Dimensions(mm):   93(D)x84(W)x28(H)

Wight (g):          155g

HDMI input resolutions:   480i to 4Kx2K@30Hz.

CVBS output:   PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats

Operating Temperature                     0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature            -20°C ~ 60°C / -4°F ~ 140°F

Elative Humidity              20 ~ 90% RH (Non-condensing)

Power Consumption (Max)     2W

ESD Protection                        Human Body Model:

± 8kV (air-gap discharge)

± 4kV (contact discharge)

Package

1. 1.   4Kx2K HDMI to AV Converter                                       1 pcs
2. 2.   5V1A DC Power Supply Adaptor                                  1 pcs
3. 3.   Operation Manual                                                   1 pcs
