3 Phase 220V Power Factor Compensation Device

Specifications

415V TBB Reactive Power Compensation Device (compensator)

Capacitor banks 90KVAR 550V 3 steps
Capacitor banks 120KVAR 550V 4 steps
Capacitor banks 125KVAR 550V 5 steps
Capacitor banks 150KVAR 550V 3 steps
Capacitor banks 150KVAR 550V 5 steps
Capacitor banks 210KVAR 550V 7 steps

With fan, temperature controller, automatic controller, thermal relay.

1.       50KVAR,  4 ways, 5KVAR, 10, 15, 20  Dimension: 1200H*700*370

2.       100KVAR, 6 ways, 5, 10, 15, 15, 25, 30, Dimension: 1200H*600*500

3.       150KVAR, 7 ways, 5,10,20,25,30,30,30, Dimensions: 1200H*700*500

4.       200KVAR, 8 ways, 5,15,30,30,30,30,30,30, Dimensions: 1200H*700*500

5.     250KVAR, 10 ways, 5,15,20,30,30,30,30,30,30,30, Dimensions: 1500H*800*500

6.       300KVAR, 12 ways, 5, 10, 20, 25, 30*8, Dimension: 1500H*1000*500

Desciption:

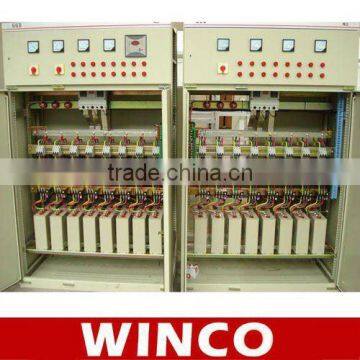

Standard Capacitor bank:

will include below items:

1. Reliable Moulded case circuit breaker as main switch (Knife switch is optional, as economic choice)

2. Arresters

3. High quality Mini circuit breaker, high voltage and large current, will use Moulded case circuit breaker

4. Contactors (Thyristor switch or complex switch is optional)

5. Thermal relay

6. Capacitors

7. Controllers (cost efficiency RPCF controller or economic controller is optional)

8. Panel meters and indicators

9. Metal cabinet (Indoor or outdoor, also stainless steel is optional)

Other optional:

10. Cooling Fan

11. Heater

7. 9 . Controller & Panel meter & Indicator

10. Cooling fans

11. Heater

Reactors are optional: Pls inform us the Resonant Frequency
