Home > Products > Fan Filter Unit/FFU > High Efficiency Clean Room FFU Fan Filter Unit

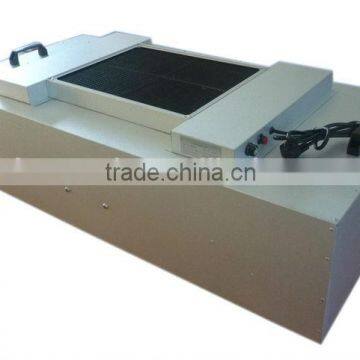

High Efficiency Clean Room FFU Fan Filter Unit
- 200 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Jowell | |
| Model Number | JJ-4-2 | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
High Efficiency Clean Room FFU Fan Filter Unit1.ISO9001 CERTIFIED;
2.Efficiency 99.99% at 0.3um;
3.Low noise fan of FFU;
High Efficiency Clean Room FFU Fan Filter Unit
HEPA FAN FILTER UNIT's are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc...
FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
Dimension and technical data:
Model | JJ-4-2 | JJ-4-4 | JJ-2-2 | |||
Dimension | mm | 1175*575*250 | 1175*1175*350 | 575*575*250 | ||
Air flow | M3/h | 1400 | 2350 | 800 | ||
External static pressure | Pa | 98 | 98 | 98 | ||
Main body |
- | Standard | cold rolled steel plate with powder coated | |||
Option | Stainless steel(SUS304) Galvanized steel Aluminum coated zinc plate | |||||
Power supply | Standard | V/Hz | 220V 50/60Hz | |||
Option | V/Hz | Pls contact us if you have any other requirement about the power. | ||||
Filter | Efficiency | - | HEPA Over 99.99% @ 0.3um | |||
- | ULPA Over 99.9995% @ 0.1um | |||||
Frame | - | Aluminum | ||||
Power dissipation | W | 120 | 245 | 90 | ||
Weight | Kg | 25 | 45 | 15 | ||
Shock | m/s2 | ≤0.4 | ≤1.1 | ≤0.4 | ||
Noise | Db(a) | ≤55 | ≤55 | ≤55 | ||
Option | - | Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter | ||||
