Fan filter unit filter

FOB Price

US$ 185 - 220 / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Jowell, Jia jie
Model Number	JJ-4-2		After-sales Service Provided	Overseas service center available

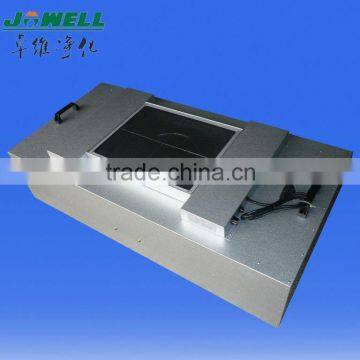

Fan filter unit filter
1.Available of efficiency of 99.999% on 0.3um
2.High performance and low noise
3.Diversified design

Fan Filter Unit

Fan Filter Units are high clean instruments for clean rooms, especially for semiconductor, LCD industry. They are installed on the ceiling and can meet the requirement of large quantities in the clean room. Custom made is available.

Model, dimensions and parameters:

Model			JJ-4-2		JJ-4-4	JJ-2-2
Dimension		mm	1175575230		11751175230	575575230
Air flow		M³/h	1400		2350	800
External static pressure		Pa	98		98	98
Main body		-	Standard	Powder coated steel
			option	Stainless steel(SUS304)

				Galvanized steel

Power supply	Standard	V/Hz	220V 50/60Hz
	Option	V/Hz	Pls contact us if you have any other requirement about the power.
Filter	Efficiency	-	HEPA Over 99.99% @ 0.3um
		-	ULPA Over 99.9995% @ 0.1um
	Frame	-	Galvanized sheet and stoving varnish
Power dissipation		W	120		245	90
Weight		Kg	25		45	15
Shock		m/s²	≤0.4		≤1.1	≤0.4
Noise		Db(a)	≤55		≤55	≤55
Option		-	Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter
