ZHUOWEI Brand CE Certified self-motored FFU HEPA fan filter unit for ceiling module

ISO9001 Certified fan filter unit,4x2 feet Fan Filter Unit,Cleanroom FFU,Fan Filter Unit

Our factory have been the membership of “Onsite Checked”

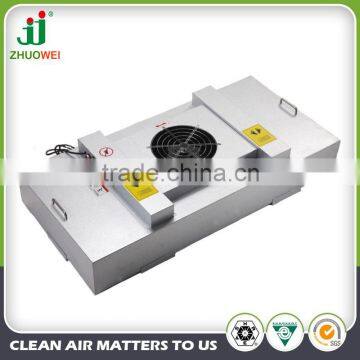

      FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.

      FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25% to100% cover rate), general dimension is 2' * 4' or 4' * 4'.

      Application: FFU's are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc...

1. Nice appearance , human centered design

Add Stainless handle, easy installation and delivery, perpendicular design.

2. High performance and low noise fans

Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours.

3. Light, thin shape

Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.

4. Flexible, diversified design

Except for standard items, custom made is available. Such as choosing kinds of filter net and materials of shell.

5. Concerning, convenient design

Pedals are designed in the body, which makes it convenient to install and repair.

6. Premium Current-averaging design of the inside

Ensures deviation of the blowing side lower than ±10%.

Dimension and technical data:

FAN FILTER UNIT Taiwan Motor( 50,000 hours)
