Bellow Sealed Globe Valve

Specifications

Bellow Sealed Globe Valves are Applicable for the Cutting and Connection of Pipelines Medium That are Used in Various Industries Such as Petroleum, Chemical, Pharmacy, Chemical Fertilizer and Electric Power Plants etc under Nominal Pressures from PN1.6Mpa to PN4.0Mpa and Working Temperatures from -20C to 350C Degree.

Features:
*Reasonable Structure, Reliable Sealing, Excellent Performance and Beautiful Appearance

*Sealing Surface is Hard-facing with Cr. Alloy which is Anti-resistant, Corrosion-resistant, Anti-Friction to Ensure a Longer Service Life.

*Stem Of Bellow Sealed Globe Valve are Quenched and Tempered with Nitriding Treatment Which Ensure A Perfect Anti-corrosion and Anti-friction Features.

*Bellow Sealed Globe Valve is With Double Sealing to Ensure a Perfect Operation.

*Bellow Sealed Globe Valve is With Stem Position Indicator to Show More Directly on the Valve On/Off Status.

*Various Main Body or Trim Materials are Available to suit different service conditions.

Technical Specifications:

*Design and Manufacture: DIN3356, BS160, BS5160 or API602

*Face to Face Dimension: DIN3202 or ANSI B16.10,

*Flanged Dimension: DIN2543-2545 or ANSI B16.5

*Socketed Ends to ANSI B16.11

*Inspection and Test: DIN3230, API 598 or MSS SP-117

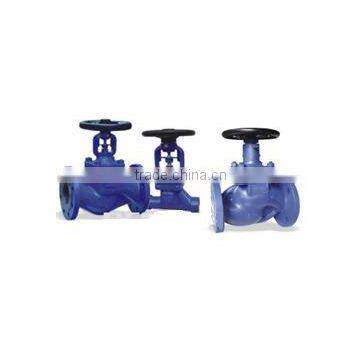

Bellow Sealed Globe Valves are Mainly Divided into Types of “ARI” Type Rising Stem Bellow Sealed Globe Valve, “KSB” Type Non-rising Stem Bellow Sealed Globe Valve and Y Type Bellow Sealed Globe Valve. Available in Forged Steel Bellow Sealed Globe Valve, Cast Steel Bellow Sealed Globe Valve, Chinese STD Bellow Sealed Globe Valve, API Bellow Sealed Globe Valve and DIN Bellow Sealed Globe Valves.
