55 inch Ultra narrow splicing LCD video wall Custom display modules
- shenzhen
- T/T
You May Like
-
2015 new 4K UHD 84 inches 2x2 super large size LCD film video wall
-
whole sale 55 inch samsung did lcd video wall 5.3mm
-
Wholesale 46 inches Samsung LCD Ultra narrow video wall
-
60'' ultra thin splicing lcd monitor multimedia digital lcd video wall interactive
-
47'' ultra narrow splicing LCD screen
-
42-65 inch lcd video wall LCD vedio wall, support HDMI input and build in controller
Product Details
Place of Origin | Guangdong, China | Brand Name | PROPAD | |
Model Number | UYP-55-UNE | Type | TFT |
Product Description
Specifications
Ultra narrow splicing LCD video wallCertification: CE , RoHS , FC
Brand: PROPAD
LCD Video wall
About product
Characters of UYP series super-slim splicing screen :
(1) Flat-fell seam between the non-display area is only
6.7 mm;
(2) Using Yitelang image point pixel dynamic cutting processing technology to compensate for the
details of image, it can make the low pixel image display clearly;
(3) The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on;
(4) LCD product itself with low power consumption and last much longer.
(5) Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;
(6). Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation. You are welcome to visit our factory
Specification
Model | ETP-46-UN | ETP-47-UN | ETP-55-UN | ETP-60-UN |
Resolution ratio | 1366*768P | 1920*1080P | 1365*768P | |
Appreance size | 1025.6*580*105mm | 1046.8*591.6*93.5mm | 1215.4*686.1*122mm | 1322.3*745.7*71mm |
Display area | 1018.9*573.3mm | 1039.87*584.64mm | 1209.9*680.6mm | 1318.6*741.9mm |
Maximum power | 250W | 250W | 350W | 500W |
Rated Power | 180W | 180W | 280W | 420W |
Bilateral splicing seam | 6.7mm | 6.3mm | 5.3mm | 2.8mm |
Total weight | 24.7KG | 25.4KG | 34.6KG | 26.3KG |
Brightness | 700cd/m2 | 1700cd/m2 | ||
Contrast | 3000:1 | 1000000:1 | ||
Reponse time | 8ms | 0.001ms | ||
Visual angle | 178° | 179° | ||
Line frequency | 65-70Hz | Subdomain drive 600Hz | ||
Field frequency | 60Hz | |||
Color system | PAL/NTSC | |||
Input/Output | 1Vp-p, 75 Ω ,BNC×2 | |||
HDMI/DVI/VGA input | ×1 | |||
Communiation interface | Rs232 loops input/output | |||
Power | AC110V-240V, 50/60Hz | |||
Temperature | 0-60°C | |||
Humidity | 10%~90% | |||
Operation | PC control software for the big screen | |||
Cooling | Intelligent temperature control cooling system | |||
Case Material | SPCC | |||
Installation | Cabinet type/Floor-type/Wall-mounted |

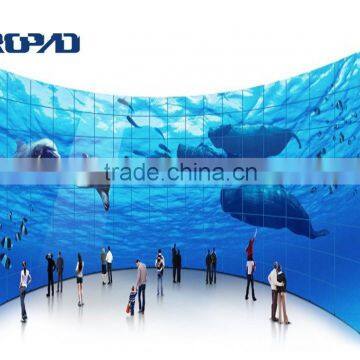

Photos Show:
About us
Shenzhen Yitelang co.,ltd was founded in November,2005,one of the most powerful and professional manufacturers in China.It belonging to high-tech enterprises in Shenzhen.Yitelang is located in the beautiful and elegant, convenient transportation of Yeming Mould industrial park of Guangming disturict in Shenzhen,our factory covers an area of 50000 square meters,and now we have more than 300 employees on production, research, development and sales.
