Home > Products > LCD video wall > Wholesale 46 inch Samsung LCD Ultra-narrow video wall,LCD splicing sreen,advertising wall

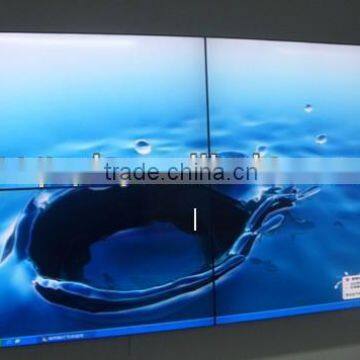

Wholesale 46 inch Samsung LCD Ultra-narrow video wall,LCD splicing sreen,advertising wall
Negotiable
/ Piece
4 Pieces(Min.Order)
- 300 Piece / Pieces per Month
- Shenzhen
You May Like
-
Wholesale - 46 inch Samsung LCD Ultra-narrow video wall,LCD splicing sreen,advertising wall
-
42 inch Seamless plasma video wall 1.8mm super narrow bezel plasma panel
-
55 inch Samsung LCD Ultra-narrow video wall,LCD splicing sreen,advertising wall/standing floor LCD
-
46 inch Samsung LCD Ultra-narrow video wall, seamless lcd display wall,advertising wall
-
Ultra narrow splicing LCD video wall
-
46'' ultra narrow lcd splicing wall(6.7mm)/Samsung DID LCD wall/video wall
Product Details
| Place of Origin | Guangdong, China | Brand Name | PROPAD | |
| Model Number | ETP-46-UN | Type | TFT | |
| Application | Indoor | Panel Size | 46'',1025.6*580*105mm | |
| Max Resolution | 1366*768 | Viewing Angle | 178° | |
| Pixel Pitch | 0.7455(H)X0.7455(V) | Color | 8 Bit | |
| Contrast Ratio | 3000:1 | Brightness | 700cd/m2 | |
| Response Time | 8ms | Input Voltage | AC220V |
Product Description
Specifications
46" super slim splicing LCD wallBrand: PROPAD
Compatible size: 46''
Certification: CE , RoHS , FC
46" super slim splicing LCD wall
| Model | ETP-46-UN | ETP-47-UN | ETP-55-UN | ETP-60-UN |
| Resolution ratio | 1366*768P | 1920*1080P | 1365*768P | |
| Appreance size | 1025.6*580*105mm | 1046.8*591.6*93.5mm | 1215.4*686.1*122mm | 1322.3*745.7*71mm |
| Display area | 1018.9*573.3mm | 1039.87*584.64mm | 1209.9*680.6mm | 1318.6*741.9mm |
| Maximum power | 250W | 250W | 350W | 500W |
| Rated Power | 180W | 180W | 280W | 420W |
| Bilateral splicing seam | 6.7mm | 6.3mm | 5.3mm | 2.8mm |
| Total weight | 24.7KG | 25.4KG | 34.6KG | 26.3KG |
| Brightness | 700cd/m2 | 1700cd/m2 | ||
| Contrast | 3000:1 | 1000000:1 | ||
| Reponse time | 8ms | 0.001ms | ||
| Visual angle | 178° | 179° | ||
| Line frequency | 65-70Hz | Subdomain drive 600Hz | ||
| Field frequency | 60Hz | |||
| Color system | PAL/NTSC | |||
| Input/Output | 1Vp-p, 75 Ω ,BNC×2 | |||
| HDMI/DVI/VGA input | ×1 | |||
Communiation interface | Rs232 loops input/output | |||
| Power | AC110V-240V, 50/60Hz | |||
| Temperature | 0-60°C | |||
| Humidity | 10%~90% | |||
| Operation | PC control software for the big screen | |||
| Cooling | Intelligent temperature control cooling system | |||
| Case Material | SPCC | |||
| Installation | Cabinet type/Floor-type/Wall-mounted | |||
Features
(1) Flat-fell seam between the non-display area is only 6.7 mm;
(2) Using Yitelang image point pixel dynamic cutting processing technology to compensate for the details of image, it can make the low pixel image display clearly;
(3) The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on;
(4) LCD product itself with low power consumption and last much longer.
(5) Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;
(6). Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.
PS:
I want to see more Ultra Narrow Samsung LCD video wall which is seamless 5.5mm.
