Home > Products > LCD video wall > 55 inch Samsung LCD Ultra-narrow video wall,LCD splicing sreen,advertising wall/standing floor LCD

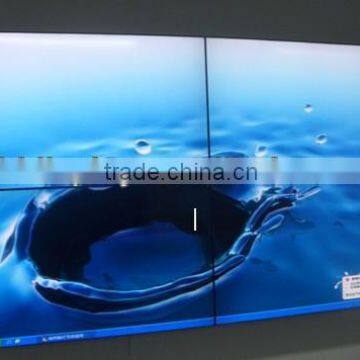

55 inch Samsung LCD Ultra-narrow video wall,LCD splicing sreen,advertising wall/standing floor LCD

FOB Price

Negotiable / Piece

4 Pieces(Min. Order)

Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PROPAD
Model Number	ETP-55-UN	Application	Indoor
Panel Size	46'',1025.6580105mm	Max Resolution	1366*768
Viewing Angle	178°	Pixel Pitch	0.7455(H)X0.7455(V)
Color	8 Bit	Contrast Ratio	3000:1
Brightness	700cd/m2	Response Time	8ms
Input Voltage	AC220V

Product Description

Specifications

55" super slim splicing LCD wall
Brand: PROPAD
Compatible size: 55''
Certification: CE , RoHS , FC

46" super slim splicing LCD wall

Model	ETP-46-UN	ETP-47-UN	ETP-55-UN	ETP-60-UN
Resolution ratio	1366*768P	1920*1080P		1365*768P
Appreance size	1025.6580105mm	1046.8591.693.5mm	1215.4686.1122mm	1322.3745.771mm
Display area	1018.9*573.3mm	1039.87*584.64mm	1209.9*680.6mm	1318.6*741.9mm
Maximum power	250W	250W	350W	500W
Rated Power	180W	180W	280W	420W
Bilateral splicing seam	6.7mm	6.3mm	5.3mm	2.8mm
Total weight	24.7KG	25.4KG	34.6KG	26.3KG
Brightness	700cd/m2			1700cd/m2
Contrast	3000:1			1000000:1
Reponse time	8ms			0.001ms
Visual angle	178°			179°
Line frequency	65-70Hz			Subdomain drive 600Hz
Field frequency	60Hz			Subdomain drive 600Hz
Color system	PAL/NTSC
Input/Output	1Vp-p, 75 Ω ,BNC×2
HDMI/DVI/VGA input	×1
Communiation interface	Rs232 loops input/output
Power	AC110V-240V, 50/60Hz
Temperature	0-60°C
Humidity	10%~90%
Operation	PC control software for the big screen
Cooling	Intelligent temperature control cooling system
Case Material	SPCC
Installation	Cabinet type/Floor-type/Wall-mounted

Features

(1) Flat-fell seam between the non-display area is only 6.7 mm;

(2) Using Yitelang image point pixel dynamic cutting processing technology to compensate for the details of image, it can make the low pixel image display clearly;

(3) The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on;

(4) LCD product itself with low power consumption and last much longer.

(5) Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;

(6). Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.
