Home > Products > HDCVI DVR & Camera > 1Megapixel 720P Cost-effective IR HDCVI Mini Dome Camera

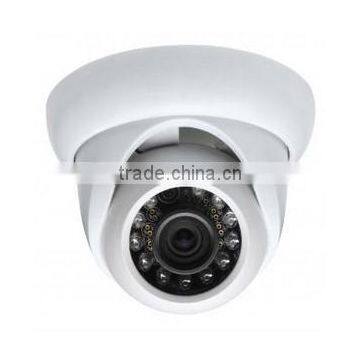

1Megapixel 720P Cost-effective IR HDCVI Mini Dome Camera
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LINOVISION | |
| Model Number | HAC-HDW1100S | Type | Other, Analog Camera, HDCVI camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Other, HDCVI | Special Features | Other, Smart IR |
Product Description
Model
HAC-HDW1100SP: 1MP HDCVI camera, 25fps@720P(1280×720), 3.6mm lens(2.8mm, 6mm, 8mm optional), IR LED, PAL video format
HAC-HDW1100SN: 1MP HDCVI camera, 30fps@720P(1280×720), 3.6mm lens(2.8mm, 6mm, 8mm optional), IR LED, NTSC video format
Features
- 1/2.9" 1Megapixel CMOS
- 25/30fps720P
- High speed, long distance real-time transmission
- Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
- Max. IR LEDs length 20m, Smart IR
- DC12V
Specification
Model | HAC-HDW1100SP | HAC-HDW1100SN |
Camera | ||
Image Sensor | 1/2.9" 1Megapixel CMOS | |
Effective Pixels | 1280(H) x720(V) | |
Electronic Shutter | 1/50s~1/100,000s | 1/60s~1/100,000s |
Video Frame Rate | 720P25 fps | 720P30 fps |
Synchronization | Internal | |
Min. Illumination | 0.01LuxF1.2(AGC ON),0Lux IR on | |
Video Output | 1-channel BNC HDCVI high definition video output | |
Camera Features | ||
Max. IR LEDs Length | 20m, Smart IR | |
Day/Night | Auto(ICR) / Color / B/W | |
Noise Reduction | 2D | |
Lens | ||
Focal Length | 3.6mm (2.8mm, 6mm, 8mm optional) | |
Mount Type | M12 | |
General | ||
Power Supply | DC12V±10% | |
Power Consumption | Max 2.5W | |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
Transmission Distance | Over 500m via 75-3 coaxial cable | |
Dimensions | Φ113.6mm × 85.4mm | |
Weight | 200g | |
Dimension (mm)
WEB, Mobile App and CMS:
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
Think IP camera, think Linovision.
In the last 8 years, we are proud of designing and manufacturing a complete line of IP cameras, as well as DVRs, NVRs, IP Speed Domes, PC based DVRs, management software, PoE switches, etc.
With headquarters in the city of Hangzhou (China), we are working closely with several world-leading manufacturers here, like Hikvision, Dahua, etc.
Our Core Competence includes:
- Excellent product quality as you can expect from other big brands;
- Capable of hardware/software customization according to your specific requirements;
- Faster response and speed delivery;
- We insist on win-win cooperation, most of our partners are growing together with us in the last 5 years.
