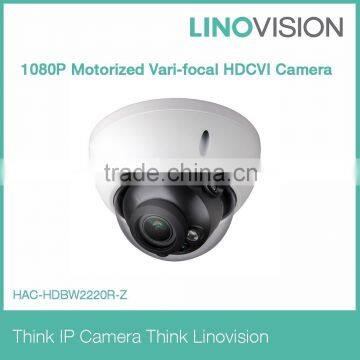

2.4MP IR Motorized Vari-focal Dome HDCVI camera
- Shanghai
- Credit Card
You May Like
-
Linovision Smart IP Surveillance Solutions IPC PTZ NVR Integrating IVS functions
-
Best Outdoor Station of 2 Way Wired IP Network Intercom System for Villa
-
Outdoor Station of 2 Wire IP Network Intercom for Villa
-
7-inch Color Indoor Monitor of 2 Wire IP Network Intercom for Villa
-
Outdoor Station of POE IP Network Intercom for Villa
-
Outdoor Station of IP Network Intercom for Villa
Product Details
Place of Origin | Zhejiang, China | Brand Name | Linovision | |
Model Number | HAC-HDBW2220R-Z | Type | Other, Analog Camera, HDCVI camera | |
Style | Dome Camera | Sensor | CMOS | |
Technology | Infrared | Special Features | Vandal-proof |
Product Description
Specifications
- 2.4MP dome HDCVI camera- 30M IR distance
- 2.7~12mm motorized lens
- 2DNR, AWB, AGC, BLC, ICR
- IP66, IK10
Model
HAC-HDBW2220R-Z: 2.4MP Dome HDCVI camera, 25/30fps: 1080P(1984×1225), 25/30/50/60fps: 720P(1280×720), 2.7~12mm Motorized lens, IR LED, IP66, IK10
Features
> 1/2.8" 2.4Megapixel CMOS
> 25/30: 1080P, 25/30/50/60fps: 720P
> High speed, long distance real-time transmission
> HD and standard definition switchable
> OSD Menu, control over coaxial cable
> Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
> 2.7~12mm motorized lens
> Max. IR LEDs length 30m, Smart IR
> IP66, IK10, DC12V
Specification
Model | HAC-HDBW2220R-Z |
Camera | |
Image Sensor | 1/2.8" 2.4Megapixel CMOS |
Effective Pixels | 1984(H)×1225(V) |
Electronic Shutter | 1/3s~1/100,000s |
Video Frame Rate | 25/30/50/60fps: 720P; 25/30fps: 1080P |
Synchronization | Internal |
Min. Illumination | 0.05Lux: F1.2(AGC ON), 0Lux IR on |
Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
Camera Features | |
Max. IR LEDs Length | 30m, Smart IR |
Day/Night | Auto(ICR) / Color / B/W |
Noise Reduction | 2D/3D |
OSD Menu | Support |
Lens | |
Focal Length | 2.7~12mm motorized |
Lens Type | Motorized / Fixed Iris |
Mount Type | Φ14 |
General | |
Power Supply | DC12V±10% |
Power Consumption | Max 5W |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
Transmission Distance | Over 300m via 75-3 coaxial cable |
Ingress Protection | IP66 & IK10 |
Dimensions | Φ122mm×89mm |
Weight | 0.45kg |
Dimension (mm)
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
