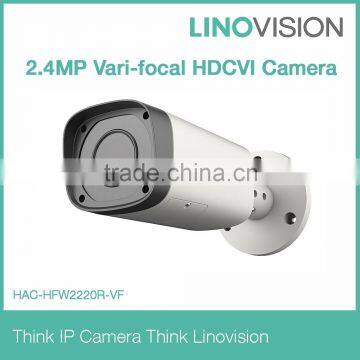

2.4Megapixel 1080P Water-proof HDCVI IR-Bullet Camera
- shanghai
- Credit Card
You May Like
-
720P Water-proof IR HDCVI Mini Dome Camera
-
1.4Megapixel 720P Vandal-proof IR HDCVI Dome Camera
-
1.4Megapixel 720P Water-proof IR HDCVI Camera
-
1.4Megapixel 720P Vandal-proof IR HDCVI Dome Camera
-
1.4Megapixel 720P Water-proof HDCVI IR-Bullet Camera
-
1Megapixel 720P Cost-effective IR HDCVI Mini Dome Camera
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LINOVISION | |
| Model Number | HAC-HFW2220R-Z | Type | Other, Analog Camera, HDCVI camera | |
| Style | Bullet Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Other, Water-proof |
Product Description
Model
HAC-HFW2220R-Z: 2.4MP HDCVI camera, 25/30@1080P, 25/30/50/60fps@720P , 2.7~12mm motorized lens, ICR,IR LED, IP66.
Features
- 1/2.8" 2.4Megapixel CMOS
- 25/30@1080P, 25/30/50/60fps@720P
- High speed, long distance real-time transmission
- HD and standard definition switchable
- OSD Menu, control over coaxial cable
- Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
- 2.7~12mm motorized lens
- Max. IR LEDs length 30m, Smart IR
- IP66, DC12V
Specification
Model | HAC-HFW2220RP-Z | HAC-HFW2220RN-Z |
Camera | ||
Image Sensor | 1/2.8" 2.4Megapixel CMOS | |
Effective Pixels | 1984(H)×1225(V) | |
Electronic Shutter | 1/3s~1/100,000s | |
Video Frame Rate | 25/30/50/60fps720P; 25/30fps1080P | |
Synchronization | Internal | |
Mini. Illumination | 0.05LuxF1.2(AGC ON), 0Lux IR on | |
Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
Camera Features | ||
Max. IR LEDs Length | 30m(60m optional), Smart IR | |
Day/Night | Auto(ICR) / Color / B/W | |
Noise Reduction | 2D/3D | |
OSD Menu | Support | |
Lens | ||
Focal Length | 2.7~12mm motorized | |
Lens Type | Motorized / Fixed Iris | |
Mount Type | F14 | |
General | ||
Power Supply | DC12V±10% | |
Power Consumption | Max 7.5W | |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
Transmission Distance | Over 300m via 75-3 coaxial cable | |
Ingress Protection | IP66 | |
Dimensions(W×D×H) | 213mm×80mm×72mm | |
Weight | 0.55kg | |
Dimension (mm)
WEB, Mobile App and CMS:
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
