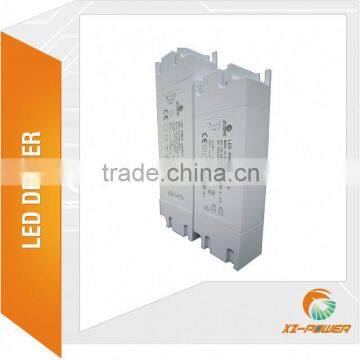

XZ-CI16B 0-10V Triac Dimmable Hot Sell 14-29V 200-500mA led constant current driver

XZ-CI16B 0-10V Triac Dimmable Hot Sell 14-29V 200-500mA led constant current driver

Item No

XZ-CI16B

Type

0-10V Dimmable Constant Current led driver

Structure

external isolated dimmable led driver

Input Volatage

100-277V

Output Voltage

27-45V

 14-29V

Output Current

200-350mA

200~500mA

Efficiency

0.84

0.86

Output Power

3~16W

Power Factor

0.9

Current Accuracy

±5%

Working Tem

from-10°C to 45°C

Protection

Short circuit/over current/over voltage

Dimension

L120*W40*H27mm

Certificate

TUV Approving

MOQ

200Pcs

Warranty

2 years

Model

Power

Input Voltage

Output Voltage

Output Current

Current Accuracy

Efficiency

(PF)

Dimension

L*W*H

XZ-CI16B

16W series

100-277V

27-45V

200-350MA

±5%

84%

0.9

L120*W40*H27

14-29V

200-500MA

84%

0.9

XZ-CI25B

25W series

100-277V

27-45V

360-550MA

±5%

86%

0.9

L120*W40*H27

14-29V

500-750MA

86%

0.9

XZ-CI35B

35W series

100-277V

27-45V

560-750MA

±5%

87%

0.9

L145*W42*H29

XZ-CI45B

45W series

100-277V

27-45V

760-1050MA

±5%

88%

0.9

L145*W42*H29

Why Choosing Xiezhen LED Power Supply

PROFESSION

30 R&D staff with more than 5-year experience in LED driver development

More than 20 production lines making LED drivers since 2009

STRENGTH

All products are made with strict ISO system, 100% Burn-in tested

Fast Customized LED Driver development

QUALITY

Product 100% burn-in tested, Qualified rated>99.9%

Certificated by CE PSE UL TUV CQC CB SAA

Service

Inquiry Replied within 24 hours

Sample delivered in 1~3 days, batch product delivered in 3~15 days

10 working days for a new customized LED driver
