Home > Products > All Products > Xz-power dc Output 630ma Built in Dimming Led Driver

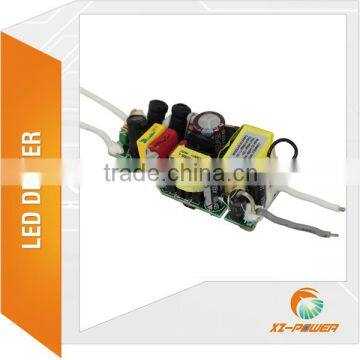

Xz-power dc Output 630ma Built in Dimming Led Driver
- SHENZHEN PORT
- T/T Credit Card
You May Like
-
XZ-POWER Led Driver 40w 27-35v Five Years Warranty
-
XZ-POWER Led Driver Single Output 27-42v Consant Currenty 50w
-
Xz-power Led Interminal Driver Factory Fcc ul Led Down Lights Driver
-
Made in China 20W Constant Current Led Drivers Indoor High Quality Led Driver
-
Made in China 20W Constant Current Led Drivers Indoor Led Power Supply
-
Made in China 20W Constant Current Led Drivers Indoor Led Switching Power Supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | XZ-power | |
| Model Number | XZ-DI09B | Output Power | Other, up to 9w | |
| Output Type | Single | Input Voltage | Other, 100-127v | |
| Output Voltage | 11-14V | Output Frequency | 47-63HZ | |
| Output Current | 630mA |
Product Description
xz-power dc output 630ma built in dimming led driver
| xz-power dc output 630ma built in dimming led driver | |
Output DC Voltage Range | 11-14V |
Output Rated Current Range | 630mA |
Output Rated Power | up to 9W |
Output Load Regulation | ±5% |
Output Turn On Time | 0.5S max. @ input 100 - 277 Vac & max. load |
Input Voltage Range | 100-127Vac |
Input Frequency Range | 47-63HZ |
Input Power Factot Typ.@230V | 0.9 mini @ full load |
Efficiency Typ.@230V | 78% mini @ full load |
AC Current | 0.3A max. @ input 100Vac & max. load |
Input Inrush Current (Typ.) | 50A max. @ input 277Vac & max. load |
THD (Total Harmonic Dist.) | 10%~20% at full load |
Protection | Short circuit/over current/over voltage |
| |
| |
Why Choosing Xiezhen LED Power Supply |
PROFESSION |
30 R&D staff with more than 5-year experience in LED driver development |
More than 20 production lines making LED drivers since 2009 |
STRENGTH |
All products are made with strict ISO system, 100% Burn-in tested |
Fast Customized LED Driver development |
QUALITY |
Product 100% burn-in tested, Qualified rated>99.9% |
Certificated by CE PSE UL TUV CQC CB SAA |
Service |
Inquiry Replied within 24 hours |
Product Delivered in 3~15 days |
10 working days for a new customized LED driver |
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
products have got TUV CEW CB SAA UL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
5 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 200 pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from SHENZHEN port
6. How about your delivery time?
3-7 working days according the order.
If you are interested more XZ power products, please visit our website
Contact Us
- Shenzhen Xiezhen Electronics Co., Ltd.
- Contact nameRita Woo Chat Now
- Phone86-755-23701022
- AddressBuilding 42 Xicheng Industrial Park Xixiang, Shenzhen, Guangdong
