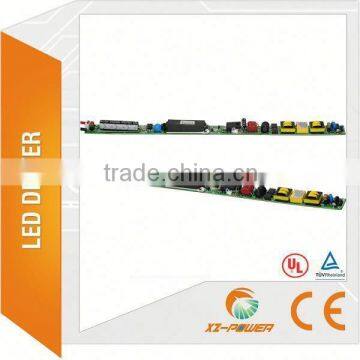

XZ-TP30B

$key$

Item No

XZ-TP30B

Type

Constant Current

Structure

internal isolated led tube driver

Input Volatage

100-240V/100-277V

Output Voltage

35-50V

Output Current

560-700mA

Output Power

19~30W

Power Factor

>0.9

Efficiency

87%

Current Accuracy

±5%

Working Tem

from-10°C to 45°C

Protection

Short circuit/over current/over voltage

Dimension

280*17*10mm

Feature

EMC Passed CE passed UL processing

N.W/200pcs

13Kg

G.W/200pcs

12Kg

Packing Size

280*17*10mm

MOQ

200pcs

Warranty

3 years

  Model

Power Consumption

  Input Voltage

  Output Voltage

  Output Current

  Current Accuracy

  Efficiency

  PF

  Dimension L*W*H

XZ-TP12B

12 w series

100-240V

30-40V

130-370MA

±5%

0.84

0.9

L220*W17*H10

100-277V

XZ-TP22B

22 w series

100-240V

30-40V

300-550MA

±5%

0.87

0.9

L250*W17*H10

100-277V

XZ-TP30B

30 w series

100-240V

35-40V

560-700MA

±5%

0.87

0.9

L280*W17*H10

100-277V

35-50V

560-650MA

Why Choosing Xiezhen LED Power Supply

PROFESSION

30 R&D staff with more than 5-year experience in LED driver development

More than 20 production lines making LED drivers since 2009

STRENGTH

All products are made with strict ISO system, 100% Burn-in tested

Fast Customized LED Driver development

QUALITY

Product 100% burn-in tested, Qualified rated>99.9%

Certificated by CE PSE UL TUV CQC CB SAA

Service

Inquiry Replied within 24 hours

Product Delivered in 3~15 days

10 working days for a new customized LED driver
