10% and 15% CCA Wire cladding &drawing production Line machines

NO.

Copper by area volume %

10%

15%

1

Copper by weight %

30%

38%

2

Clad Machine model

VTL-14

3

Clad machine total power

35KW

4

Aluminum rod (mm) material

12.7mm

12.4mm

5

Copper strip (mm) material

0.40mm*44mm

0.52mm*44mm

6

Diameter after cladding

14mm

7

Suitable for get outlet final wire size

0.12-0.5mm

8

Cladding speed

6-8 meter/minute

9

Daily production capacity

1000kgs/8hours

NO.

Item

1

Surface Pretreatment peeling of aluminum rod

2

Slitting the copper sheet into narrow suitable ready for cladding

3

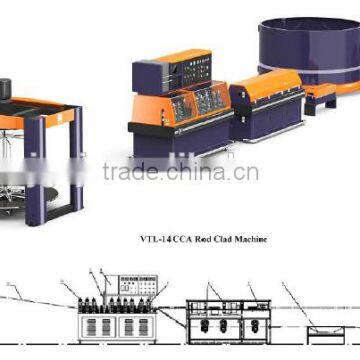

Use 1 set VTL-14 CCAM rod clad machine to get the 14mm CCAM rod

4

Primary drawing step:

Use the 2 set VDL-1200B heavy force single block drawing machine to drawing 14mm CCA rod to final 8.0mm

5

Secondly drawing step:

Use the 1 set VLL3/1200B heavy force 3 block continuous rod drawing machine to drawing 8mm CCA rod to final 3mm

6

Wire surface polishing & take-up.

Use 1 set VDL-800S wire drawing machine and 1 set WS-630 eddy current tester machine and 1 set  VGS-800 spool take-up machine to take up 3.0mm CCA wire.

7

Third drawing step : Use CJ-18DL intermediate wire drawing machine to get outlet 0.4-0.8 mm CCAM wire.

8

Fourth drawing step : use CJ-24DL fine wire drawing machine to get outlet 0.12-0.40mm CCAM wire.

9

Do the annealing and take-up of the CCAM wire.

10

Package the coil type CCAM wire , and sales to market
