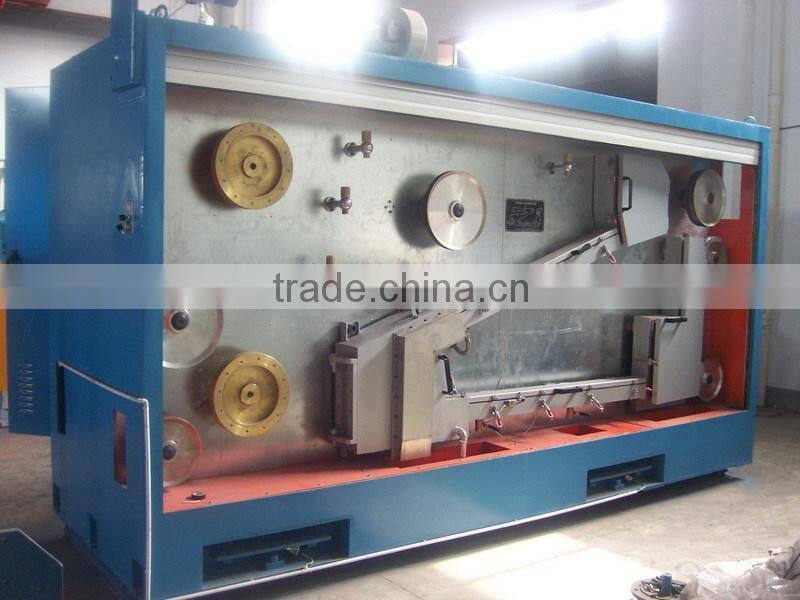

Suzhou Chengjun Copper Wire Intermediate Small Wire Draiwng and On-line Annealing Machine

Copper wire annealing machine/On-line annealing for wire draiwng

Main structure & Features

 The annealing voltage will vary according to the wire diameter and the speed of the wire drawing machine automatically. It also has a longer preheating section and a longer cooling section.

The annealing power is transferred via the flat belt of the capstan in wire drawing machine. That may also use the frequency converter to drive it directly.

All the wire wheels and the wheels of tension device must have the ceramic coating treatment to reduce the damage from direct contact between the wheels and the wires. In addition, the preheating section may be adjusted to the wire diameter.

Technical Parameters

nnealing part:(DC annealing)

Annealing machine  Host structure: Q235

1.Equipment usage: no-waste wire annealing machine, connected to the rear of the wire drawing machine.

2. Annealing wire diameter: 0.6-0.30mm

3.Annealing line speed:1200MPM-300MPM(match the wire drawing speed).

4.Max. Annealing voltage: DC60V

5.Max.annealing current: DC600A

6.Total annealing power:  DC35KVA

7.Annealing mode: DC three-

8. Power      380V   50HZ( or according to customers asked power)

9.Annealing voltage control: automatic tracking annealing drawing speed.

10.Steam consumption:10-12kg/h,0.2-0.3Mpa

11.Coolant consumption: 12-18m3/h,0.2-0.25Mpa

12.Compressed air consumption: 10-15m3/h,0.5-0.6Mpa

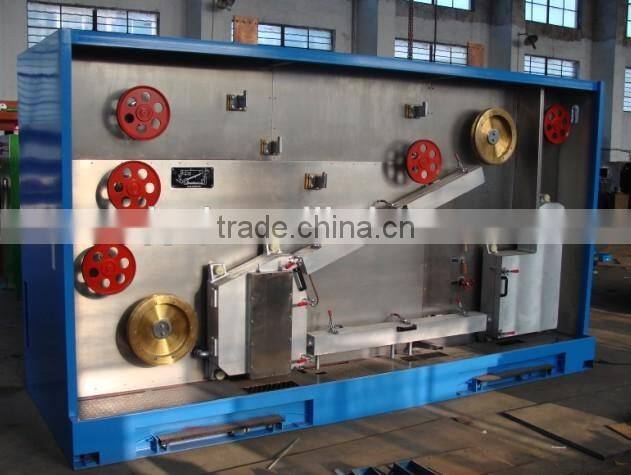

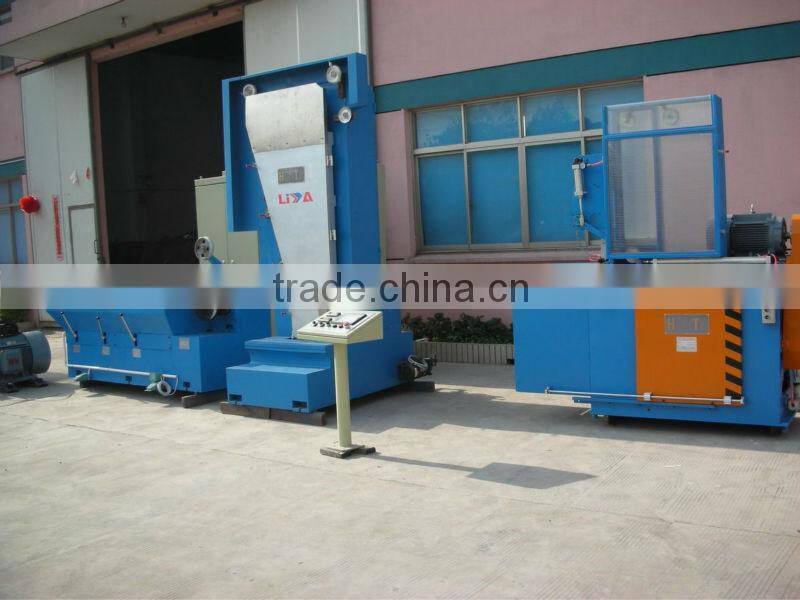

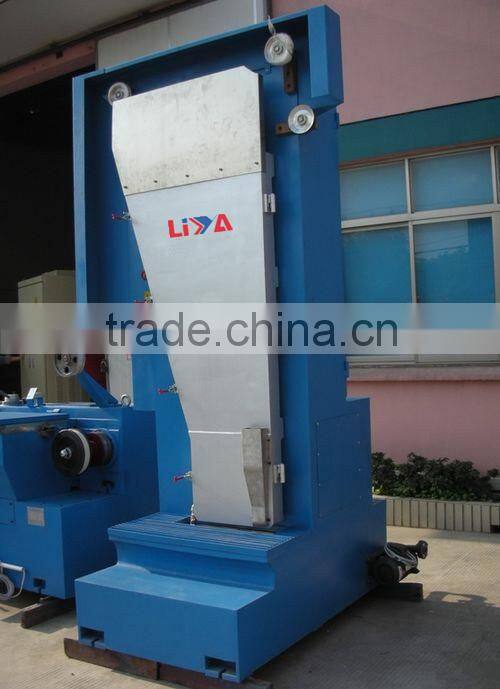

Other model annealer for medium wire annealing and large wire annealing pictures:

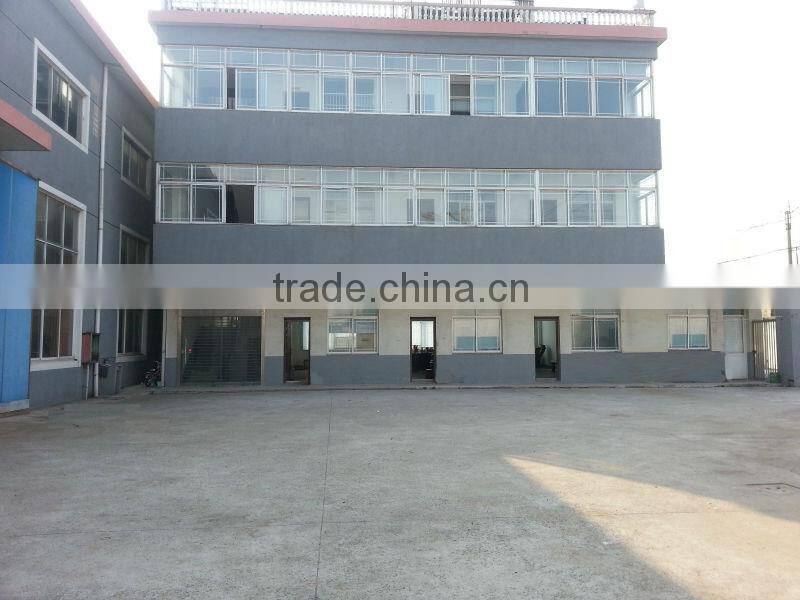

Company&

5. After-Sale Service :

1: In order to help customers are able to operate the machine correctly, trainings on operation,

 maintenance and simple repair can be supplied if necessary.

2: Mechanical parts are provided one-year limited warranty,and electrical parts are six-month since the shipment date.
