Product Details
| Place of Origin | Jiangsu, China | Brand Name | Liya | |
| Model Number | 200P wire twisting machine | Usage | Twisting |
Product Description

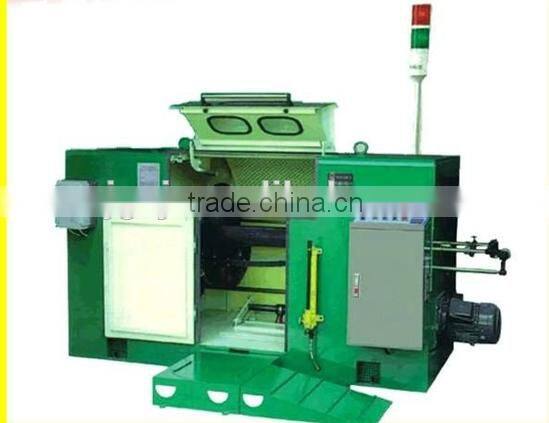

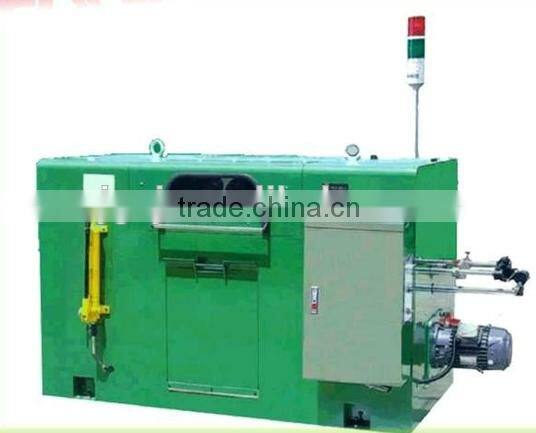

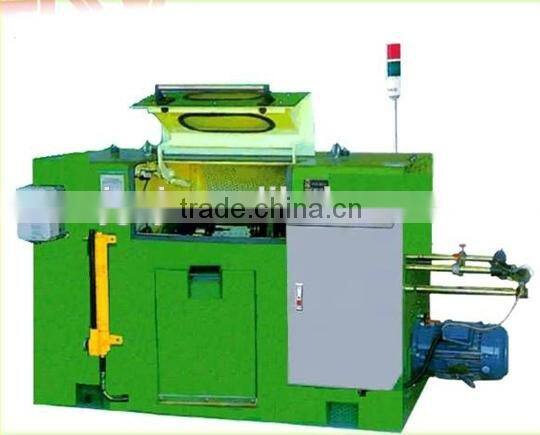

Automatic High Speed 200P Wire bunching Machine
Automatic High Speed 200P Wire bunching Machine
1.High speed, high efficiency.
2.How energy consumption, cost-effective.
Automatic High Speed 200P Wire bunching Machine
Voltage | 380V or by client's request | Traverse-system | Rolling rings,type,pitch adjustable |
power | 5HP motor+5.5HPtransducer | Brake system | Electromagnetic brake |
Twist Distance | 0.51mm2.46mm | controlling of betaken wire | auto stop for in or out wire broken |
widing direction | left or right | wire feeding dia. | 0.0180.035mm |
Size of take-up bobbin | Φ70Φ250 | Lubrication method | Import lubrication system,auto force lubrication |
Best speed of rotation | 6000RPM | Tension controlled | Tension is traced automatic by pole-powder |
intertwist | Apply for copper wire interwist | Noise | About 72db |
sectional area | 0.001780.0067mm 2 | Volume (L*W*H) | 1.9*0.8*1m |
Main Features for Automatic High Speed 200P Wire bunching Machine :
1. It is used for bunching cable, copper or aluminium wire.
2. This machine can adjust speed by frequency change.
3. Working steadily.
4. The twisting machine can automatically brake when the wire is broken.
5. Up and down by hydraulic drive.
After-Sale Service Automatic High Speed Wire Twisting Machine:
1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
