Closed-coupled Centrifugal Pump With Threaded Ports CP220A
Negotiable
1 (Min. Order)
You May Like
Product Details
| Place of Origin | Italy | Brand Name | Pedrollo | |
| Model Number | CP220A | Theory | Centrifugal Pump | |
| Usage | Water | Power | Electric | |
| Fuel | Other, Motor | Application | Other, clean water |
Product Description
Specifications
1. Original Pedrollo Pump.2. High Performance.
3. High Efficiency.
4. Made in Italy.
5. C/W Motor.
Performance Range:
- Flow rate up to 900L/min (54m³/h).
- Head up to 74m.
- With efficiency motor for maximum energy saving "EFF 1".
Installation and Use:
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
- As a result of their reliability and the fact that they are easy to use, these pumps are widely used in civil, agricultural and industrial applications such as suppling water, in conditioning and cooling systems, for irrigation, etc.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
| Model | CP220A |
| Size (Discharge) | 2" x 2" |
| Power (Kw) | 4 Kw |
| Phase | 3 |
| Performance--Flow (L/min) | 50 ~ 450 |
| Perfomance--Head (Meter) | 48.5 ~ 36 |
Electric Motor : CP > three-phase 240/400V - 50Hz up to 4Kw.

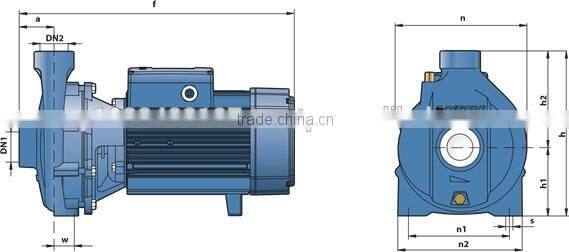

Dimensions:
| Model | CP220A |
| Ports (DN1) | 2" |
| Ports (DN1) | 2" |
| Dimensions (mm) ---a | 70 |
| Dimensions (mm) --- f | 460 |
| Dimensions (mm) ---h | 328 |
| Dimensions (mm) ---h1 | 136 |
| Dimensions (mm) ---h2 | 192 |
| Dimensions (mm) ---n | 273 |
| Dimensions (mm) ---n1 | 190 |
| Dimensions (mm) ---n2 | 250 |
| Dimensions (mm) ---w | 40 |
| Dimensions (mm) ---s | 14 |
