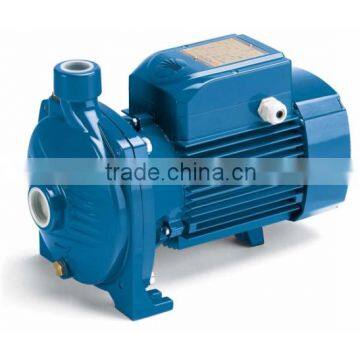

Pedrollo Centrifugal Pumps CPm158, CP158
Negotiable
1 (Min.Order)
You May Like
Product Details
| Brand Name | Pedrollo | Model Number | CPm158, CP158 | |
| Usage | Water | Power | Electric | |
| Fuel | Other, Motor | Application | Other, Clean Water |
Product Description
Specifications
1. Original Pedrollo Pump.2. High Performance.
3. High Efficiency.
4. Made in Italy.
5. C/W Motor.
Performance Range:
- Flow rate up to 160L/min (9.6m³/h).
- Head up to 56m.
Installation and Use:
- Suitable for use with clean water and liquids that are not chemmically aggressive towards the material from which the pump is made.
- As a result of their reliability and the fact that they are easy to use, these pump are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments.
- The pump should be installed in an enclosed environment, or at least sheltered from inclemwnt weather.
| Model | CPm158 | CP158 |
| Size (Discharge) | 1" x 1" | 1" x 1" |
| Power (Kw) | 0.75 Kw | 0.75 Kw |
| Phase | 1 | 3 |
| Performance--Flow (L/min) | 10 ~ 90 | 10 ~ 90 |
| Performance--Head (Meter) | 34 ~25 | 34 ~ 25 |
Electric Motor : CPm > single-phase 230V - 50Hz with thermal overload protector built-in to the winding.
CP > three-phase 230/400V - 50Hz.

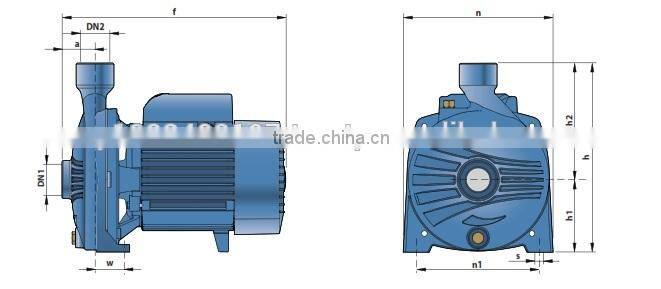

Dimensions:
| Model | CPm158 | CP158 |
| Ports (DN1) | 1" | 1" |
| Ports (DN2) | 1" | 1" |
| Dimensions (mm) ---a | 42 | 42 |
| Dimensions (mm) ---f | 285 | 285 |
| Dimensions (mm) ---h | 240 | 240 |
| Dimensions (mm) ---h1 | 92 | 92 |
| Dimensions (mm) ---h2 | 148 | 148 |
| Dimensions (mm) ---n | 190 | 190 |
| Dimensions (mm) ---n1 | 160 | 160 |
| Dimensions (mm) ---w | 38 | 38 |
| Dimensions (mm) ---s | 10 | 10 |
