Home > Products > New Products > Hot Item DVB-C Digital Cable Receiver TV Tuner

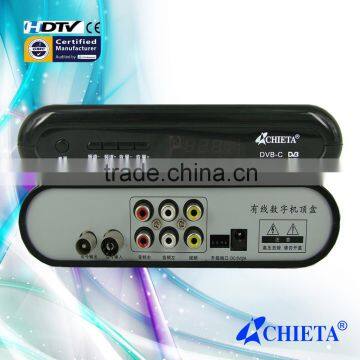

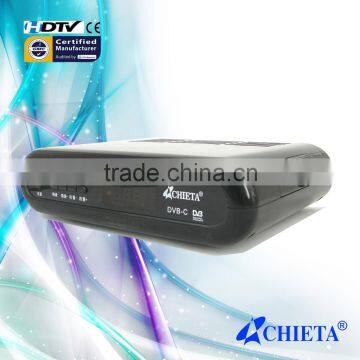

Hot Item DVB-C Digital Cable Receiver TV Tuner

FOB Price

US$ 10 - 20 / Piece

2000 Pieces(Min. Order)

Port Zhuhai/ Shenzhen/ Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Chieta Cable TV Tuner
Model Number	DVB-C 185mm Cable Receiver

Product Description

Hot Item DVB-C Digital Cable Receiver TV Tuner

Product Description

*Fully compliant with DVB-C

*Supports 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

*Supports low frequency LNB

*Multi-CA can be chosen(optional)

*Internal loader suport OTA

*Multi-search function

*PAL/ NTSC auto switch

*Multi language OSD

*Dynamic user interface

*Memory backup when lost power

*Two SCART output

*Composition video signal

*Digital sound output

*Standard EPG, NVOD

*Supports short cut menu

*Games

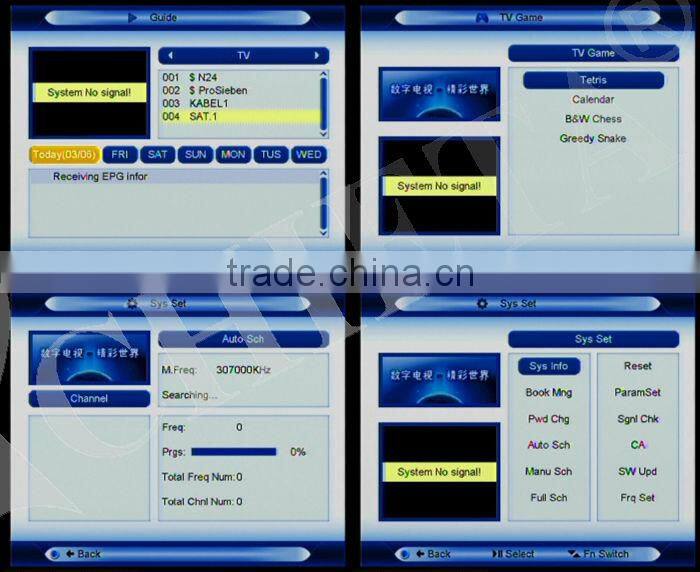

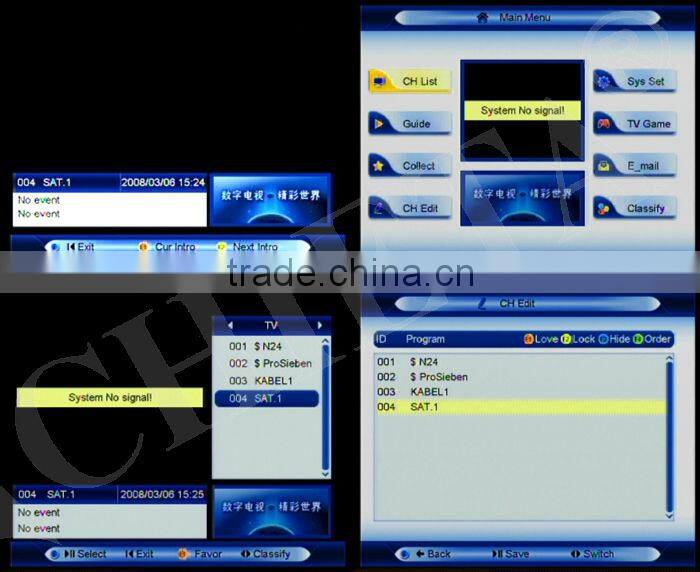

OSD Menu View

NOTICE: Dear Customer, you must contact your cable TV provider before you purchase any cable set top box to ensure they support the use of 3rd party cable set top boxes.

Specification Detail

Hardware Specification
Chip & Board	Main Chip	HM1521M
	SDRAM	DDRi 16M16bit1pc
	TUNER Number	TC2800
	TUNER TYPE	Silicon
Front Panel	LED	Power Indicator (LED):(Standby, Lock) / show channel number and etc.
	Key	7PCS(Power, Up, Down, Left, Right, Confirm& Menu)
	Smart Card Slot	ISO 7816
Rear Panel	Tuner RF input connector	IEC Female x1
	Tuner RF Loop through connector	IEC Male x1
	CVBS	x1
	YPbPr	x1
	DC 5V Output	x1
	4-pin Software Update Port	x1
Basic User Interface Features (common features)
OSD	Supported Language	English, Chinese
OSD	Subtitle	English, Chinese
TV System	Display Mode	720i, 576p, 576i, 480p, 480i
TV System	Aspect Mode	4:3,16:9
System Spec
Video	Decoder	MPEG-1/2 Video Decoder
	Display Resolution	2. 720 * 576(PAL) 720 * 480(NTSC)
	Standard	ISO/ IEC 13818-2 MPEG- 2 MP@ML
Audio	Standard	ISO/IEC -11172-3
	Decoder	MPEG-1 Layer I/II
	Mode	Dual (main/sub), Stereo
	Frequency	44.1,48KHz
	Response	20HZ~20KHZ +/-2Db
	SNR	min.76dB
Input& Output	Input impedance	75Ω
	Signals level	-25dBmV~+25dBmV(64QAM)
	Input Frequency	47MHz-862MHz
	Decoding	16/32 /64 /128 /256 QAM
	Support scope	3.6-6.952MS/s
Power Supply	Power input voltage	DC 5V 50~60Hz
	Power Consumption	10W max
	Operation Temperature	0°C~40°C
