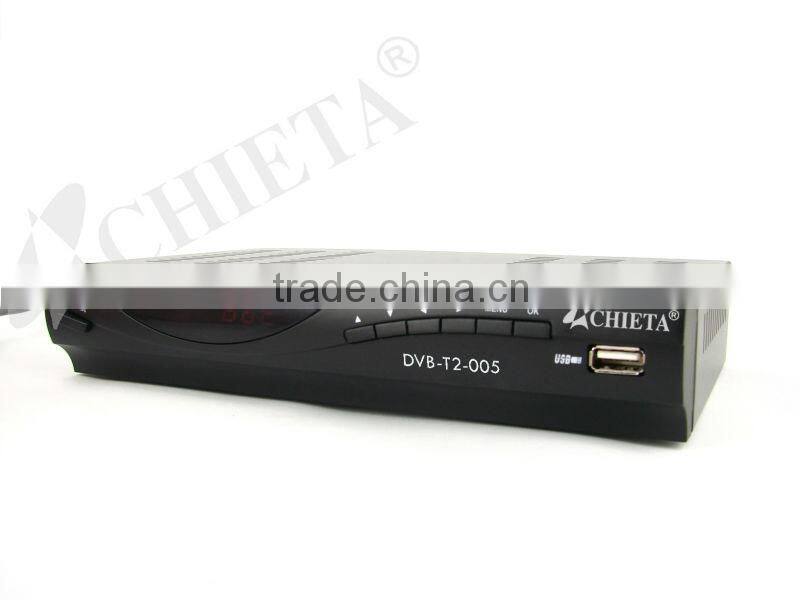

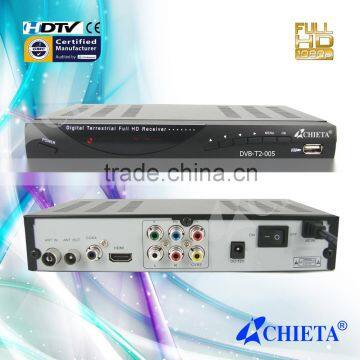

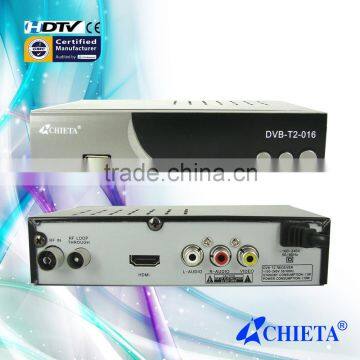

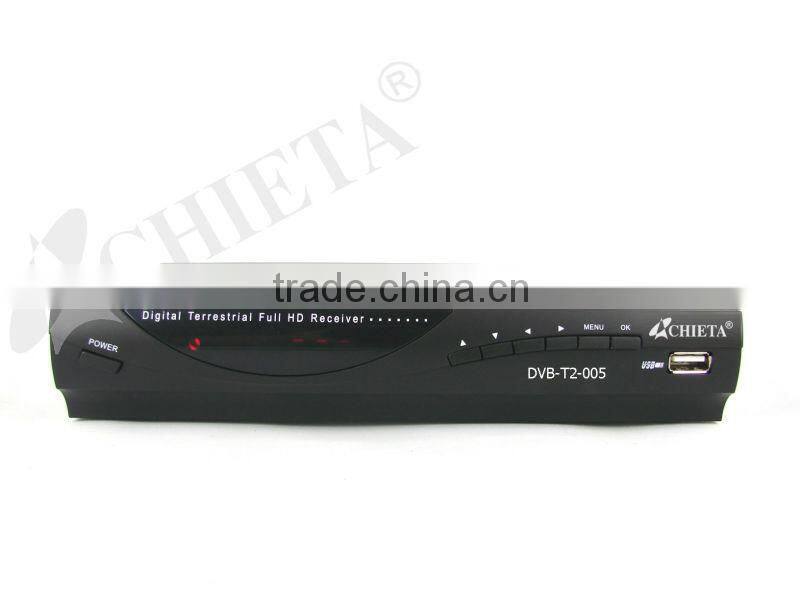

Full HD 1080P DVB-T2 Digital TV Set Top Box MPEG4 H.264 TV Tuner

MPEG4

Fully SD/HD DVB-T/T2,  SD/HD MPEG2 and  MPEG4 AVC H.264

Resolution

Full HD,support up to 1080P

PAN/NTSC

Automatic PAL/NTSC conversion

Scan

Auto and manually scan all available TV and radio channels

Channels Number

Aspect ratio 16:9 and 4:3, 1000 channels memory

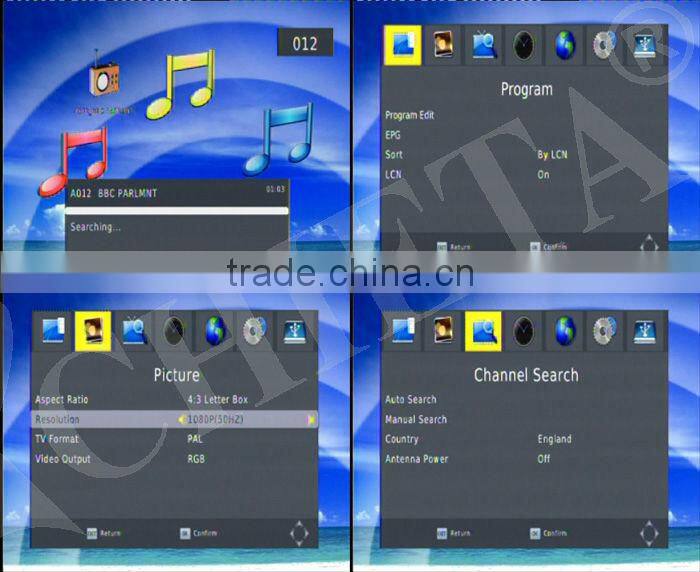

OSD Language

OSD language:Arabic, Bosnian, French, German, Russian, English

EPG

Small windows screen picture with EPG graphic menu,7-Day EPG function

Channel Search

Auto search & Manual search function

SoftUpgrade

Software upgrade via USB

Teletext

Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle, compliant with ETS1

control

Parental control

Save Channel

Automatic save for last channel

LCN

Support Logic Channel Number(LCN)

USB

USB2.0 Front Panel,

Multimedia Format

Picture: JPEG,BMP,PNG

Audio: MP3,WMA

Video: DivX,MPG,MKV,MP4,AV

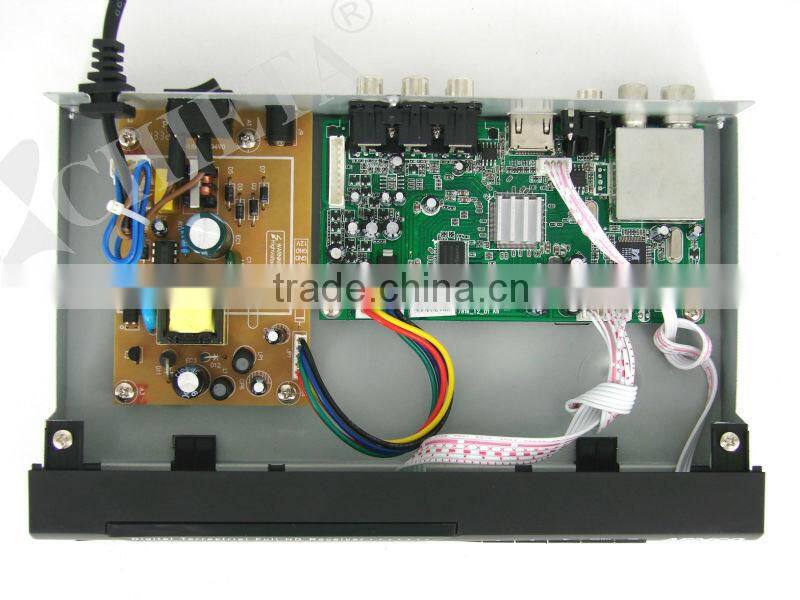

1.Main Chip Set

MSTAR7T01

Flash Memory

32MB Serial Flash

DDR2 Memory

512MB

Demodulator IC

1236C

2.Tuner

Input Frequency

VHF:  174~230MHz,UHF: 470~862MHz

RF input Level

-20~-81dBm

IF Bandwidth

7MHZ and 8MHZ

Modulation

QPSK,16QAM,64QAM,256QAM

3.USB Decode

DVR supporting

Stereo/MONO/Left/Right

Media Supporting

USB2.0 Port, playback the media in USB flash disk or USB HDD

USB2.0 HOST

DVR with USB HDD, Time shifting with USB HDD

4.Multimedia support format

music

MP3,WMA


JPEG,BMP,PNG

5.Video Decode

Decode Format

MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional)

Output Format

1080p,1080i,720p,576p,576i,480p,480i

Aspect Ratio

4:3/16:9/Letterbox/ selectable

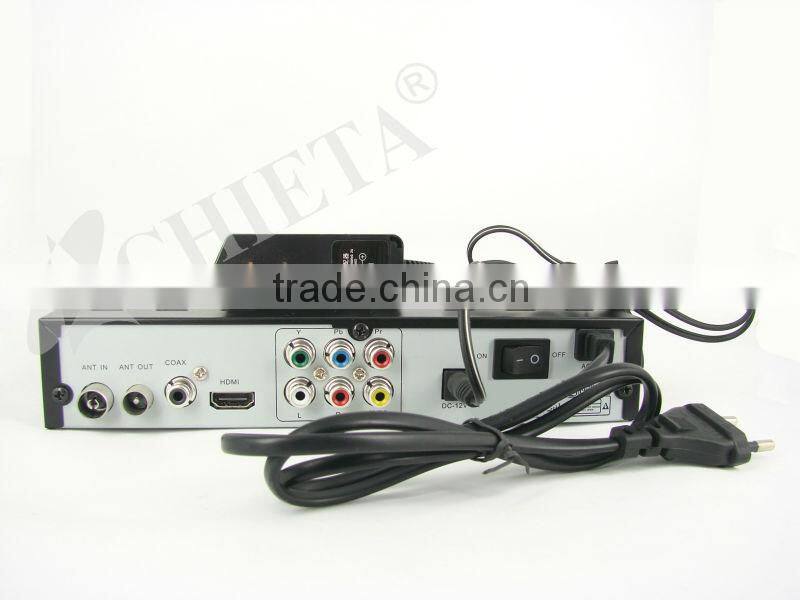

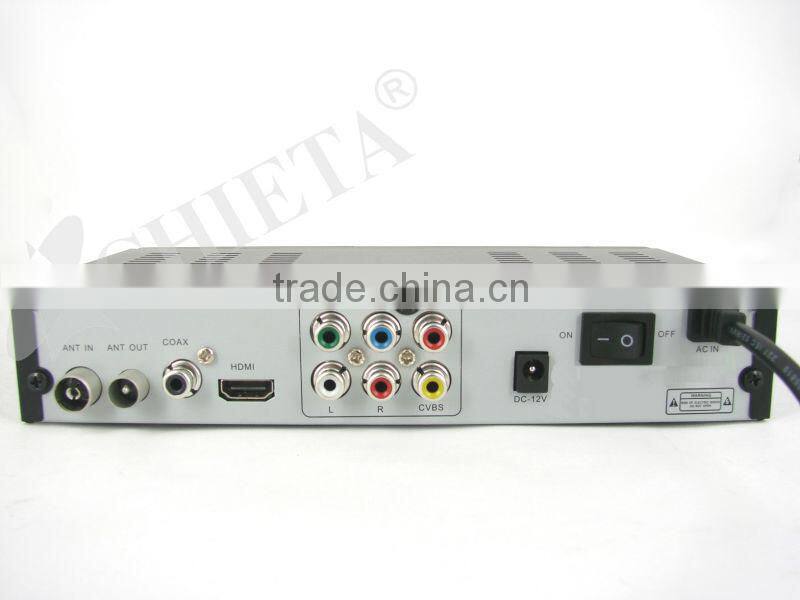

Output Port

HDMI(V1.3C),YPbPr,CVBS

6.Audio Decode

Decode Format

MPEG-1,MPEG-2 (Layer I/II),MP3

Audio output

S/PDF(Coaxial),RCAX2(L/R)

7.AV Output

Video Bandwidth

5.5MHz(-3dB)

Video Impedance

75Ω

Video Voltage Level

1.0 Vp-p

Audio Freq. Range

20~20KHz

Audio Impedance

600Ω

Audio Voltage Level

2V rms(5.6Vp-p)
