Home > Products > New Products > HD Digital DVB-T2 MPEG4 Terrestrial TV Decoder

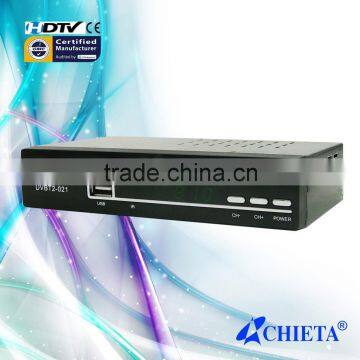

HD Digital DVB-T2 MPEG4 Terrestrial TV Decoder
USD $1 - $15
/ Piece
1000 Pieces(Min. Order)
- Zhuhai/Shenzhen/Guangzhou
- T/T Credit Card
You May Like
-
HD Digital Free TV Set Top Box DVB-T2 Terrestrial TV Receiver
-
VR Virtual Reality 3D Glasses II for Smart Phone
-
VR Box Google Cardboard Virtual Reality 3D Glasses for Smart Phone
-
VR Box Virtual Reality 3D Glasses II for Smart Phone
-
VR Virtual Reality 3D Glasses for Smart Phone Google Cardboard
-
VR Glasses Virtual Reality 3D Box for Smart Phone Adjustable
Product Details
Place of Origin | Guangdong, China | Brand Name | Chieta | |
Model Number | DVB-T2-021 |
Product Description
Feature
1.Fully compliant with DVB-T2
2.Compact size,save the space
3.Full 1080p definition
4.USB+ 3AVS+ HDMI interface
HD Digital DVB-T2 MPEG4 Terrestrial TV Decoder
Product Description
OSD Menu View
Specification Detail
Decoder | 1. 1MPEG2 ISO/IEC 13818-2 MP@ML, |
2. H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL | |
Display Resolution | 1920×1080,1280×720,720×480 (i&p) |
Supported Videos | .avi, .mpg, .dat, .vob, .div, .mov, .mkv, .wmv, .flv, .ts |
Supported Picture | .jpg, .png, .bmp, .motion jpg |
Supported Audio | .wma, .mp3, .wav, .aac, .ogg |
Decoder | MPEG-1 layerI/II,PCM downmix,IEC958 SPDIF |
Mode | LEFT/RIGHT/STEREO/MONO |
Frequency | 32KHz,44.1KHz,48KHz |
Response | 20HZ~20KHZ +/-2Db |
Demultiplexer | MPEG2 ISO/IEC 13818-1 |
Input Bit Rate | Max 100Mbit/s |
Video Bandwidth | SD:5.0MHz(-3dB),HD:30MHz(-3dB) |
Video Impedance | 75Ω |
Video Voltage Level | 1.0 Vp-p |
Audio Freq. Range | 20~20KHz |
Audio Impedance | 600Ω |
Audio Voltage Level | 2V rms(5.6Vp-p) |
Input impedance | 75Ω |
ANT Loop-Through | 51MHz~858MHz full Band loop through |
Input Frequency | 177.5~227.5MHz;474~858MHz; |
Input Level Range | 64QAM:-78.5dBm~-8.75dBm;16QAM:-84.1dBm~-8.75dBm;QPSK:-90.3dBm~-8.75dBm |
Power input voltage | DC5V, 50Hz/60Hz |
Power Consumption | Max 12W |
Humidity | <95% |
Operation Temperature | 0°C~40°C |
Packaging & Shipping
Unit Packing Size | PCS/ Carton |
190*180*45mm | 20 pcs |
Carton CBM (0.03m3) | QTY per Container |
41*30*33 cm | 20GP: 12100pcs |
Box Type | 40GP: 27000pcs |
Color/ Neutral | 40HQ: 33000pcs |
Unit Weight: | Carton Weight: |
N/A | N/A |
