Home > Products > Hydraulic Cone Crusher > Great Wall Cone Crusher Information

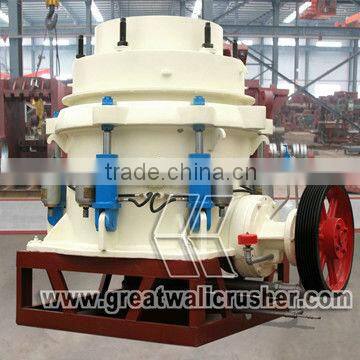

Great Wall Cone Crusher Information

FOB Price

US$ 15,293.98 - 458,995.98 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cone Crusher
Application	Mining,Building Material,Metallurgy,Chemical Industry.	Motor Type	AC Motor
Power(W)	30000-280000	Capacity(t/h)	5-800
Place of Origin	Henan, China	Brand Name	Great Wall
Model Number	PY/CZS/HCC Series Cone Crusher	Dimension(LWH)	223413701675~462233024470 (mm)
Weight	5-81.4 (t)	Certification	ISO9001:2008
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Great Wall Cone Crusher Information
1High capacity.
2Long work life.
3Easy maintenance.
4CQCISO9001:2008.

Cone Crusher Series

"Great Wall Make Great Machine"

Different Colors&Packages are available

Spring Cone Crusher

CZS Cone Crusher

HCC Hydraulic Cone Crusher

ISO9001:2008 Approved,For test report details,pls contact "GreatWall"

Spring Cone Crusher

Main Specifications

Model	Max. Feeding Sizes (mm)	Adjustable Range of Output size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PYB600	65	12-25	10-25	30	5	2234×1370×1675
PYD600	35	3-13	5-20	30	5.5	2234×1370×1675
PYB900	115	15-50	50-90	55	11.2	2692×1640×2350
PYZ900	60	5-20	20-65	55	11.2	2692×1640×2350
PYD900	45	3-13	15-50	55	11.3	2692×1640×2350
PYB1200	145	20-50	110-168	110	24.7	2790×1878×2844
PYZ1200	100	8-25	42-135	110	25	2790×1878×2844
PYD1200	50	3-15	18-105	110	25.6	2790×1878×2844
PYB1750	215	25-60	280-480	160	50.3	3910×2894×3809
PYZ1750	185	10-30	115-320	160	50.3	3910×2894×3809
PYD1750	85	5-15	75-230	160	50.4	3910×2894×3809
PYB2200	300	30-60	490-800	260/280	80	4622×3302×4470
PYZ2200	230	10-30	200-580	260/280	80	4622×3302×4470
PYD2200	100	5-15	120-340	260/280	81.4	4622×3302×4470

CZS Cone Crusher

Main Specification

Model	Chamber Size	Max Feeding Sizes(mm)	Adjusting Range of Output Size(mm)	Capacity (t/h)	Motor Power(kw)	Weight (t)	Overall Dimension (mm)
CZS36B	Fine	85	9~22	45~91	75	14.5	2656×1746×2410
	Coarse	150	13-38	59~163
	Extra Coarse	152	25-38	118~163
CZS36D	Fine	35	3~13	27~90		15
	Medium	65	5~16	36~100
	Coarse	85	6~19	59~129
CZS51B	Fine	115	13~31	109~181	160	26.5	2958×2354×3156
	Medium	178	16~38	132~253
	Coarse	205	19~51	172~349
	Extra Coarse	220	25~51	236~358
CZS51D	Fine	54	3~16	36~163		27
	Medium	76	6~16	82~163
	Coarse	89	8~25	109~227
	Extra Coarse	113	16~25	209~236
CZS66B	Fine	178	16~38	181~327	220	51	3941×2954×3771
	Medium	205	22~51	258~417
	Coarse	228	25~64	299~635
	Extra Coarse	313	38~64	431~645
CZS66D	Fine	60	5~13	90~209		52
	Medium	76	6~19	136~281
	Coarse	113	10~25	190~336
	Extra Coarse	125	13~25	253~336
CZS84B	Fine	236	19~38	381~726	315	90	4613×3251×4732
	Medium	284	25~51	608~998
	Coarse	314	31~64	789~1270
	Extra Coarse	391	38~64	880~1361
CZS84D	Fine	89	5~16	190~408		92
	Medium	113	10~19	354~508
	Coarse	151	13~25	454~599
	Extra Coarse	172	16~25	508~653

Hydraulic Cone Crusher

Main Specifications

Model	Chamber Size	Max Feeding Sizes(mm)	Adjusting Range of Output Size(mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
HCC36B	Fine	85	9~22	46~94	75	14.2	2656×1746×2241
	Coarse	150	13-38	61~168
	Extra Coarse	152	25-38	122~168
HCC36D	Fine	35	3~13	28~93		14.7
	Medium	65	5~16	37~103
	Coarse	85	6~19	61~133
HCC51B	Fine	115	13~31	112~189	160	25.9	2983×2354×3156
	Medium	178	16~38	136~261
	Coarse	205	19~51	177~359
	Extra Coarse	220	25~51	243~369
HCC51D	Fine	54	3~16	37~168		26.4
	Medium	76	6~16	84~168
	Coarse	89	8~25	112~234
	Extra Coarse	113	16~25	215~243
HCC66B	Fine	178	16~38	186~337	220	50	3911×2870×3771
	Medium	205	22~51	266~430
	Coarse	228	25~64	308~654
	Extra Coarse	313	38~64	444~664
HCC66D	Fine	60	5~13	93~215		51
	Medium	76	6~19	140~289
	Coarse	113	10~25	196~346
	Extra Coarse	125	13~25	261~346
HCC84B	Fine	236	19~38	392~748	315	88	4613×3302×4638
	Medium	284	25~51	626~1028
	Coarse	314	31~64	813~1308
	Extra Coarse	391	38~64	906~1402
HCC84D	Fine	89	5~16	196~420		90
	Medium	113	10~19	365~523
	Coarse	151	13~25	468~617
	Extra Coarse	172	16~25	523~673

Do not hesitate send us inquiry for details about the Great Wall Cone Crusher .
