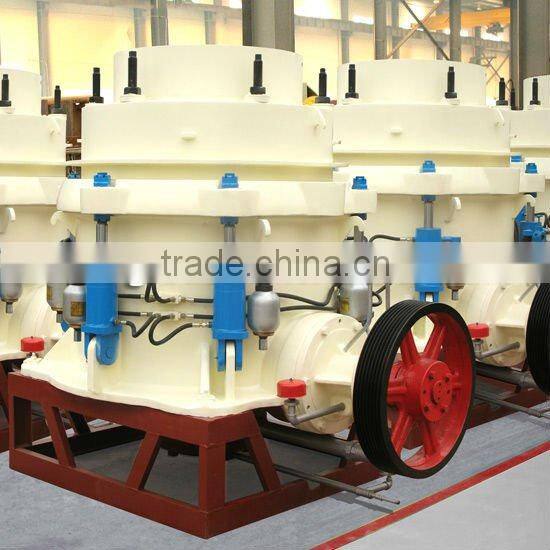

Large Capacity Stone Crusher for Sale
- Shanghai Qingdao Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Cone Crusher | |
| Capacity(t/h) | 28-1402 | Place of Origin | Henan, China | |
| Brand Name | Great Wall | Model Number | HCC |
Product Description
Specifications
1.high efficiency2.easy maintenance
3.long service life
4.low power consumption
CQC: ISO9001:2008
Stone Crusher Usage and Application
The large cappacity stone crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. It can crush materials with middle and high hardness such as, ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. It is popular to be used in the high automatic crushing line which has strict requirement for finished products' shape and ratio.
Stone Crusher Features
1.The crushing chamber is special designed according to particles-layer- pressure principle.
2. With hydraulic protection and hydraulic chamber cleaning, the machine is high-automatic.
3. The mantle and bowl liner are made by high abrasion materials.
4. It is adjusted by hydraulic device and lubricated by diluted oil.
Stone Crusher Main Specifications
Model | Chamber Size | Max Feeding Sizes(mm) | Adjusting Range of Output Size(mm) | Capacity | Motor Power (kw) | Weight (t) | Overall Dimension |
HCC36B | Fine | 85 | 9~22 | 46~94 | 75 | 14.2 | 2656×1746×2241 |
Coarse | 150 | 13-38 | 61~168 | ||||
Extra Coarse | 152 | 25-38 | 122~168 | ||||
HCC36D | Fine | 35 | 3~13 | 28~93 | 14.7 | ||
Medium | 65 | 5~16 | 37~103 | ||||
Coarse | 85 | 6~19 | 61~133 | ||||
HCC51B | Fine | 115 | 13~31 | 112~189 | 160 | 25.9 | 2983×2354×3156 |
Medium | 178 | 16~38 | 136~261 | ||||
Coarse | 205 | 19~51 | 177~359 | ||||
Extra Coarse | 220 | 25~51 | 243~369 | ||||
HCC51D | Fine | 54 | 3~16 | 37~168 | 26.4 | ||
Medium | 76 | 6~16 | 84~168 | ||||
Coarse | 89 | 8~25 | 112~234 | ||||
Extra Coarse | 113 | 16~25 | 215~243 | ||||
HCC66B | Fine | 178 | 16~38 | 186~337 | 220 | 50 | 3911×2870×3771 |
Medium | 205 | 22~51 | 266~430 | ||||
Coarse | 228 | 25~64 | 308~654 | ||||
Extra Coarse | 313 | 38~64 | 444~664 | ||||
HCC66D | Fine | 60 | 5~13 | 93~215 | 51 | ||
Medium | 76 | 6~19 | 140~289 | ||||
Coarse | 113 | 10~25 | 196~346 | ||||
Extra Coarse | 125 | 13~25 | 261~346 | ||||
HCC84B | Fine | 236 | 19~38 | 392~748 | 315 | 88 | 4613×3302×4638 |
Medium | 284 | 25~51 | 626~1028 | ||||
Coarse | 314 | 31~64 | 813~1308 | ||||
Extra Coarse | 391 | 38~64 | 906~1402 | ||||
HCC84D | Fine | 89 | 5~16 | 196~420 | 90 | ||
Medium | 113 | 10~19 | 365~523 | ||||
Coarse | 151 | 13~25 | 468~617 | ||||
Extra Coarse | 172 | 16~25 | 523~673 |
