Home > Products > TACT SWITCH > 4.5*4.5 Tact switch

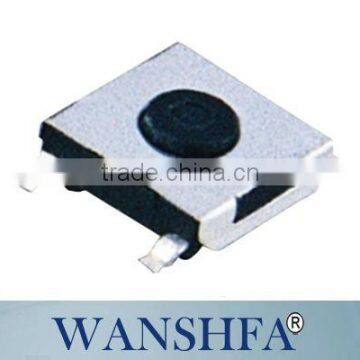

4.5*4.5 Tact switch
Negotiable
/ Piece
10000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WANSHFA | |
| Model Number | KFC-002 | Protection Level | IP65 | |
| Max. Current | 50ma | Max. Voltage | 12v dc |
Product Description
Specifications
4.5*4.5 Tact switch1.4.5*4.5 type,50mA,12V DC
2.250AC for 1 min
3.180gf, 250gf
4.ISO9001, CQC,CCC
4.5*4.5 Tact switch
Feature:
1. Snap-in type tact switch, which can be directly mounted on PC board.
2. Available with anti-ESD ground terminal.
3. Standard knobs are available.
Application:
Opearting switches in all types of electronic equipmeny such as audio devices, office devices, communication devices, measuring instruments, TVs, video recorders, automotive sets,etc.
Specification:
| Rating | 50mA.12V DC |
| Insulation resistance | 100mΩ min.100V DC |
| Dielectric strength | 250V AC for 1min. |
| Contact resistance | 100mΩ max |
| Operating temperature range | -30°C to +85°C |
| Lifetime | A:300,000 cycles B:200,000 cycles C:100,000 cycles |
| Operating force | A:90 gf B:180 gf C:250 gf |
| Travel | 0.25±0.1mm |
Diagram:
