Mini Tact Switch
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WANSHFA | |
| Model Number | KFC-001 | Max. Current | 50mA | |
| Max. Voltage | 12V |
Product Description
Specifications
1.Certificate:CE,CQC,ROHS2.OEM,ODM supply
3.Professional Manufacture

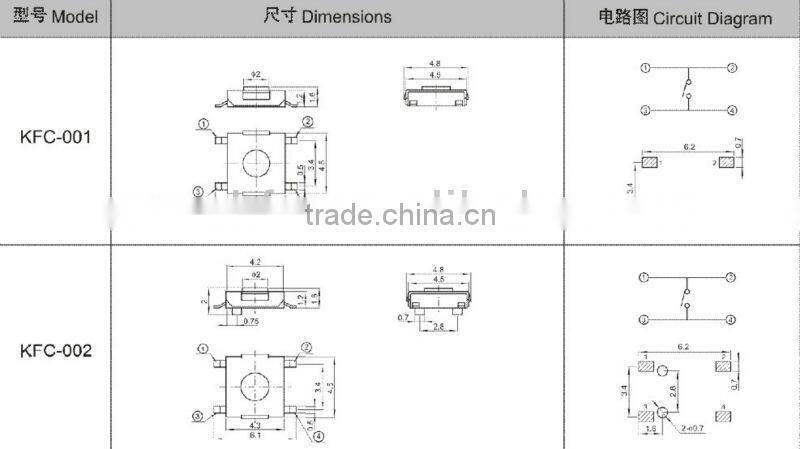

ITEM:KFC-001 TACT SWITCH
Features:
1.Highly reliable contacts sealing structure
2.Reflow solderable
3.packaged with a 12mm wide embossed taping
Applications:
Operating switches in all types of electronic equipment such as audio apparatus,office equipment,communication apparatus,measuring instruments,TV Sets,VCRs,etc
Specification:
Items | Standard |
Rating | 50mA 12V DC |
Insulation resistance | 100MΩ min 100V DC |
Dielectric strength | 250V AC for 1 min |
Contact resistance | 100mΩ max |
Operating temperature range | -30°C to + 85°C |
Lifetime | B:100000cycles C:50000 cycles |
Operating time | B:180gf C:250gf |
Travel | 0.15 ± 0.05mm |
