Home > Products > TACT SWITCH > KFC-1101 Tact Switch
KFC-1101 Tact Switch
- Ningbo or Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WANSHFA | |
| Model Number | KFC-1101 | Max. Current | 50MA | |
| Max. Voltage | 12V |
Product Description
Specifications
1.KFC-1101 tact switch2.good quality tact switch
3.OEM ODM tact switch
4.15 years' experience for tact switch
5.CE,ISO
KFC-1101 tact switch
L: 6
W: 6
H: 4.3|4.5|5.0|5.5
tact switch specification
1.Rating: 50mA 12VDC
2.Contact Resistance : 50mΩ max(initial)
3.Insulation Resistance: 100MΩ(minDC 250V)
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life:100,000cycles
6.Environment temperature: -25°C~+105°C
7.Operating Force: 180/250(±30gf)
tact switch Features
1.Highly reliable contacts sealing structure
2.Reflow solderable
3.Packaged with a 16mm wide embossed taping
tact switch Applications
operating switches in all types of electronic equipment such as audio apparatus,office equipment,communication apparatus,measuring instrumnets,TV sets,VCRs,etc.

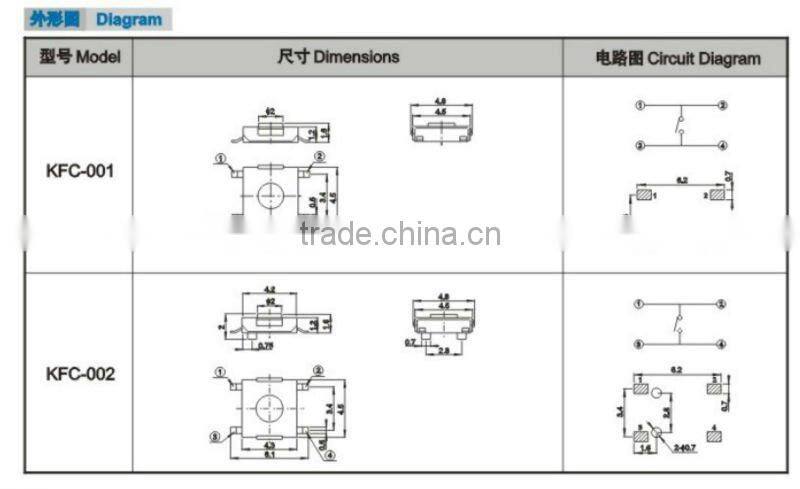

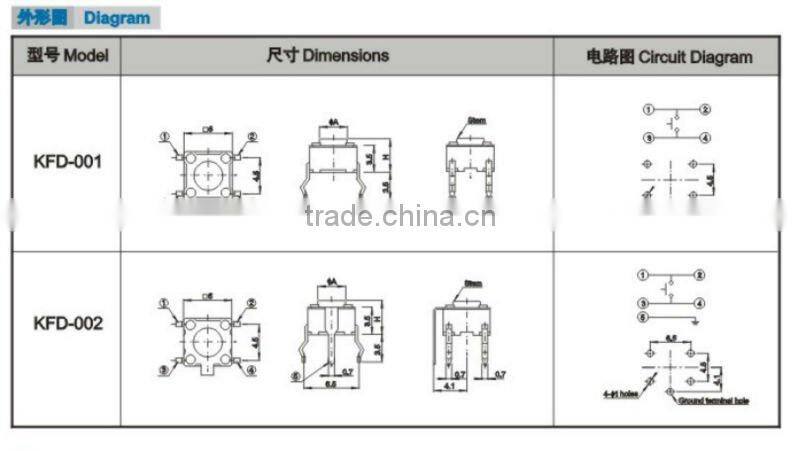

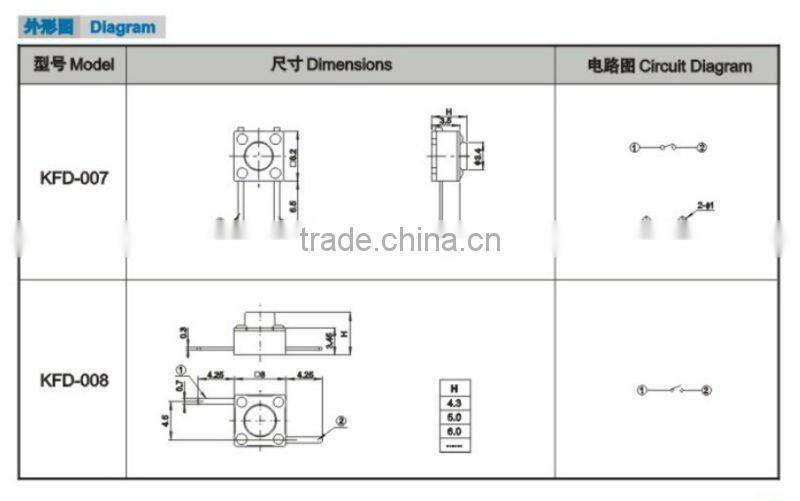

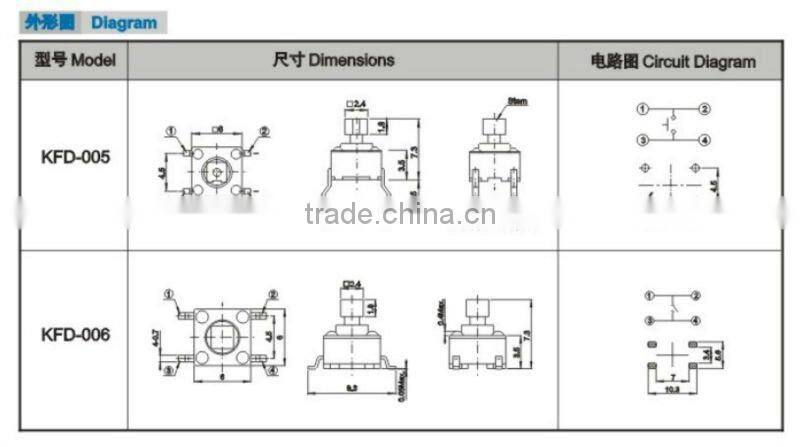

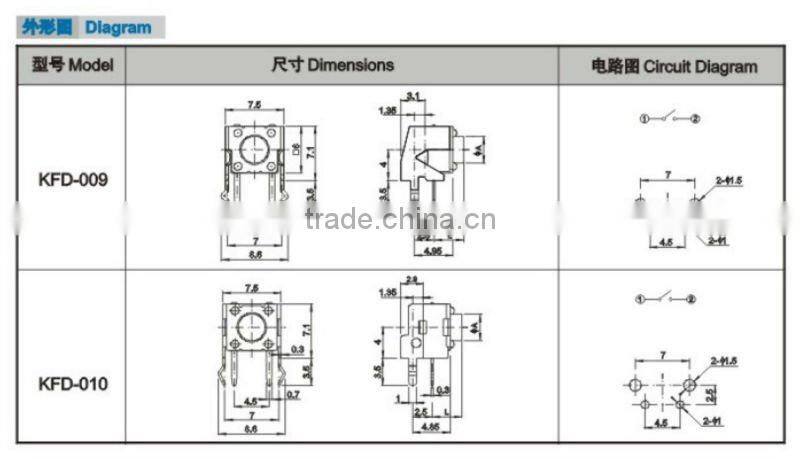

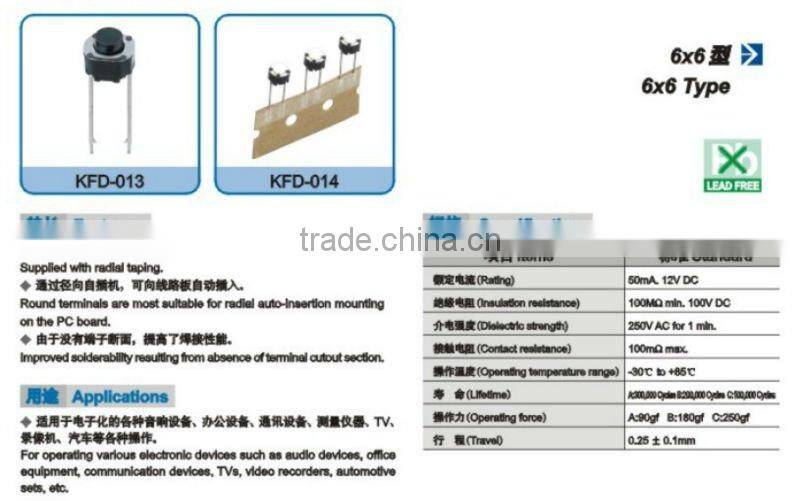

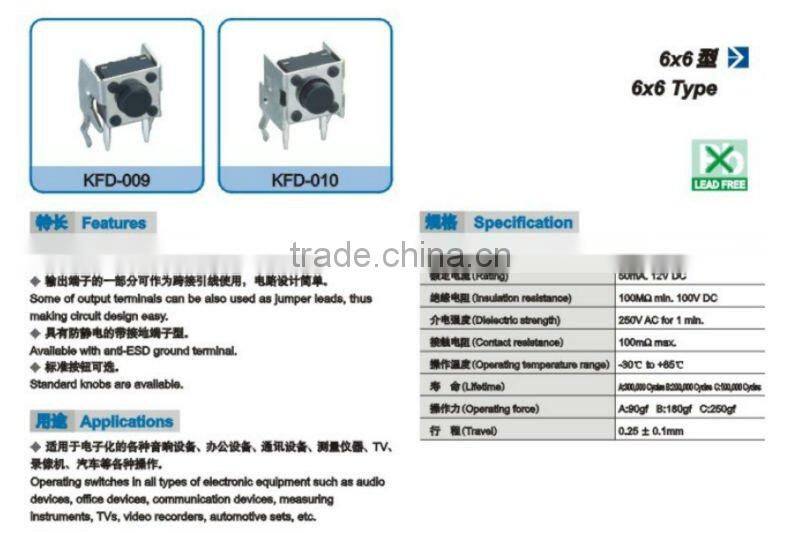

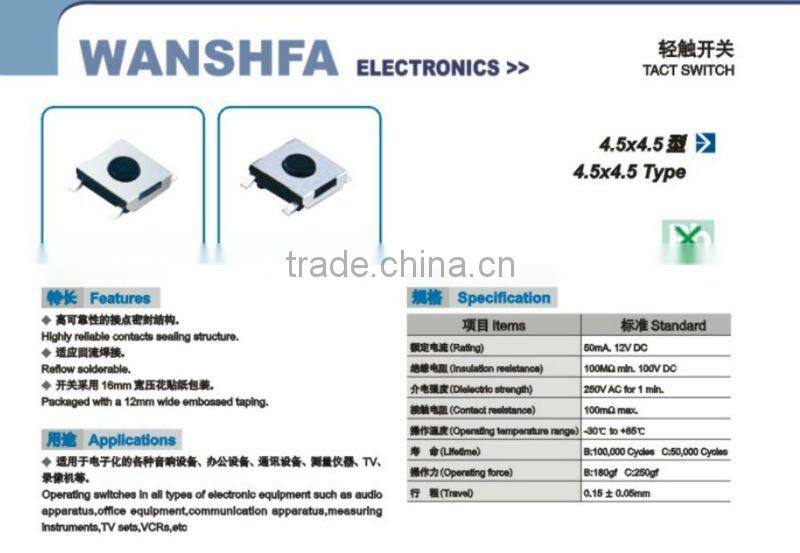

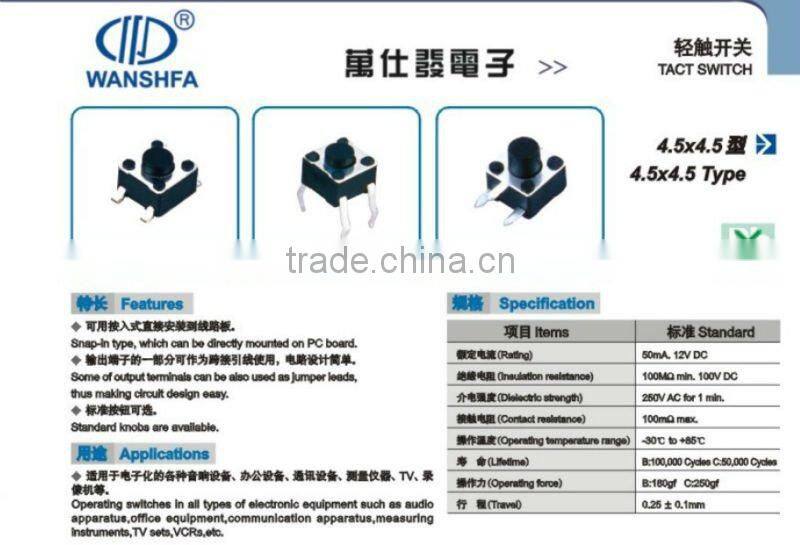

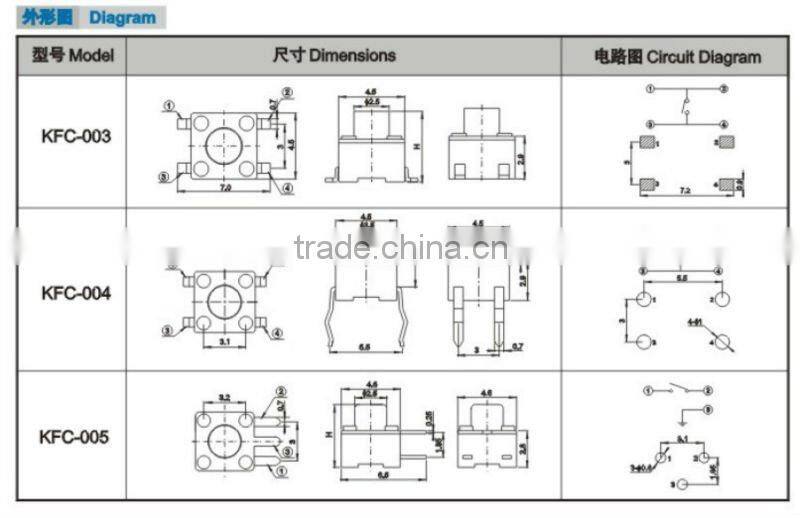

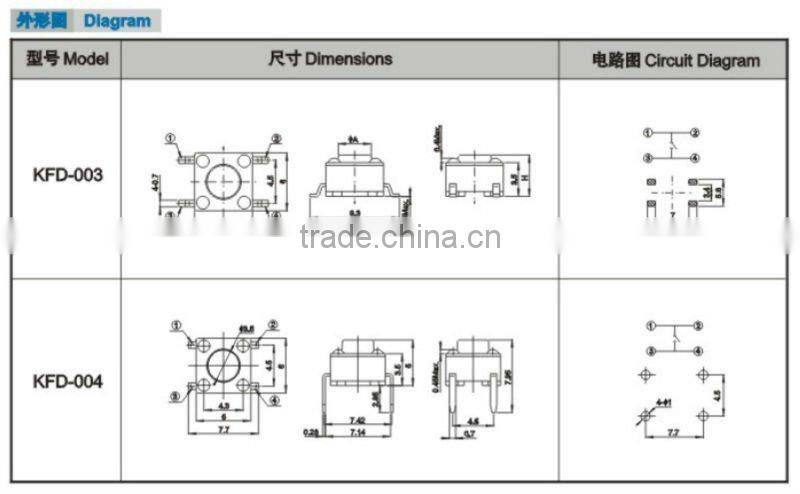

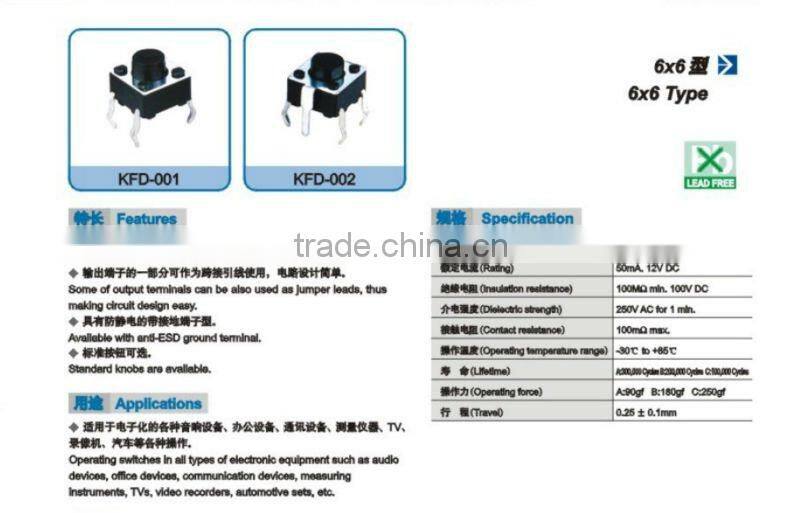

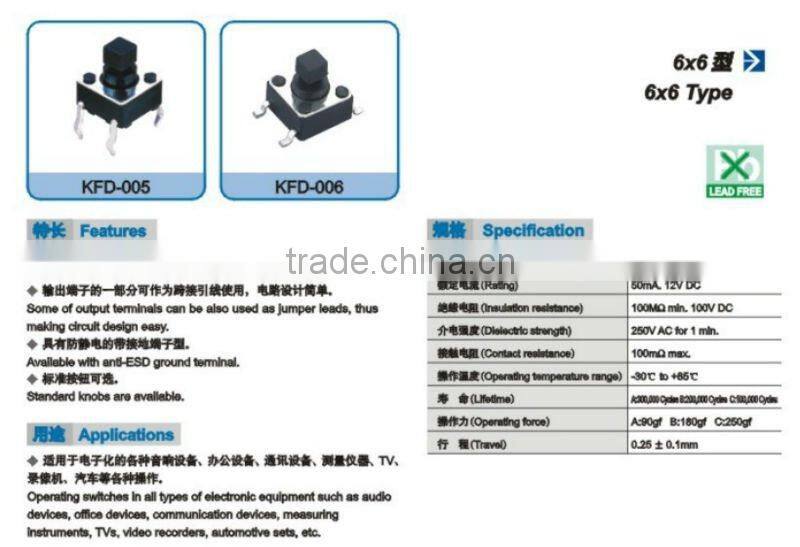

Catalogue for your reference
