KCD1-104 PCB rocker switch
- 500000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Wanshfa | |
| Model Number | KCD1-104N | Max. Current | 15A | |
| Max. Voltage | 250V AC | Mechanical Life | 10000cycles |
Product Description
Specifications
KCD1-104 PCB rocker switch1.Switch control:on off
2.Switch cap material:PC fireproof
3.OEM
Item: KCD1-104 PCB rocker switch
Application:
220V AC Illuminated PCB rocker switch is a switch which consists of a piece which rocks back and forth in response to pressure to open and close a circuit. Rocker switches are commonly used as light switches.
Specifications:
Rating | 6A 250VAC/10A 125VAC T85 |
| 10A 250VAC T85 | |
| 10A 250VAC 1/2HP 250VAC | |
| 15A 125VAC 1/3HP 125VAC | |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Withstand voltage | ≥1500VAC/1min |
| Switching life | ≥10000cycles |
Material of rocker switch parts
Base Plastic --- Nylon 66
Button Plastic --- PC fireproof
Terminal surface treatment --- Tin plating
Contact --- Agcdo/Cu
Spring --- Tungsten steel
Waterproof Cap --- PVC (It has waterproof cap if required)
Mount --- Snap in / PCB
Usage:
PCB illumiated rocker switches/boat switches are widely used in the drinking water machine, running machine, computer speakers, battery car, motorcycle, ion television, coffee pot, socket, massage machine, mainly household appliances.
Outlookings:

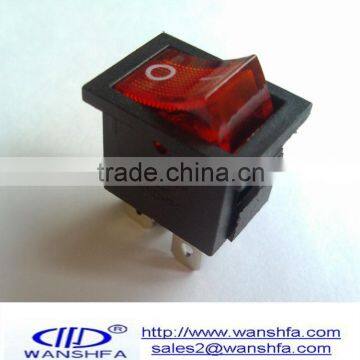

Product photos:
About us:
15years professional manufactuer experience, OEM,ODM service supply, export many countries in the world.
Free contact:
Contact Us
- Yueqing Wanshfa Electronics Co., Ltd.
- Contact nameDevin Ling Chat Now
- Phone86-577-62981866
- AddressNO.1 Xingye Road Dagang Beibaixiang Yueqing, Wenzhou, Zhejiang
