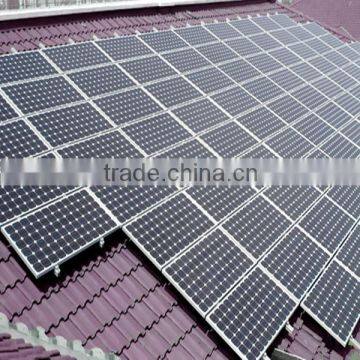

Solar tile roof mounting structure

Installation Site:

Open ground

Single System Weight:

20~25 kg

Support Rail:

Extruded aluminum

-50°~100°

Wind Load:

130mph(60m/s)

Snow Load:

30psf(1.4kN/m²⁾

Applicable Module:

Framed

Module Orientation:

Landscape or portrait

Code Compliance:

AS/NZS 1170;

Material:

Aluminum

Warranty:

10 years on material

Lightweight

Aluminum Density:2.7kg/dm³

Iron density:7.9 kg/dm³

Easy to shape

Available different molds, easy access via an extrusion process of aluminum extrusion products of different cross-sectional shapes.

Anti-corrosion

Place the aluminum in air to form a dense aluminum oxide in the surface protective layer can prevent the progress of aluminum Oxidation step.

Easy processing

Aluminum can easily pass data, drilling, punching, folding and other processing into the desired specifications. The process of energy consumption is significantly lower than steel.

Low temperature

Common steel welding area, especially in brittle at low temperatures, while the strength of aluminum is actually increased.

Balance voltage

Aluminum has excellent electrical conductivity, it is possible to conduct a better PV mounting system for various reasons weak current generated.

Anti-corrosion

Steel frame and aluminum solar panel frame contact, aluminum frame is to avoid this phenomenon.

Easy recovery

After re-forming in the recycling of aluminum consumes only original profiles from aluminum ore to process 5% of energy.
