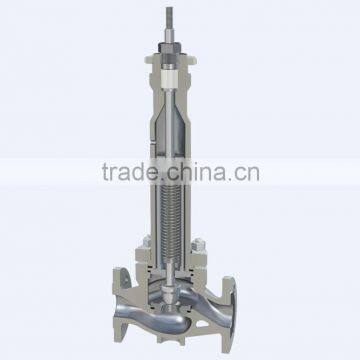

Bellows control valve
US$ 1,000 - 1,500
/ Set
1 Set(Min. Order)
- FOB SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Low Pressure | Power | Pneumatic | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Gas | Place of Origin | Jiangsu, China | |
| Model Number | HTSW | Brand Name | CEPAI | |
| Application | General |
Product Description
Technical specifications
| Body type: | Cage type control valve |
| Size: | DN15~DN250 (3/4" to 10") |
| Pressure Class: | PN16,PN40,PN64 |
| ANSI 150,ANSI300,ANSI600 | |
| Characteristics: | Equal Percentage, Linear, quick open |
| Body Materials: | WCB, LCB, CF8M, |
| CF3M | |
| Trim materials: | 304, 316, 304L, 316L |
| Temp range: | -196°C to +566°C |
| Connection: | Flanged, Socket welding, Butt welding |
| Gland packing: | PTFE, Braided PTFE, Grafoil |
| Leakage: | Class IV (Metal seat, standard), Class V, |
| Class VI (Soft seat, zero leakage) | |
| Actuator: | Pneumatic diaphragm actuator, Piston |
| Positioner: | High Performance Smart positioner (Explosive |
| proof and HART Protocol are available) |
